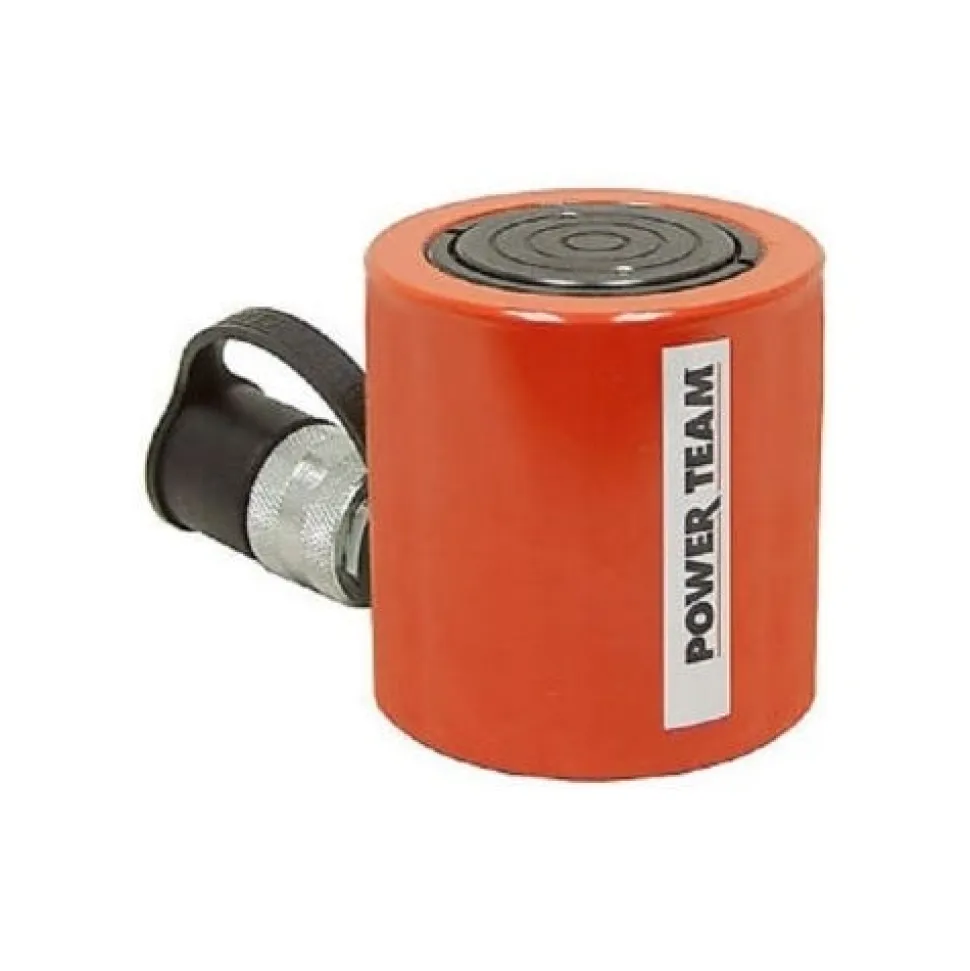

Power Team 20 Ton Hydraulic 6″ Single Acting Cylinder Center Hole RH206

Power Team SPX

Power Team 20 ton hydraulic 6 single acting cylinder center hole RH206

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Basic head can be changed from a tapped hole to plain hole by simply changing insert
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

SPECIFICATIONS:

Stroke length:	6.000″
Piston rod diameter:	2.125″
Series/type:	RT-Series/Center hole
Actuation/return:	Single acting/Spring return
Cylinder capacity:	20 Ton
Oil capacity:	28.350″³
Retracted height:	12.125″
Extended height:	18.125″
Effective area:	4.720″²
Tons at 10;000 PSI:	23.60 Ton
Max pressure:	10;000 PSI
Bore size:	2.452″
Base to port:	1.000″
Outside diameter:	3.875″
Center hole diameter:	1.078″
Collar thread:	3/8-16×3-1/4
Collar thread length:	1.500″
Insert thread size:	1-9/16-16
Material:	Aluminum
Weight:	30.20lbs

“
