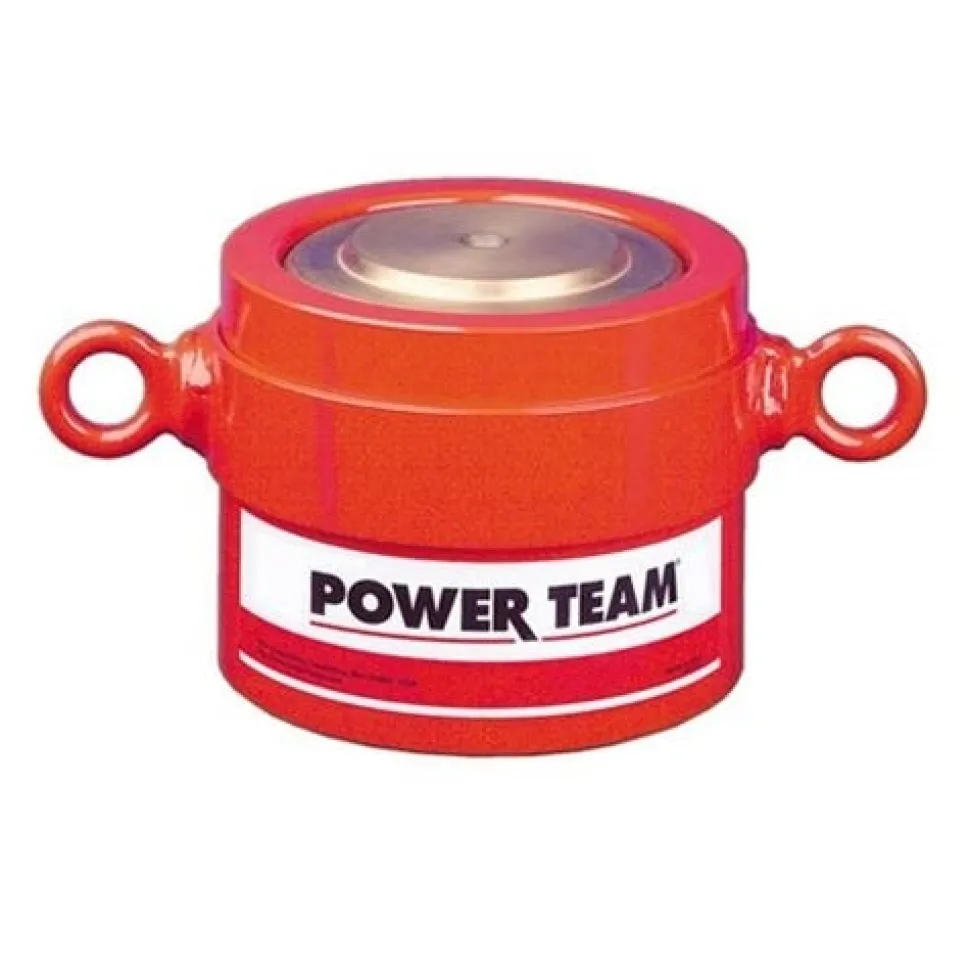

Power Team 150 Ton Hydraulic 6" Single-Acting Locking Collar Cylinder R1506L

Power Team 150 Ton Hydraulic 6″ Single-Acting Locking Collar Cylinder R1506L

Original price was: $4,802.00.Current price is: $126.89.

SKU: SKU9vK6AoExZC Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
POSITIVE MECHANICAL LOCK TO SUPPORT LOAD.
Supports lifted load for extended periods of time with hydraulic pressure released.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
All cylinders feature coated pistons to resist corrosion and abrasion.
Order No. : R1506L
Cyl. Cap. (tons.): 150
Stroke (in.) : 6
Oil Cap. (cu. in.): 184.1
Bore Dia. (in.): 6 1/4
Cylinder Effective Area (sq. in.) 30.68
Internal Pressure at Cap. (psi) 9;778
Tons at 10000 (psi): 153.4
Weight (lbs.) : 177
Retracted Ht. (in.): 12 1/8
Extended Ht. (in.): 18 1/8
Outside Dia. (in.): 8 1/16
Base to Port (in.): 1 1/4
Piston Rod Dia. (in.) 6 1/4
Piston Rod Protrusion (in.): 1/8
Nut Thickness (in.): 1 3/4

Specifications

More Information
OPT SKU	PTR1506L
MPN	R1506L
UPC/GTIN	662536252775
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	6″
Tonnage	150-Ton
Shipping Weight	190.00
