Power Team 150 Ton Hydraulic 6″ Double Acting Cylinder RD1506

• Power Team
• Financing is available – Click here fro details
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

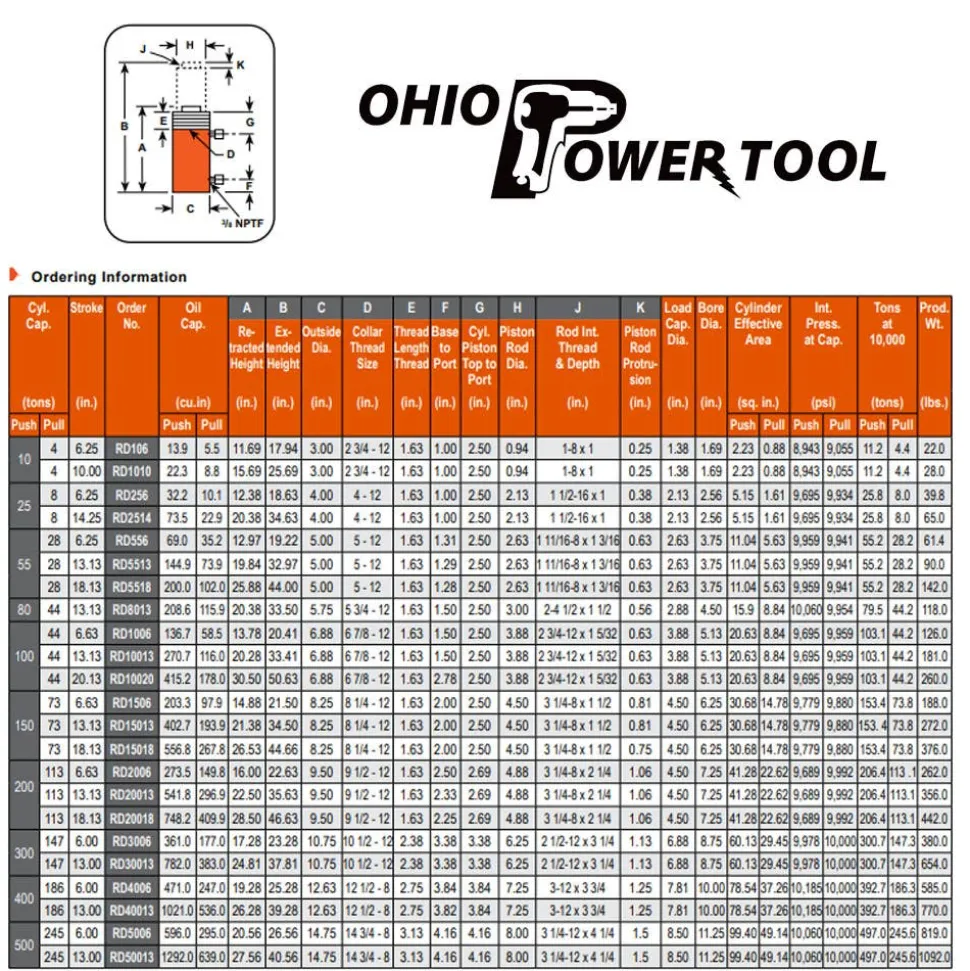

• Order No. : RD1506
• Cyl. Cap. (tons) Push: 150
• Cyl. Cap. (tons) Pull: 73
• Stroke (in.) : 6 5/8
• Oil Capacity (cu.in) Push: 203.3
• Oil Capacity (cu.in) Pull: 97.9
• Load Cap Dia. (in.) : 4 1/2
• Bore Dia. (in.) : 6 1/4
• Cyl. Eff. Area (sq.in.) Push: 30.68
• Cyl. Eff. Area (sq.in.) Pull: 14.78
• Int. Press. at Cap. (psi) Push: 9;779
• Int. Press. at Cap. (psi) Pull: 9;880
• Tons at 10;000 psi Push: 153.4
• Tons at 10;000 psi Pull: 73.8
• Weight (lbs.) : 188
• Ret. Height (in.) : 14 7/8
• Ext. Height (in.) : 21 1/2
• Outside Dia. (in.) : 8 1/4
• Collar Thread Size (in.) : 8 1/4-12
• Thread Length Thread (in.) : 1 5/8
• Base to Port trusion (in.) : 2
• Cylinder Piston Top to Port (in.): 2 1/2
• Piston Rod Dia. Depth (in.) : 4 1/2
• Rod Int. and (in.) : 3 1/4-8×1 1/2
• Piston Rod Protrusion (in.) :13/16

“
