Power Team 15 Ton Hydraulic 12″ Single Acting Cylinder Spring Return C1512C

• Power Team

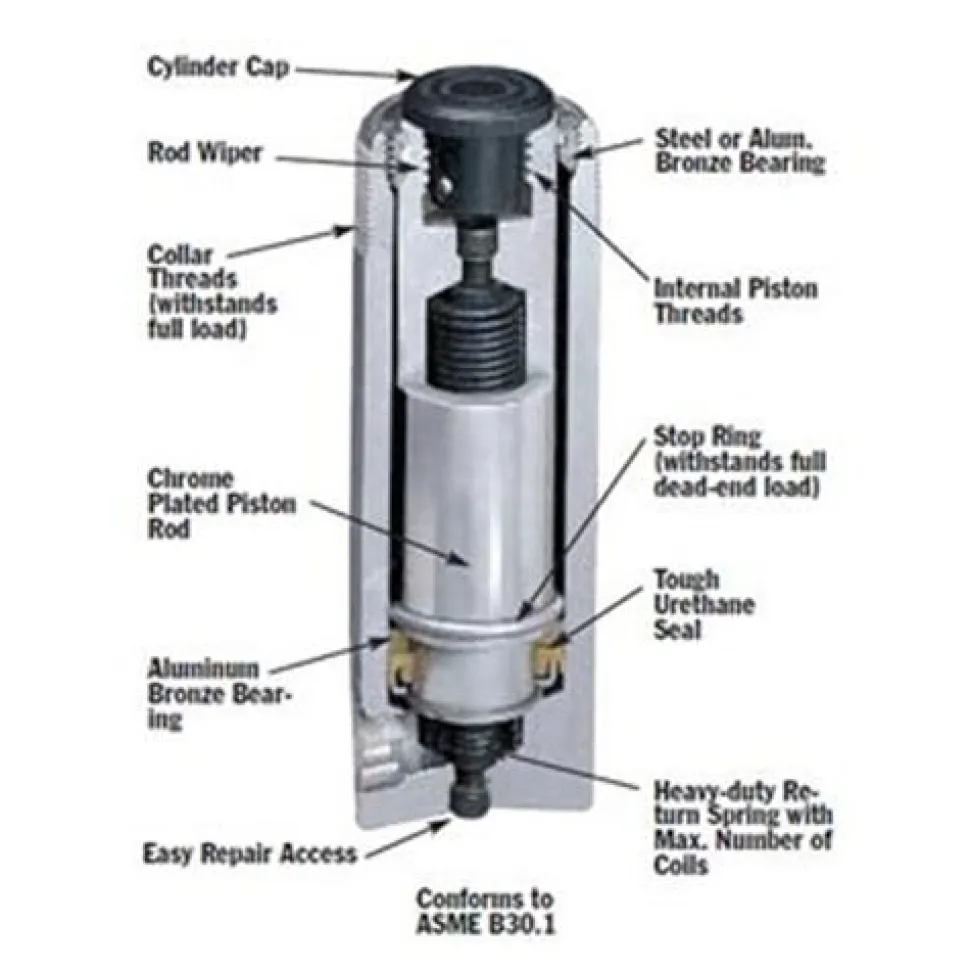

• RUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING
• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 NPTF female half coupler is standard.
• Order No.: C1512C
• Cylinder Capacity (Tons): 15
• Stroke (in.): 12 1/8
• Oil Cap. (cu. In.): 38.1
• Bore Diameter (in.): 2
• Cylinder Effective Area (sq. in): 3.142
• Internal Pressure at Cap. (psi): 9549
• Tons at 10;000 psi (psi): 15.7
• Weight (lbs.): 23.2
• Retracted Height (in.): 16 2/3
• Extended Height (in.): 28 4/5
• Outiside Diameter (in.): 2 3/4
• Collar Thread (in.): 2 3/4-16
• Piston Collar Thread Length (in.): 1 1/8
• Base to Port (in.): 3/4
• Piston Rod Diameter (in.): 1 3/4
• Piston Internal Thread and Depth (in.): 1-8 x 3/4
• Rod Protrusion (in.): 1/4

“
