Power Team 12 Ton Hydraulic 5/16″ Single Acting Cylinder Center Hole RH120

Power Team SPX

Power Team 12 ton hydraulic 5/16 single acting cylinder center hole RH120

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Interchangeable piston head inserts provide versatility of application.
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

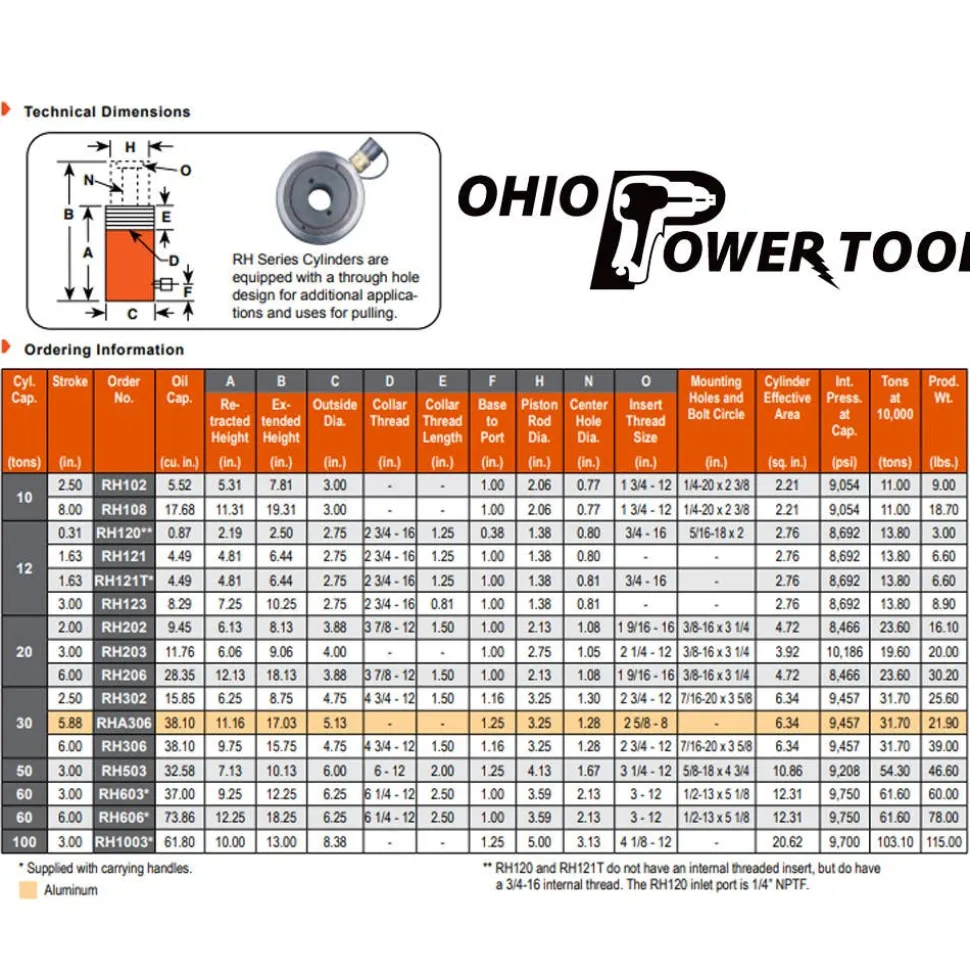

SPECIFICATIONS:

Stroke length:	0.313″
Piston rod diameter:	1.375″
Series/type:	RH-Series/Center hole
Actuation/return:	Single acting/Spring return
Cylinder capacity:	12 Ton
Oil capacity:	8.70″³
Retracted height:	2.188″
Extended height:	2.500″
Effective area:	2.760″²
Tons at 10;000 PSI:	13.80 Ton
Max pressure:	10;000 PSI
Bore size:	1.875″
Base to port:	0.375″
Outside diameter:	2.750″
Center hole diameter:	0.688″
Collar thread:	2-3/4-16
Collar thread length:	1.250″
Insert thread size:	3/4-16
Material:	Aluminum
Weight:	3.00lbs

“
