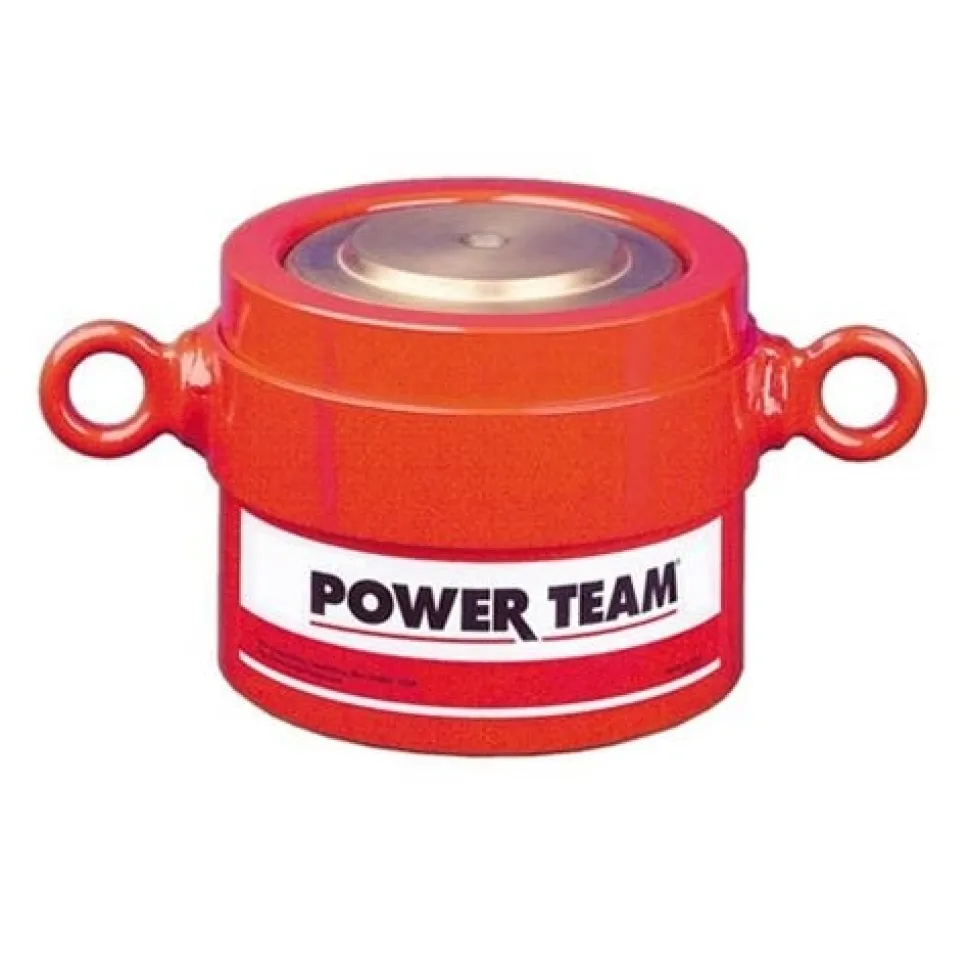

Power Team 100 Ton Hydraulic 6" Single Acting Load Return Cylinder R1006C

Power Team 100 Ton Hydraulic 6″ Single Acting Load Return Cylinder R1006C

Original price was: $2,987.00.Current price is: $126.89.

SKU: SKU2BuwR6wHS6 Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

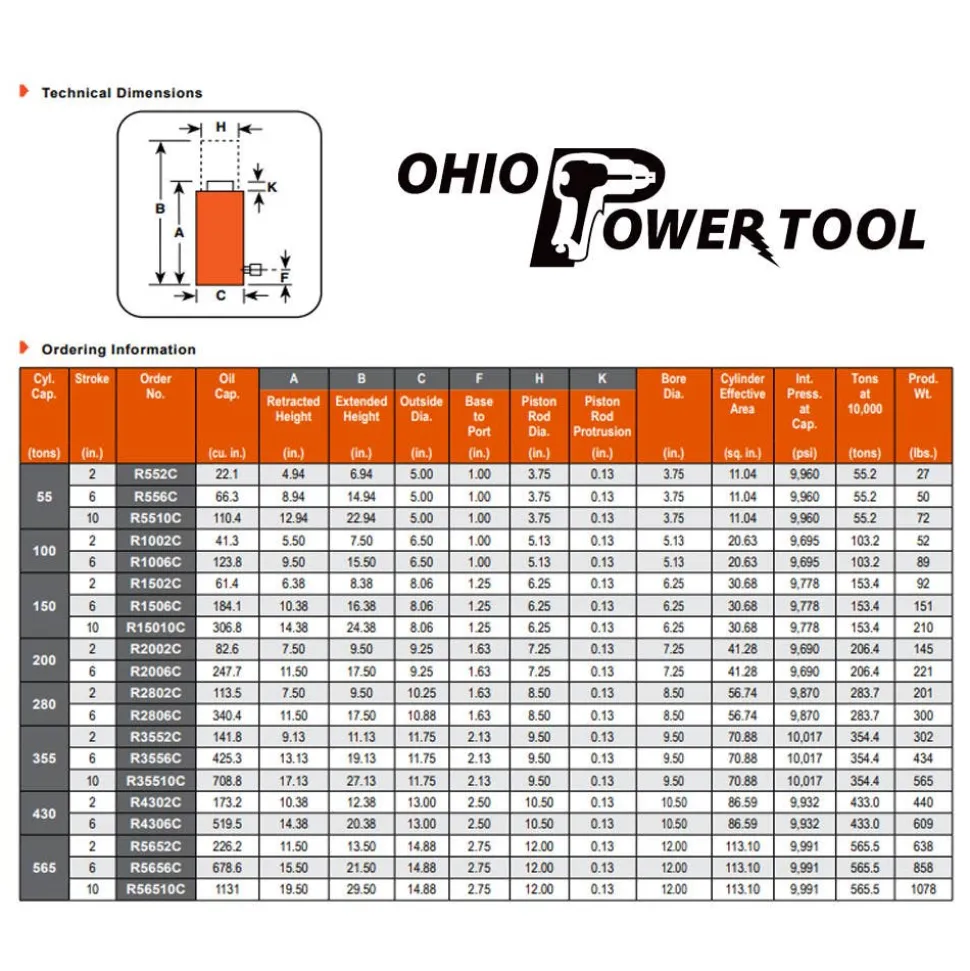

Order No. : R1006C
Cyl. Cap. (tons) : 100
Stroke (in.) : 6
Oil Cap. (cu. in.): 123.8
Bore Dia. (in.): 5 1/8
Cylinder Effective Area (sq. in.) 20.
Internal Pressure at Cap. (psi) 9;695
Tons at 10000 (psi): 103.2
Weight (lbs.) : 89
Retracted Height (in.): 9 1/2
Extended Height (in.): 15 1/2
Outside Dia. (in.): 6 1/2
Base to Port (in.): 1
Piston Rod Dia (in.): 5 1/8
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR1006C
MPN	R1006C
UPC/GTIN	662536455947
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	6″
Tonnage	100-Ton
Shipping Weight	95.00
