Power Team 100 Ton Hydraulic 10-1/8″ Double Acting Cylinder Center Hole RH10010

Power Team SPX

Power Team 100 ton hydraulic 10-1/8 double acting cylinder center hole RH10010

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

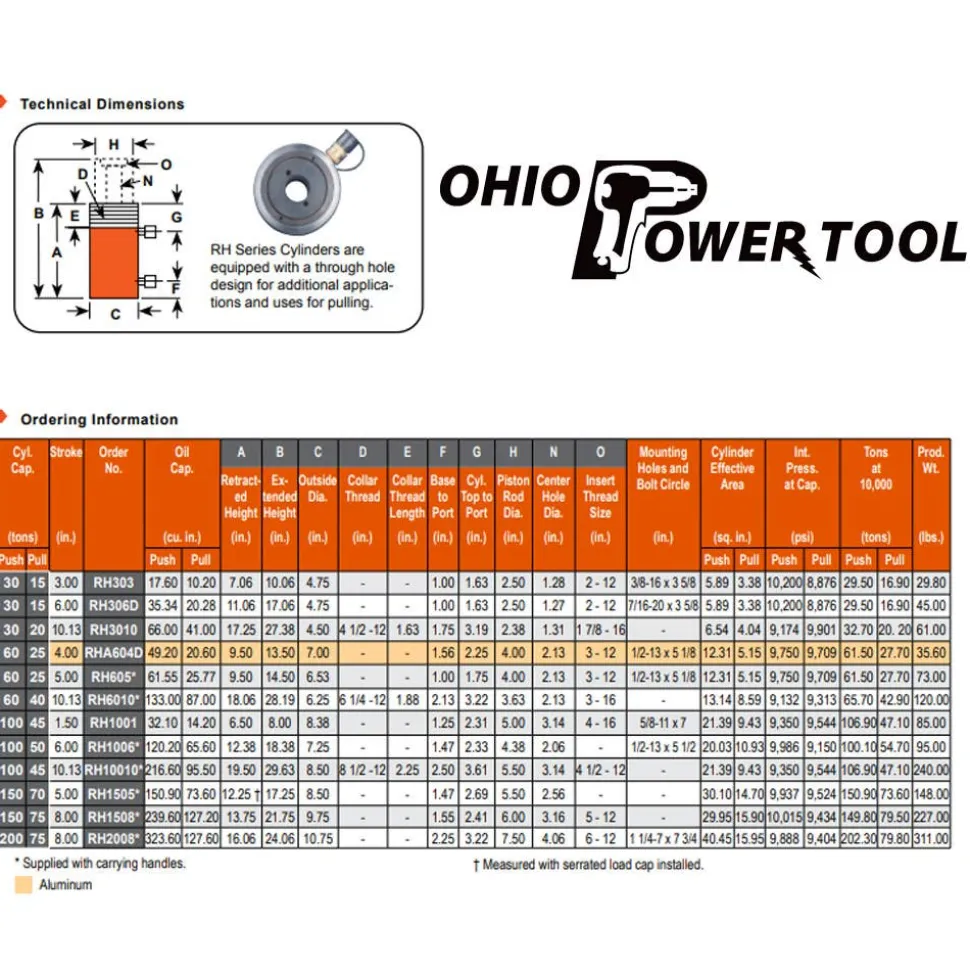

SPECIFICATIONS:

Stroke length:	10.125″
Piston rod diameter:	5.500″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	100 Ton
Pull capacity:	45 Ton
Oil capacity:	216.600″³
Pull/return oil capacity:	95.500³
Retracted height:	19.500″
Extended height:	29.625″
Effective area:	21.3390″²
Pull cylindrical effective area:	9.430″²
Tons at 10;000 PSI:	106.90 Ton
Pull tons at 10;000 PSI:	47.10 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;544 PSI
Bore size:	5.220″
Base to port:	2.500″
Outside diamter:	8.500″
Center hole diameter:	3.141″
Collar thread:	8-1/2-12
Insert thread size:	4-1/2-12
Cylinder top to diameter:	3.609″
Material:	Steel
Weight:	240.00lbs

“
