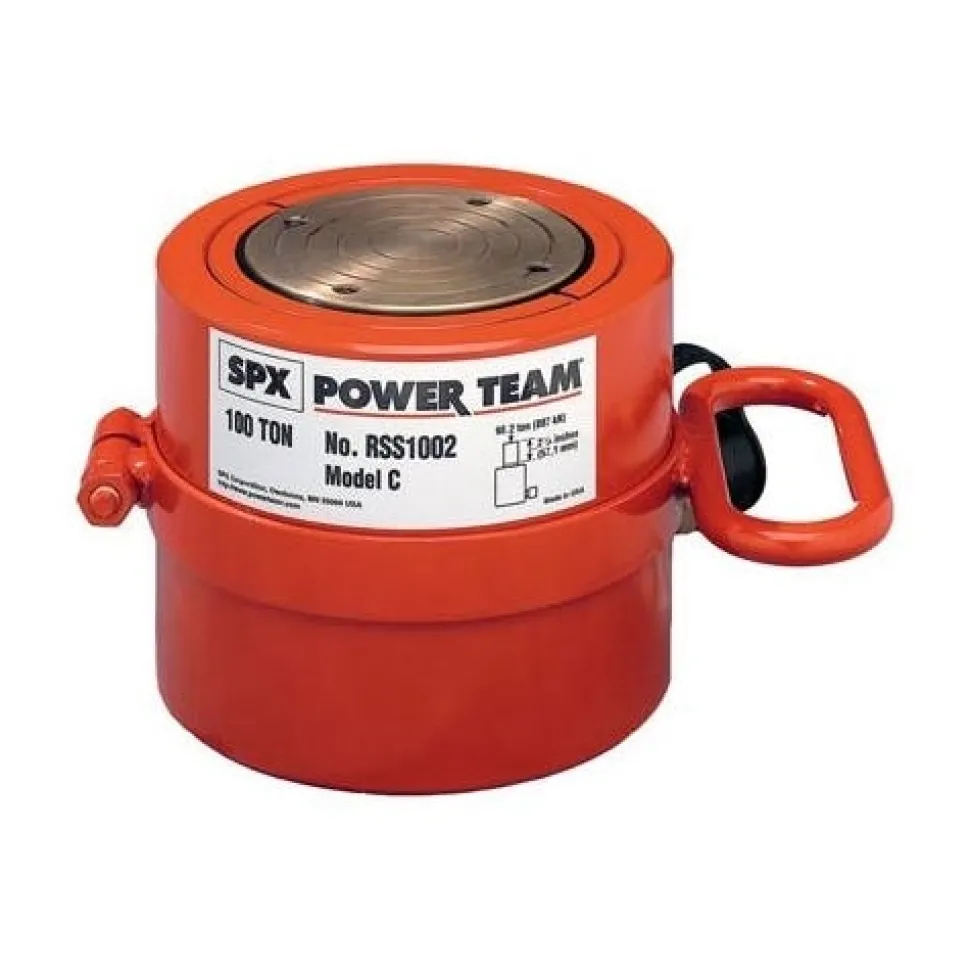

Power Team 100 Ton Hydraulic 1-1/2″ Single Acting Cylinder Spring Return Shorty RSS1002D

$120.99

SKU: SKUYzdQ6v1Gqr Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No. : RLS750S
Cyl. Cap. (tons) : 100
Stroke (in.) : 1 1/2
Oil Cap. (cu. in.) : 29.4/12.9
Bore Dia. (in.) : 5
Cylinder Effective Area (sq. in.): 19.
Internal Pressure at Cap. (psi): 10186
Tons at 10000 (psi) : 98.2
Weight (lbs.) : 54
Retracted Ht. (in.) : 5 11/16
Extended Height (in.) : 7 3/16
Outside Dia. (in.) : 6 7/8
Base to Port (in.): 15/16
Piston Rod Prod Dia. (in.): 3 3/4

Specifications

More Information
OPT SKU	PTRSS1002D
MPN	RSS1002D
UPC/GTIN	662536003544
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	1-1/2″
Tonnage	100-Ton
Shipping Weight	57.00
