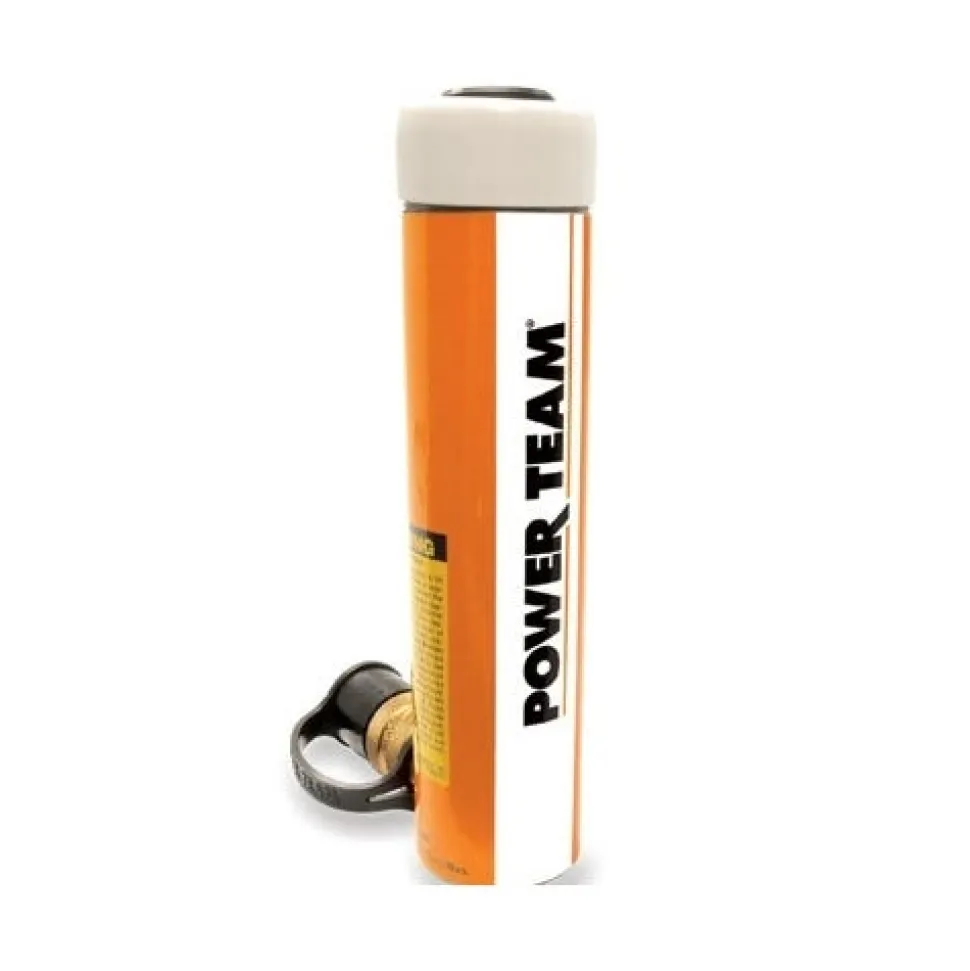

Power Team 10 Ton Hydraulic 6″ Single Acting Spring Return Cylinder C106C

• Power Team
• RUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING

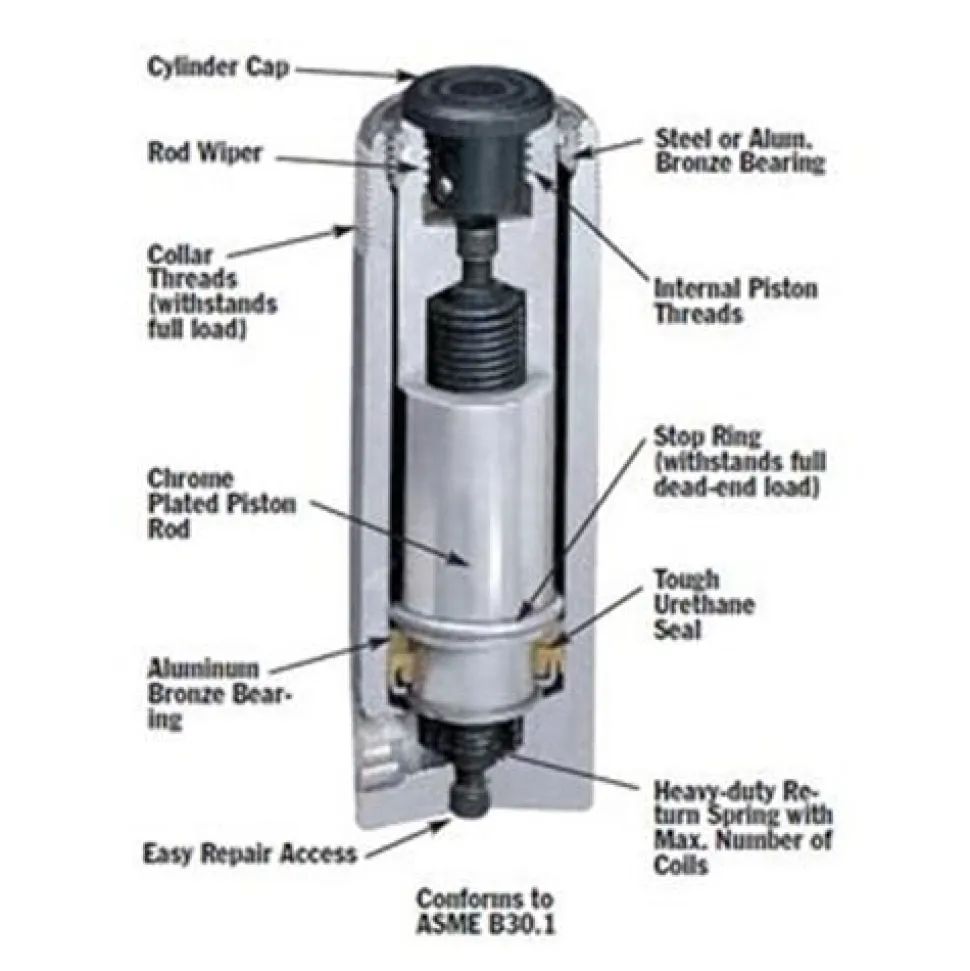

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 NPTF female half coupler is standard.
• Order No.: C106C
• Cylinder Capacity (Tons): 10
• Stroke (in.): 6 1/8
• Oil Cap. (cu. In.): 13.7
• Bore Diameter (in.): 1 2/3
• Cylinder Effective Area (sq. in): 2.236
• Internal Pressure at Cap. (psi): 8948
• Tons at 10;000 psi (psi): 11.2
• Weight (lbs.): 9.4

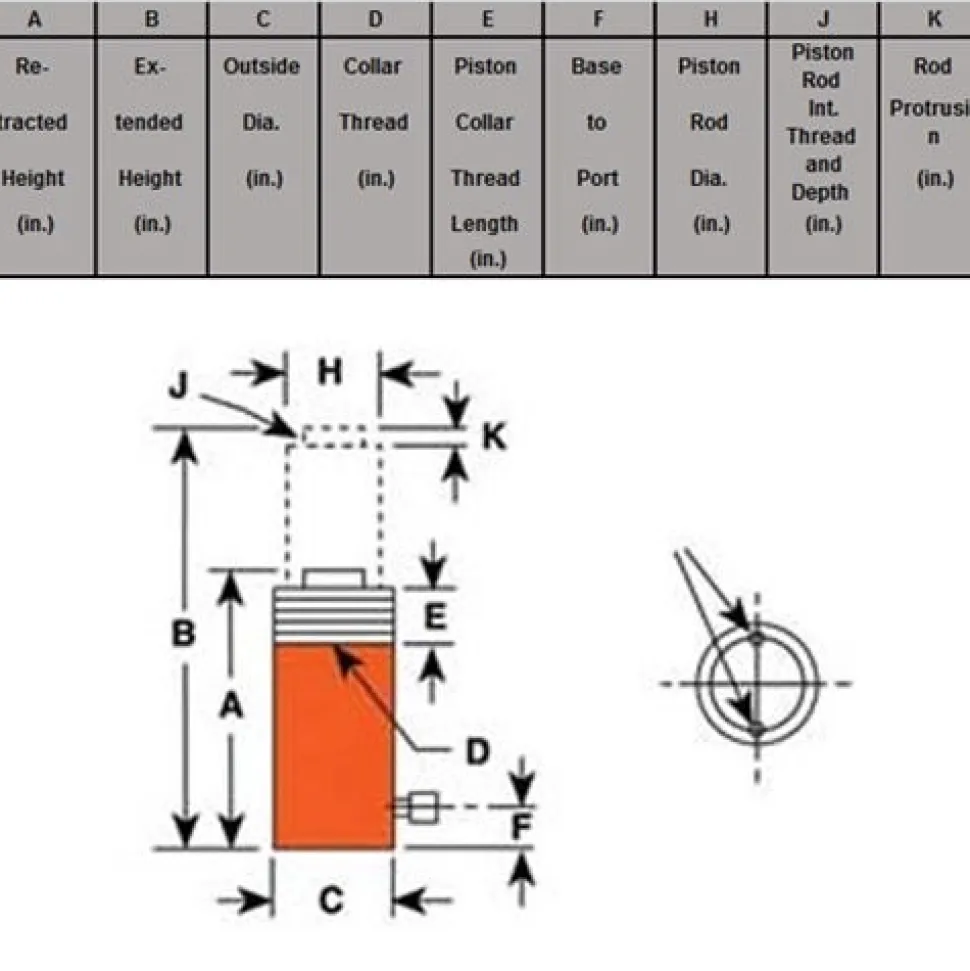

• Retracted Height (in.): 9 3/4
• Extended Height (in.): 15 7/8
• Outiside Diameter (in.): 2 1/4
• Collar Thread (in.): 2 1/4-14
• Piston Collar Thread Length (in.): 1 1/8
• Base to Port (in.): 3/4
• Piston Rod Diameter (in.): 1 1/2
• Piston Internal Thread and Depth (in.): 1-8 x 3/4
• Rod Protrusion (in.): 1/4

“
