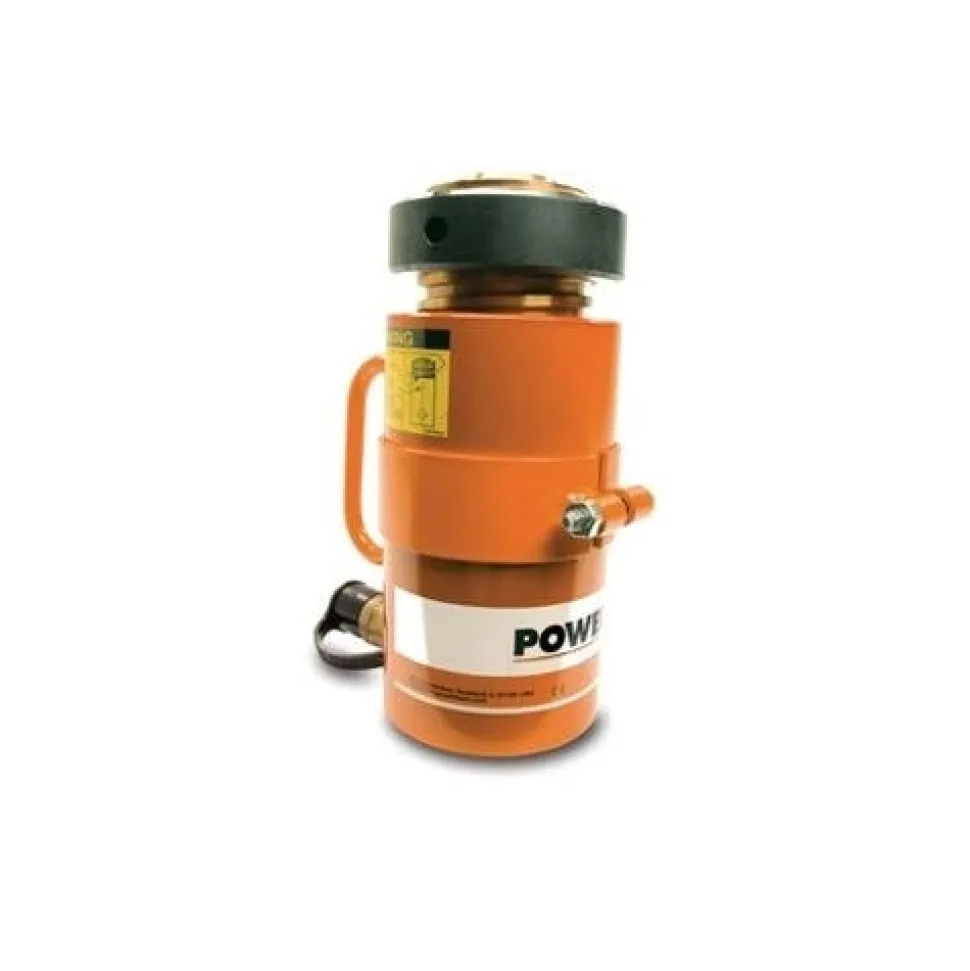

Power Team 10 Ton Hydraulic 2-1/2″ Single Acting Cylinder Center Hole RH102

Power Team SPX

Power Team 10 ton hydraulic 2-1/2 single acting cylinder center hole RH102

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Single Acting
• Interchangeable piston head inserts provide versatility of application.
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

SPECIFICATIONS:

Stroke length:	2.500″
Piston rod diameter:	2.063″
Series/type:	RH-Series/Center hole
Actuation/return:	Single acting/spring return
Cylinder capacity:	10 Ton
Oil capacity:	5.520″³
Retracted height:	5.313″
Extended height:	7.813″
Effective area:	2.210″²
Tons at 10;000 PSI:	11 Ton
Max pressure:	10;000 PSI
Base to port:	1.000″
Bore size:	5.220″
Outside diameter:	3.000″
Center hole diameter:	0.766″
Insert thread size:	1-3/4-12
Material:	Aluminum
Weight:	9.00lbs

“
