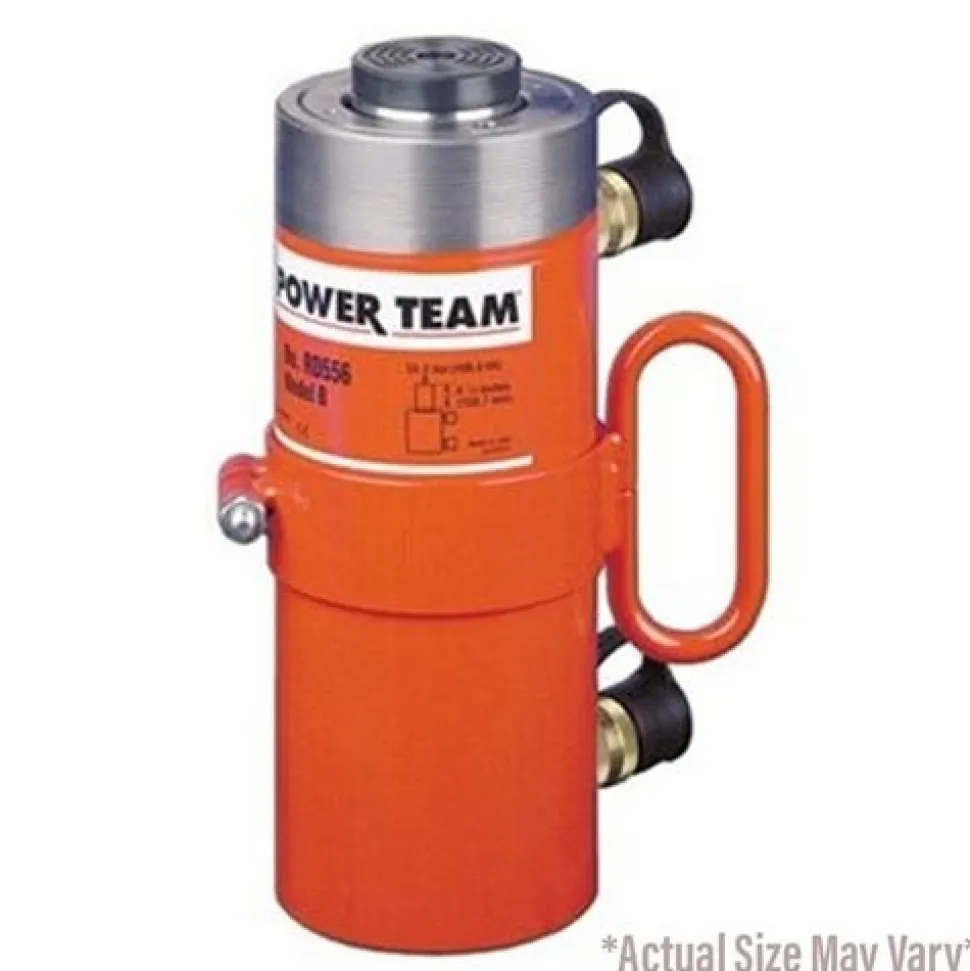

Power Team 10 Ton Hydraulic 10″ Double Acting Cylinder RD1010

Power Team SPX

Power Team 10 ton hydraulic 10 double acting cylinder RD1010

Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage
• Grooved ring pattern in load cap helps guard against load slippage>
• Each cylinder has two 9796 3/8″ NPTF female half couplers
• Feature mounting holes and collar threads

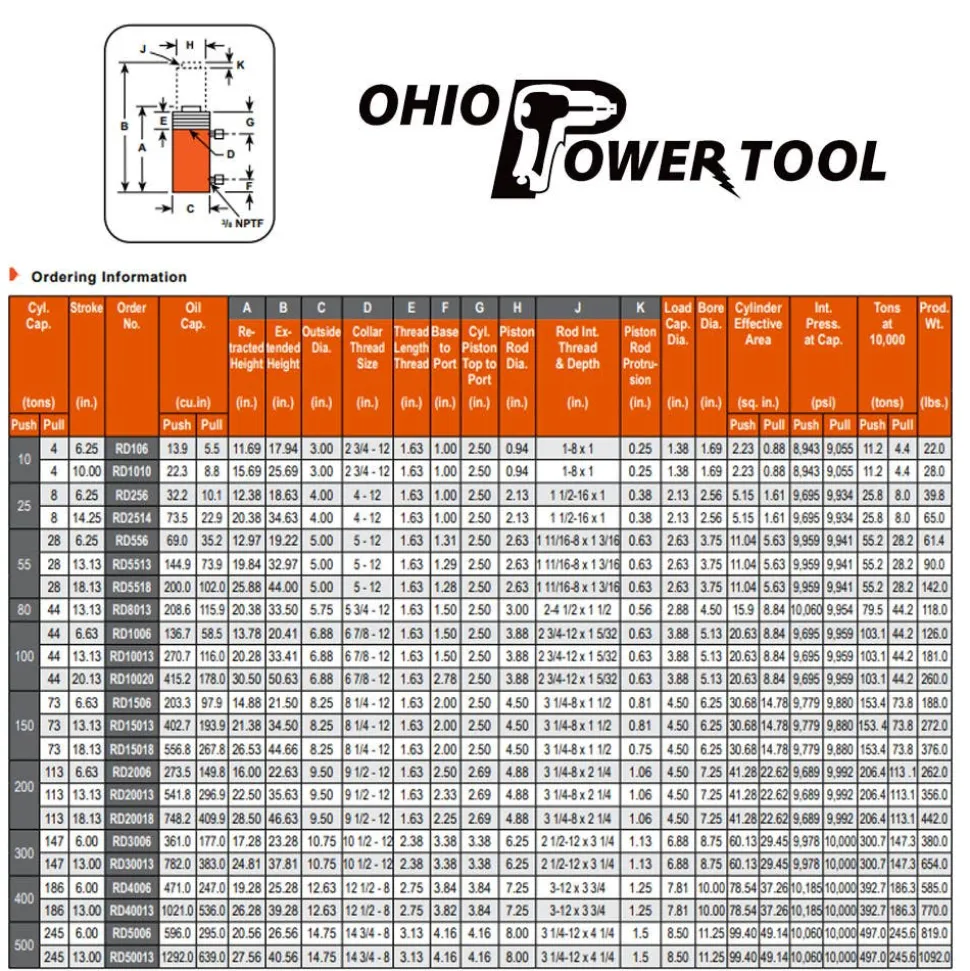

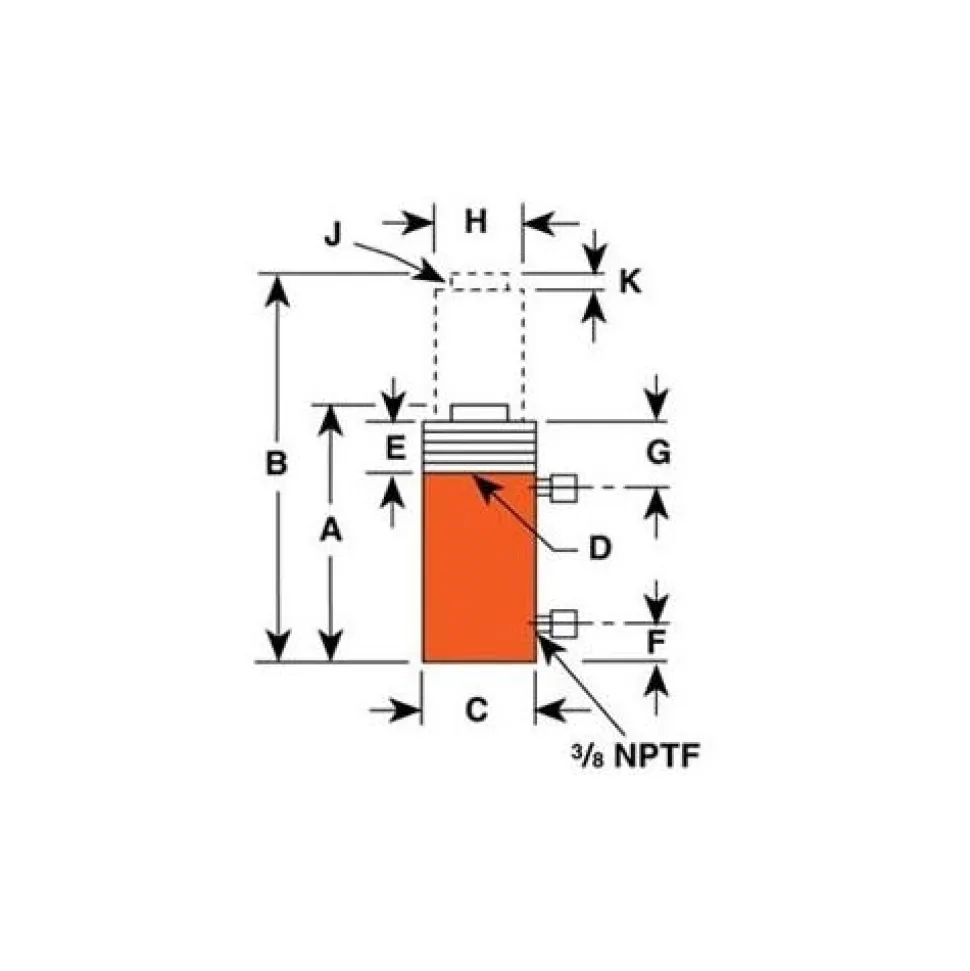

SPECIFICATIONS:

Stroke length:	10″
Piston rod diameter:	0.938″
Series/type:	RD-Series/double-Acting
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	10 Ton
Pull capacity:	4 Ton
Oil capacity:	22.3″³
Pull/return oil capacity:	8.777″³
Retracted height:	15.688″
Extended height:	25.688″
Effective area:	2.230″²
Pull cylindrical effective area:	0.880″²
Tons at 10;000 PSI:	11.2 Ton
Pull tons at 10;000 PSI:	4.4 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;055 PSI
Bore size:	1.688″
Base to port:	1″
Outside diameter:	3″
Thread size:	2-3/4-12″
Collar thread length:	1.625″
Piston rod internal thread and depth:	1-8×1
Piston rod protrusion:	0.250″
Load cap diameter:	1.375″
Cylinder piston top to port:	2.500″
Cylinder material:	Steel
Weight:	28lbs

“
