Klein

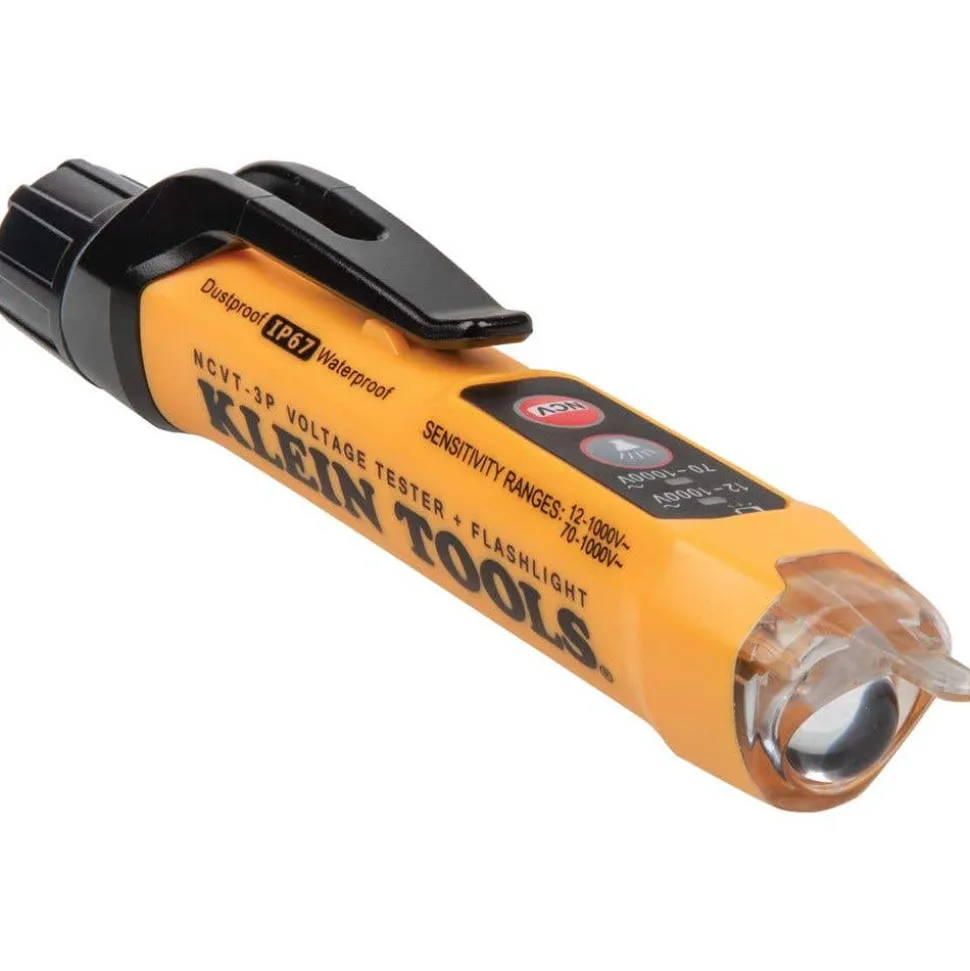

Dual Range Non-Contact Voltage Tester with Flashlight, 12 – 1000V AC NCVT3P

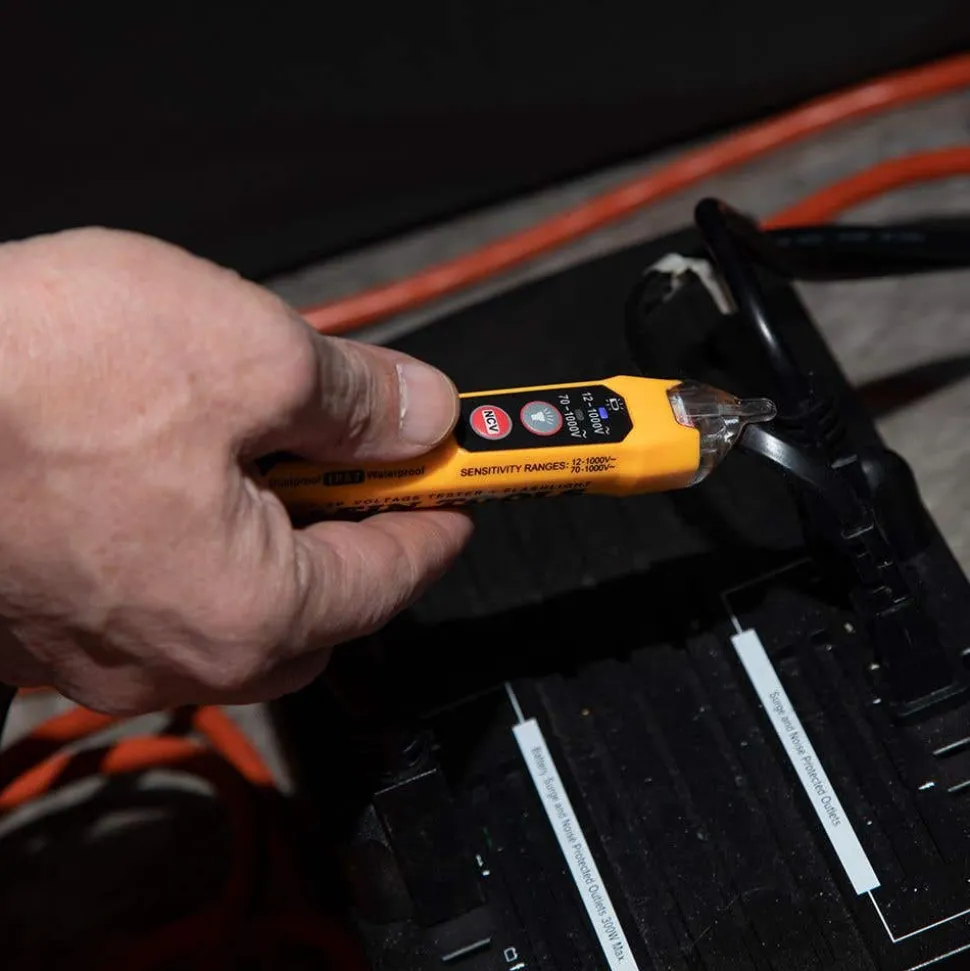

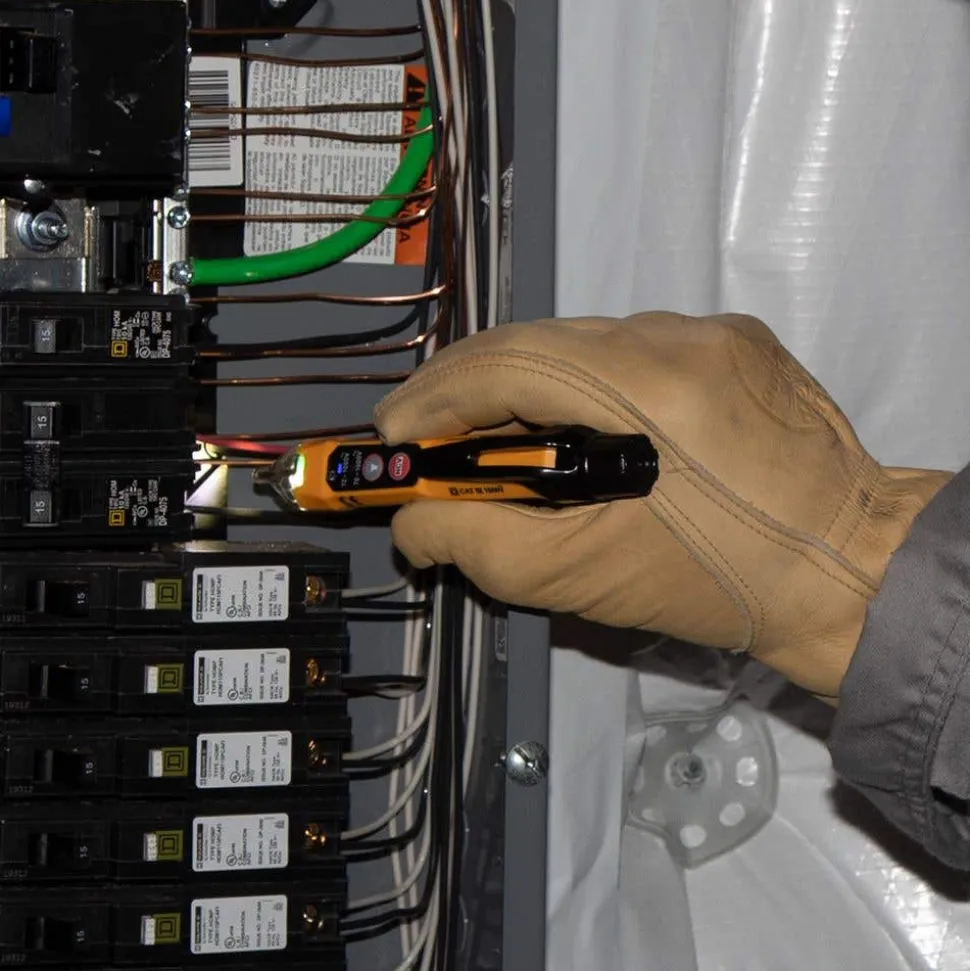

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
FEATURES:
- Non contact voltage tester’s dual-range detects from 12 to 1000 VAC or 70 to 1000 VAC for a broad variety of low-voltage or standard voltage applications.
- Detects voltage with simultaneous visual and audible voltage indicators.
- Bright flashlight illuminates work area and may be used independent of voltage detection function.
- Green light indicates no voltage.
- Lightweight, compact tool with pocket clip provides convenient storage and quick access.
- Auto power-off feature conserves and extends battery life.
- CAT IV 1000V rating provides expanded operation and protection.

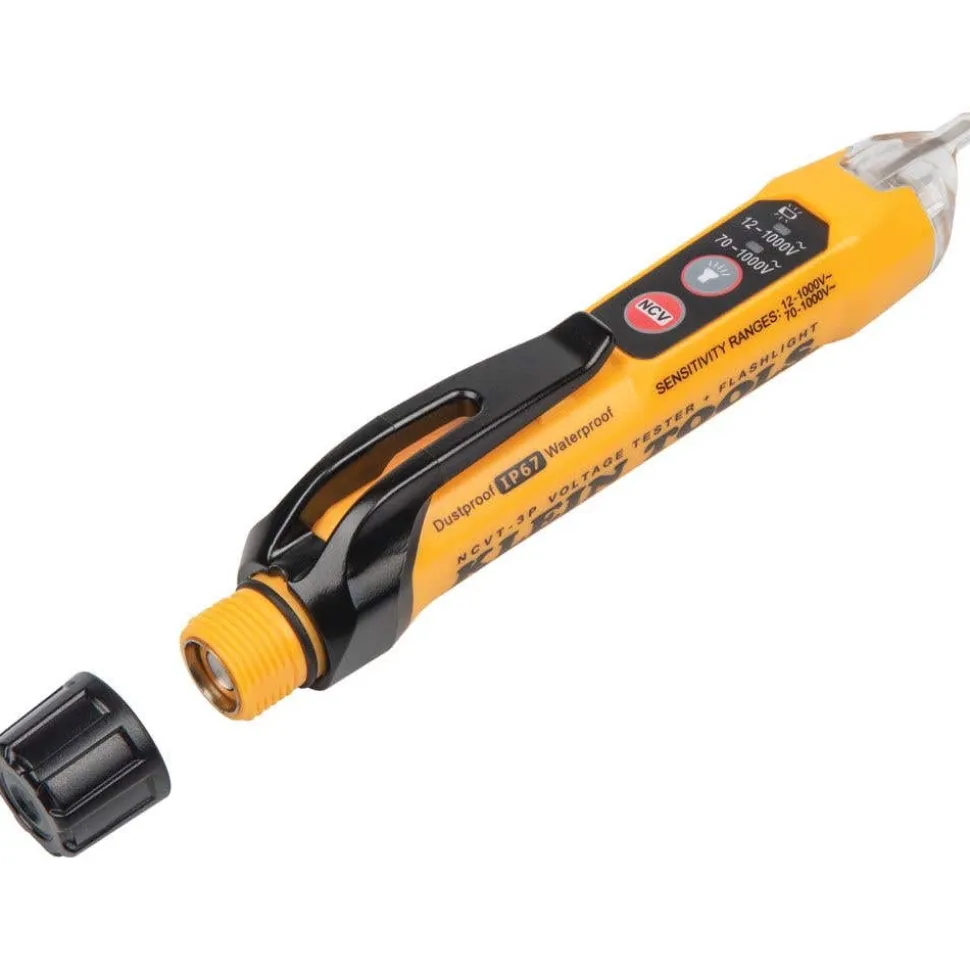

- Screw-thread battery cap with O-ring ensures protection against dust and water ingress.
- 6.6-Foot (2 m) drop protection.
- IP67: Dustproof and waterproof.
- Conforms to CE requirements.
- US Patent 10,073,142, D750,985 and other patents pending.
SPECIFICATIONS:
| Type | Dual Range with Flashlight |
| Material | Polycarbonate |
| Voltage | 12 – 1000V AC |
| Frequency | 50 – 500 Hz |
| Pollution Degree | 2 |
| Battery Life | 125 Hrs |
| Dimensions (L x W x H)(in.) | 5.7 x 0.93 x 1.09 |
INCLUDES:
(2) AAA Batteries
| Ingress Protection | IP67 – Dustproof and Waterproof |
|---|---|
| Overall Width | 1.09″ (2.8 cm) |
| Pollution Degree | 2 |
| Drop Protection | 6.6′ (2 m) |
| Accessories | ET910 |
| Overall Length | 5.70″ (14.5 cm) |
| Battery Life | 125 hr |
| Frequency | 50 – 500 Hz |
| Material | Polycarbonate |
| Batteries | 2 x AAA |
| Type | Dual Range with Flashlight |
| Item Depth | 5.7000 in |
| Item Height | 0.9300 in |
| Weight | 1.9 oz (51.0 g) |
| Overall Height | 0.93″ (2.4 cm) |
| Included | NCVT; Batteries |
| Item Width | 1.1400 in |
| Item Weight | 0.1040 lbs |
| Application | Non-Contact Detection and Testing of AC Voltage |
| Voltage | Range 1 – 12 – 1000V AC; Range 2 – 70 – 1000V AC |
| Standard | CAT IV 1000V |
| OPT SKU | KLN-NCVT3P |
|---|---|
| MPN | NCVT3P |
| UPC/GTIN | 092644693236 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 0.50 |
