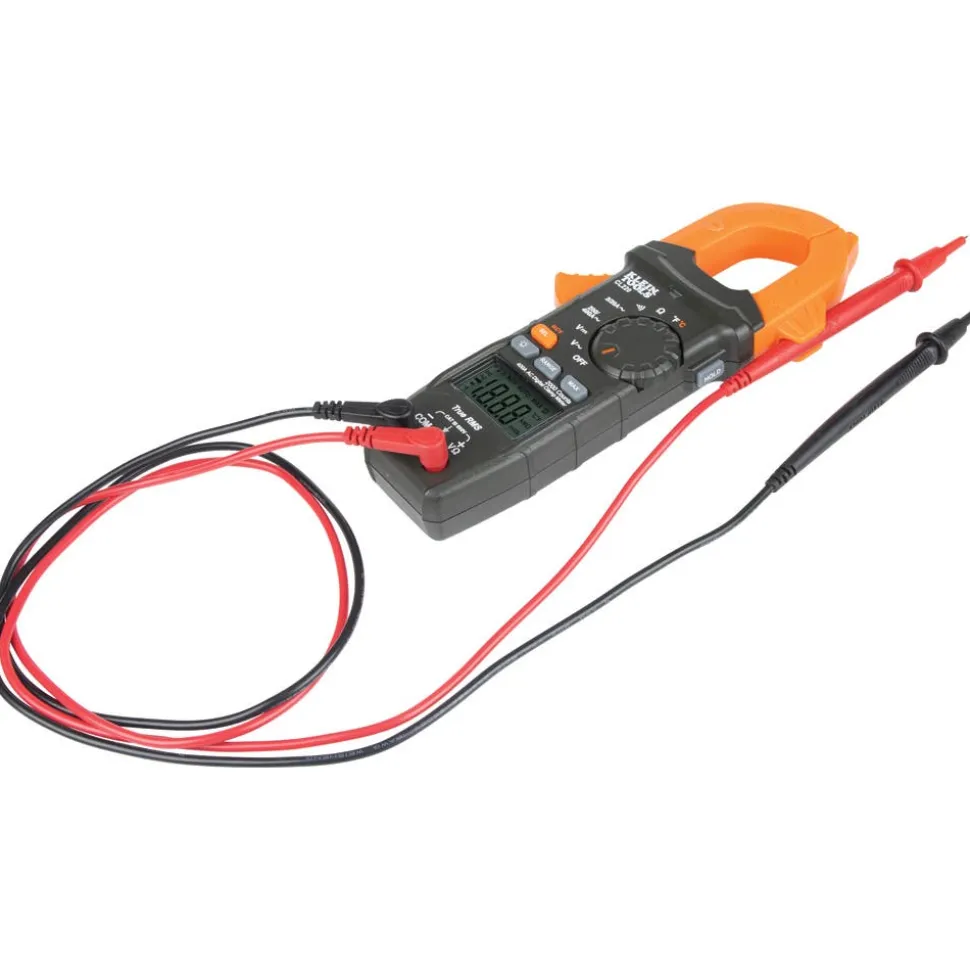

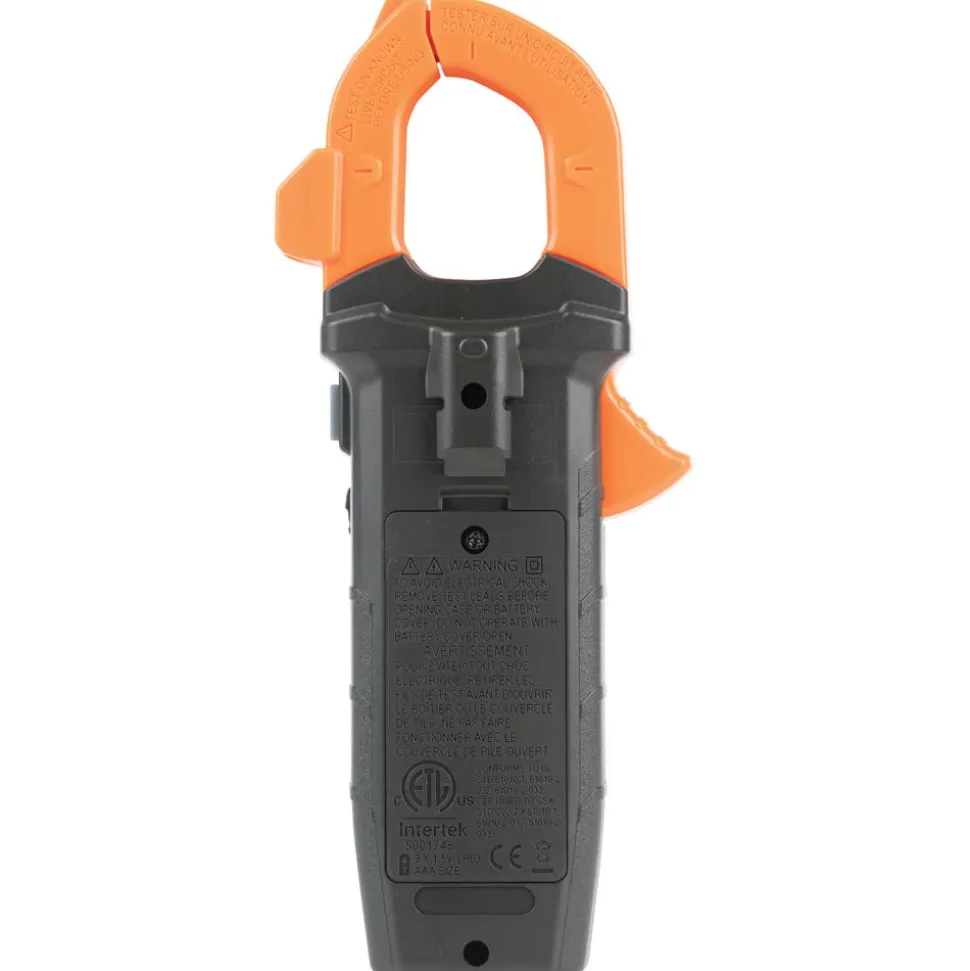

Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp CL220
Original price was: $79.00.$56.99Current price is: $56.99.
Klein
Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp CL220

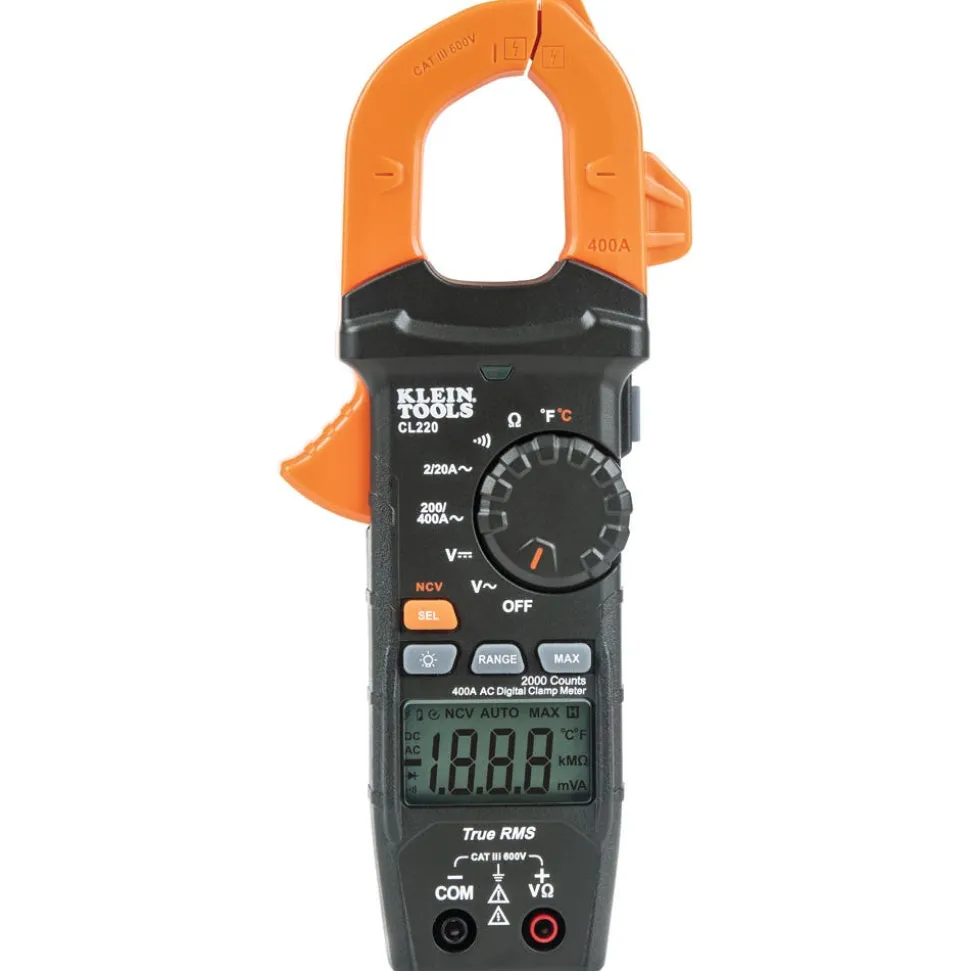

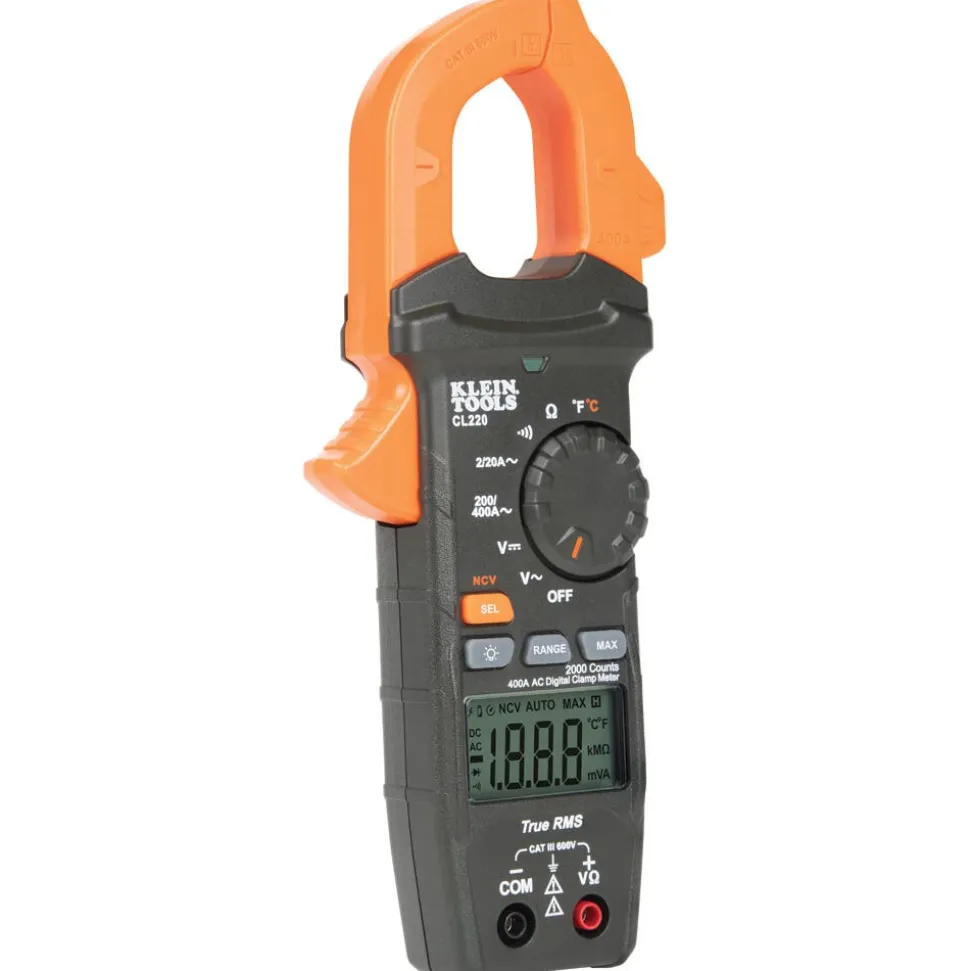

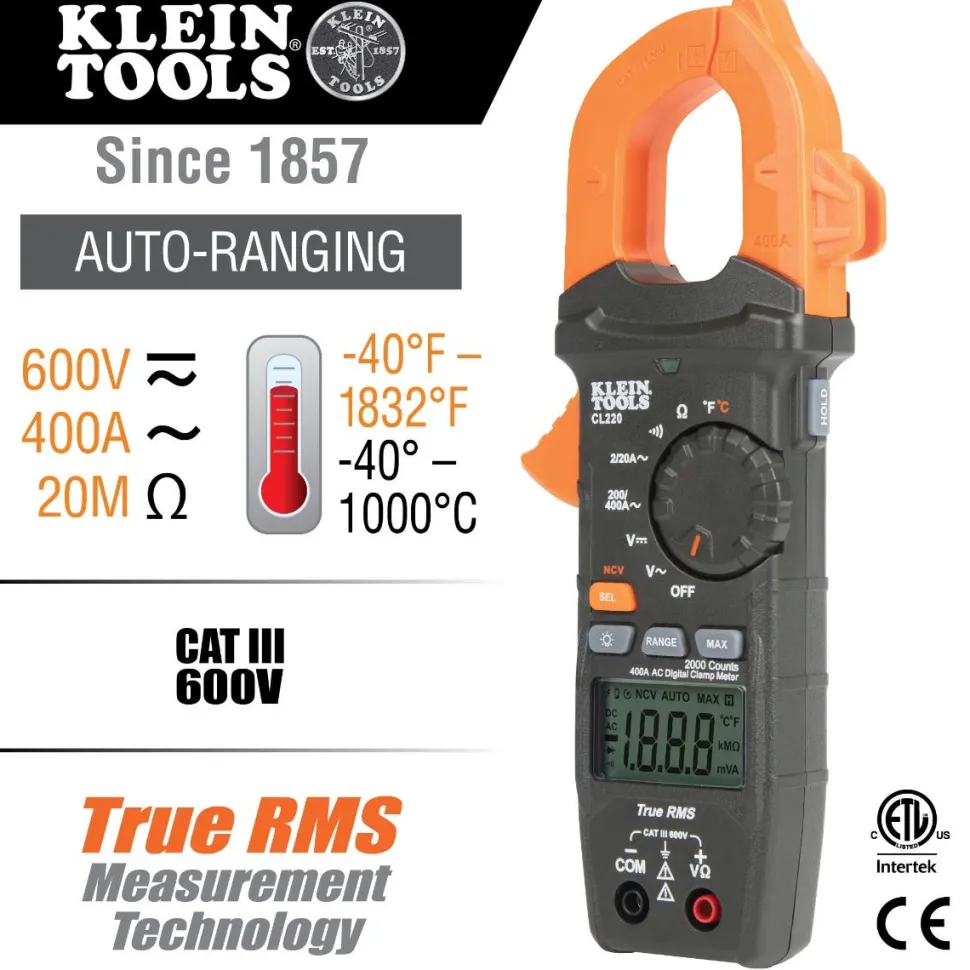

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
FEATURES:

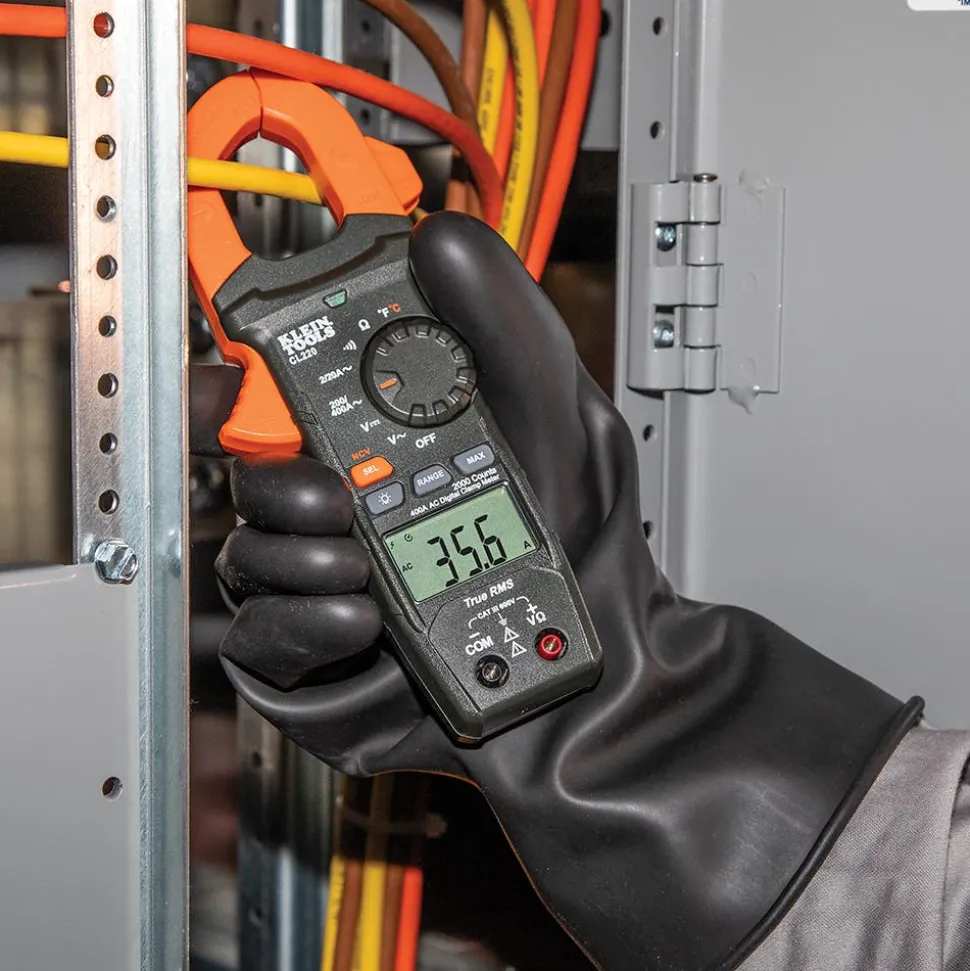

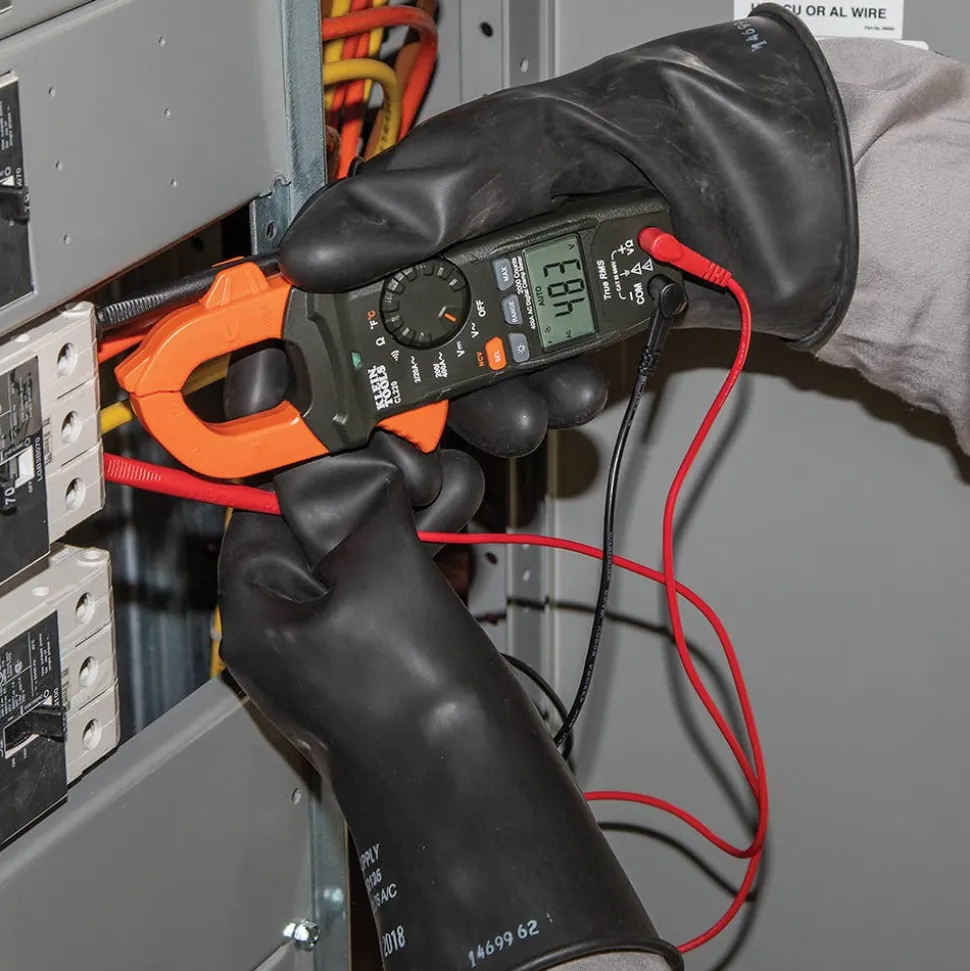

- Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

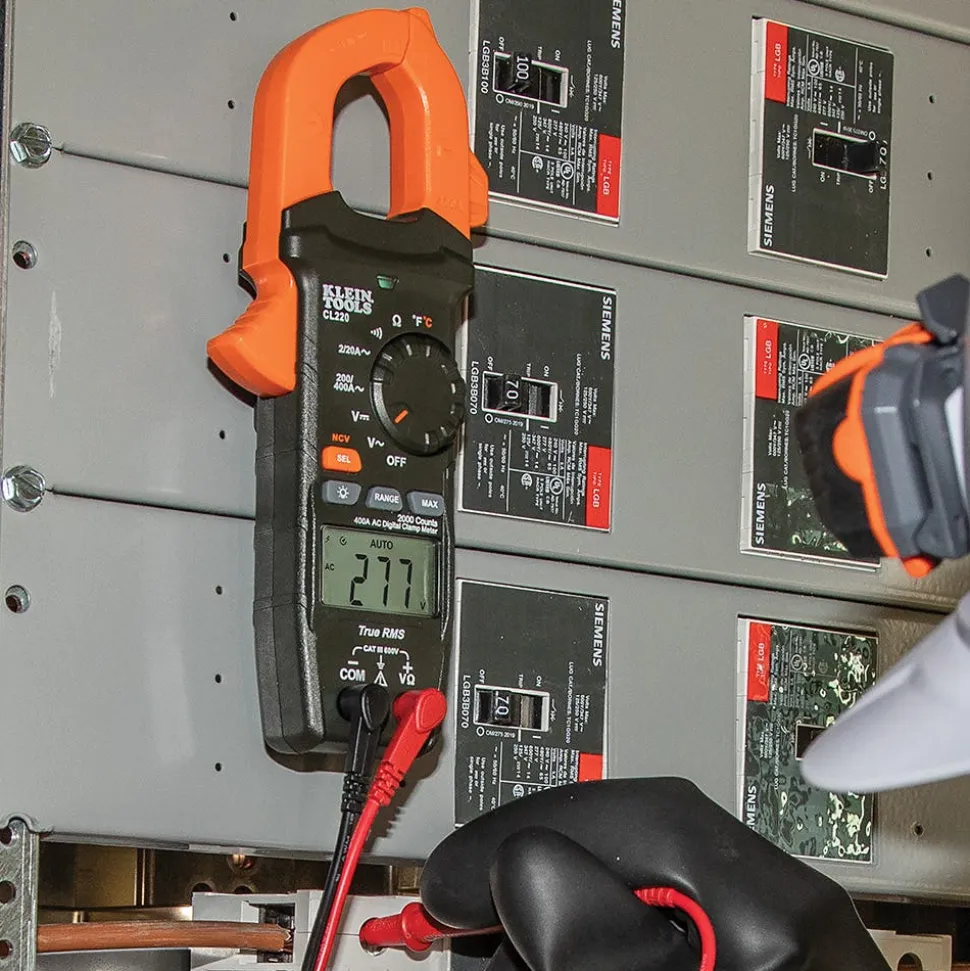

- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
SPECIFICATIONS:
| Batteries | 3 x AAA |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature |
| Voltage | 600 V AC/DC |
| Current | 400 A AC |
INCLUDES:
(1) Digital Clamp Meter
(1) Carrying Case
(1) Instructions
Test Leads
(1) Thermocouple
Batteries
| Ohms (Resistance) | 20 MΩ |
|---|---|
| Item Width | 3.5120 in |
| Auto-Power Off | Yes |
| Item Depth | 8.4500 in |
| AC Voltage | 600 V |
| Weight | 11 oz (314 g) |
| Jaw Size | 1.6″ (4.1 cm) |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| Application | Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple |
| Display | 2000 Count Backlit LCD |
| Material | ABS/Electronics |
| Replacement Parts | 69401 |
| Overall Width | 3.5″ (8.9 cm) |
| DC Polarity Indicator | Yes |
| Voltage | 600 V AC/DC |
| Item Height | 1.5060 in |
| Accessories | 69417, 69445, 69028, 69401, 69409, 69410 |
| Included | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| Overall Height | 1.5″ (3.8 cm) |
| Batteries | 3 x AAA |
| Item Weight | 0.6130 lbs |
| Drop Protection | 6.6′ (2 m) |
| Temperature Range | -40° – 1832°F (-40° – 1000°C) |
| Overall Length | 8.45″ (21.5 cm) |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature |
| Current | 400 A AC |
| Type | Auto Ranging TRMS Clamp with Temperature |
| DC Voltage | 600 V |
| OPT SKU | KLN-CL220 |
|---|---|
| MPN | CL220 |
| UPC/GTIN | 092644692857 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 0.69 |
