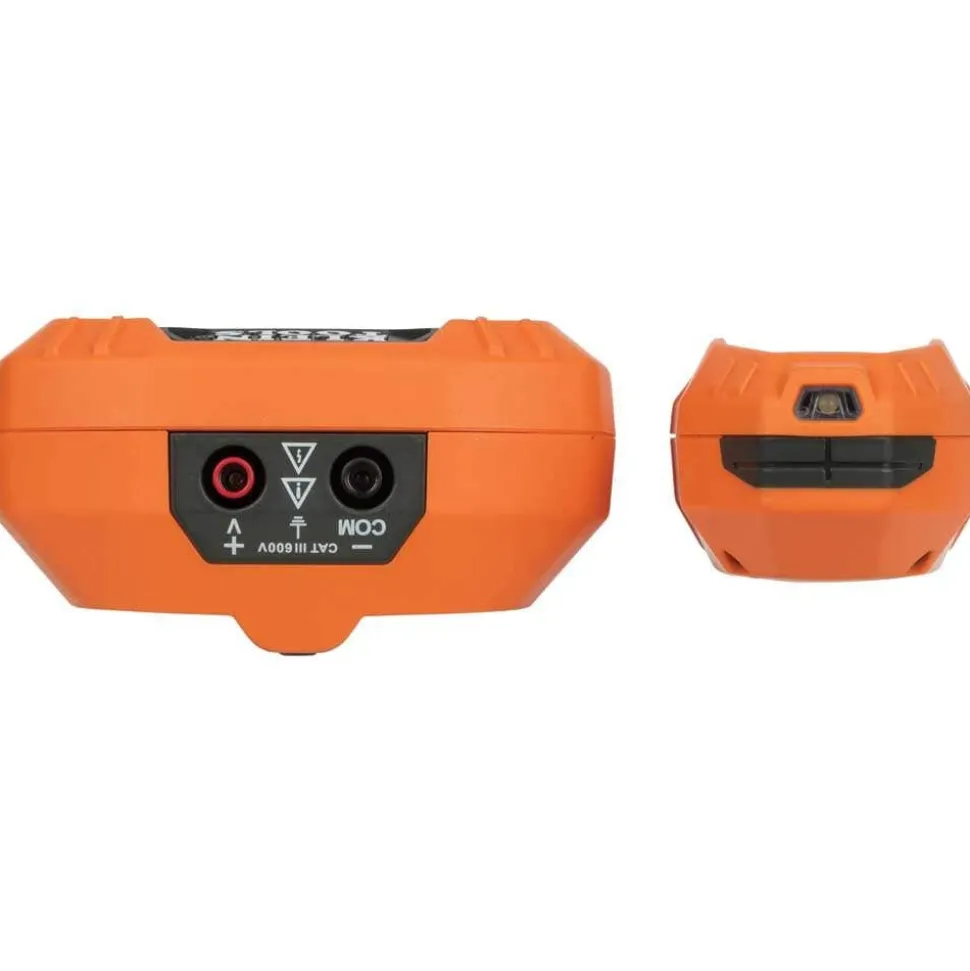

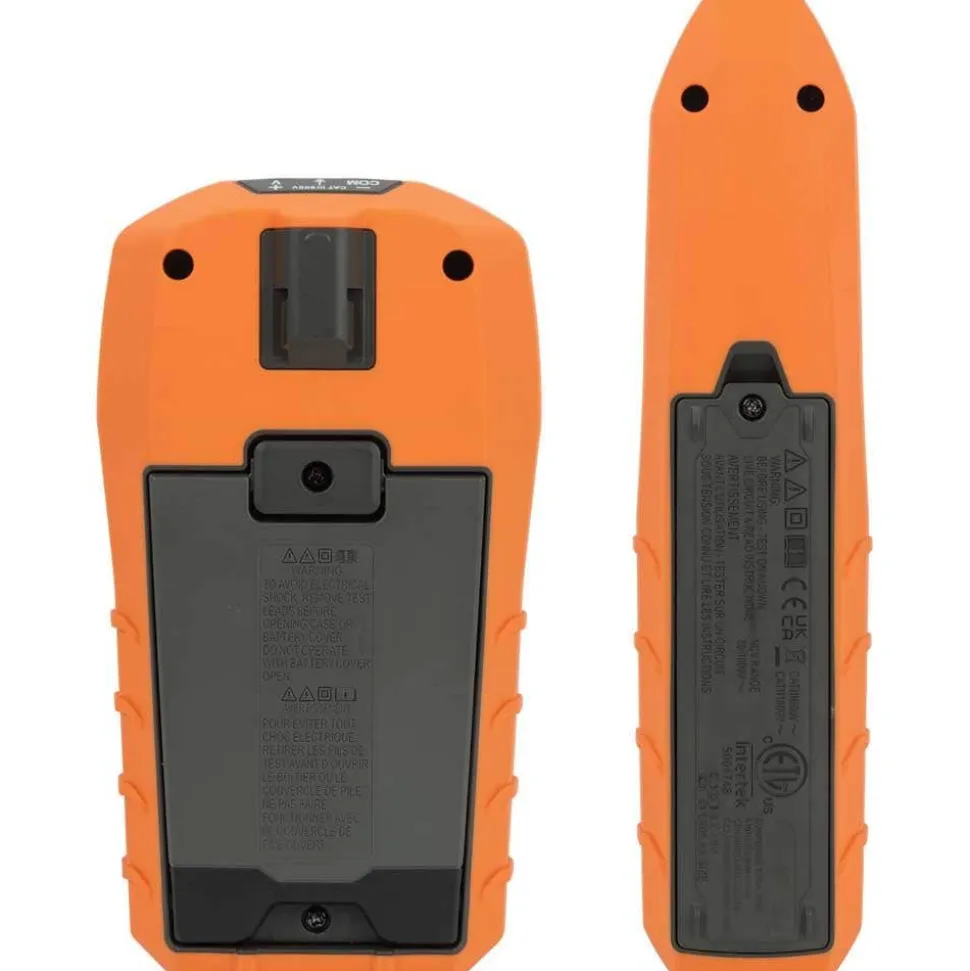

Klein Advanced Circuit Tracer Kit ET450
$124.99
Klein Tools
Advanced Circuit Tracer Kit ET450
This product provides reliable tracing of energized, or nonenergized breakers, fuses and wires. The receiver sensitivity can easily be adjusted to signal through drywall, cement blocks or even underground.
FEATURES:
- The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires
- Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
- Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle

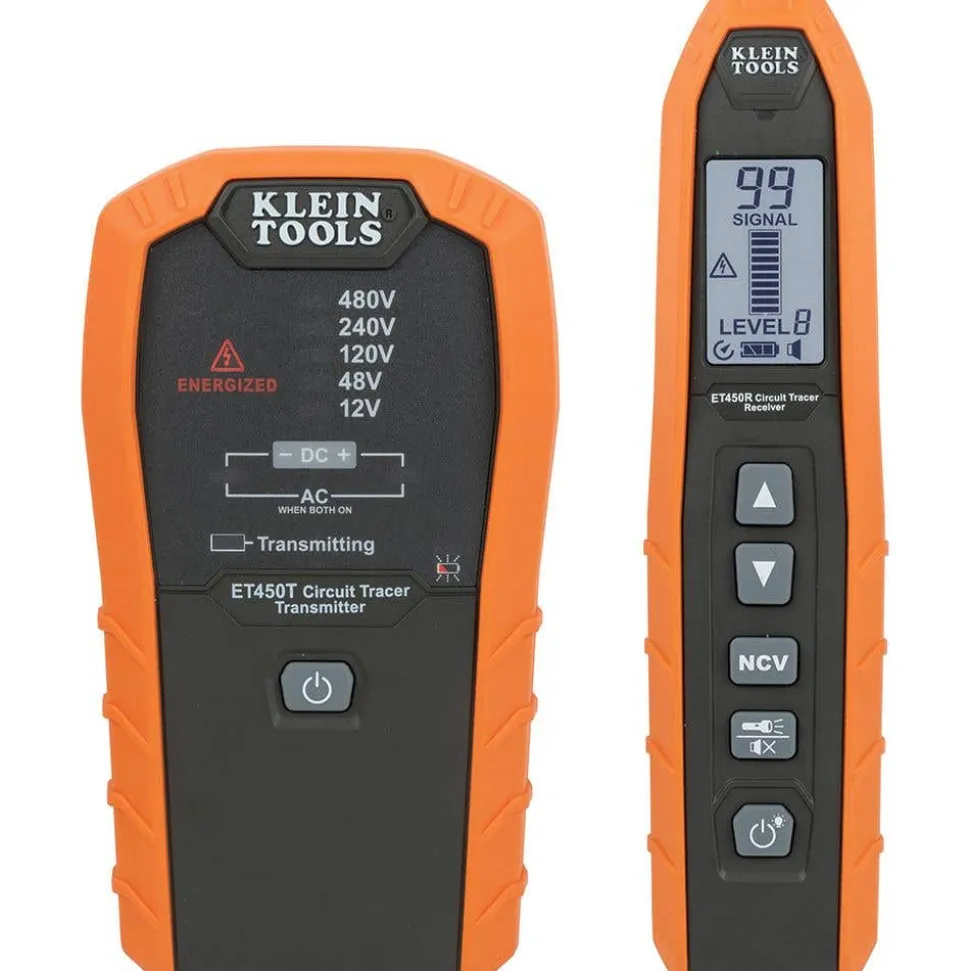

- Audible beep and visual indicators on receiver denotes signal strength
- Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V
SPECIFICATIONS:
| Application | Trace Energized and Non-Energized Breakers, Fuses, and Wires |
| Batteries | Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline |
| Overall Length | Receiver: 7.05″ (17.9 cm); Transmitter: 8.72″ (22.2 cm) |
| Overall Height | Receiver: 1.84″ (4.5 cm); Transmitter: 1.51″ (3.9 cm) |
| Overall Width | Receiver: 3.90″ (9.9 cm); Transmitter: 2.07″ (5.3 cm) |

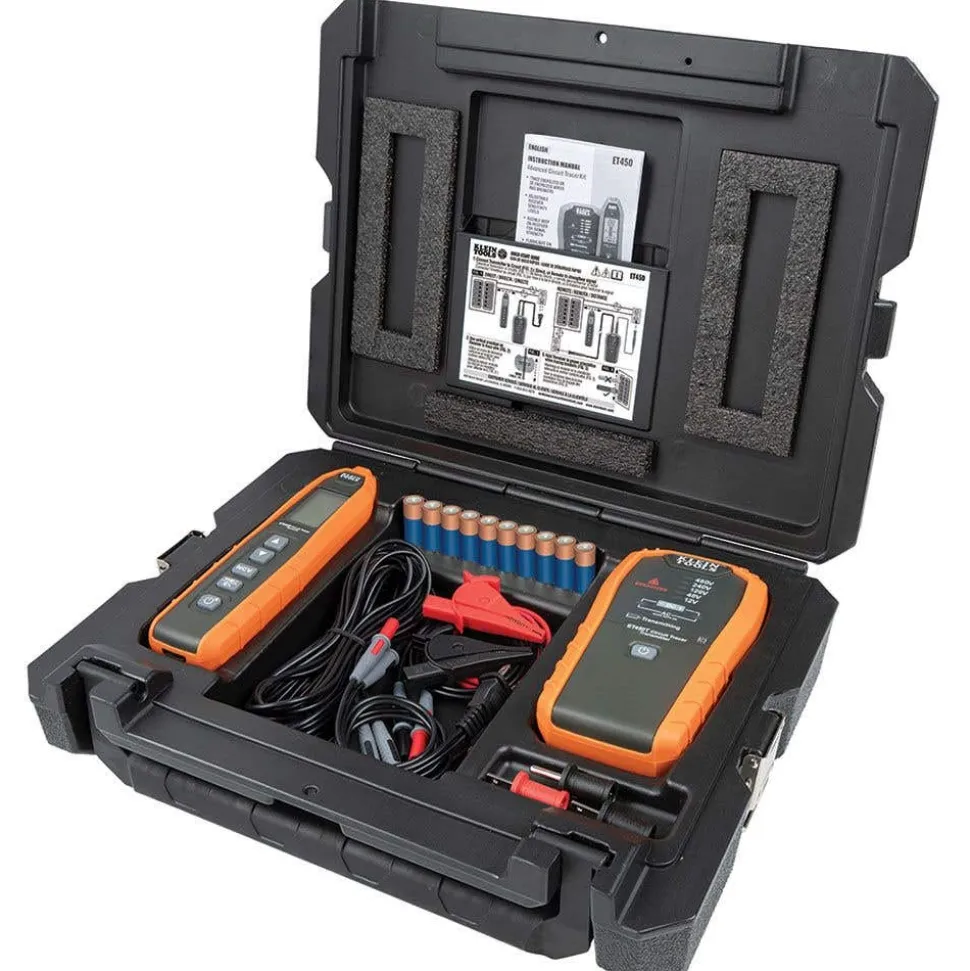

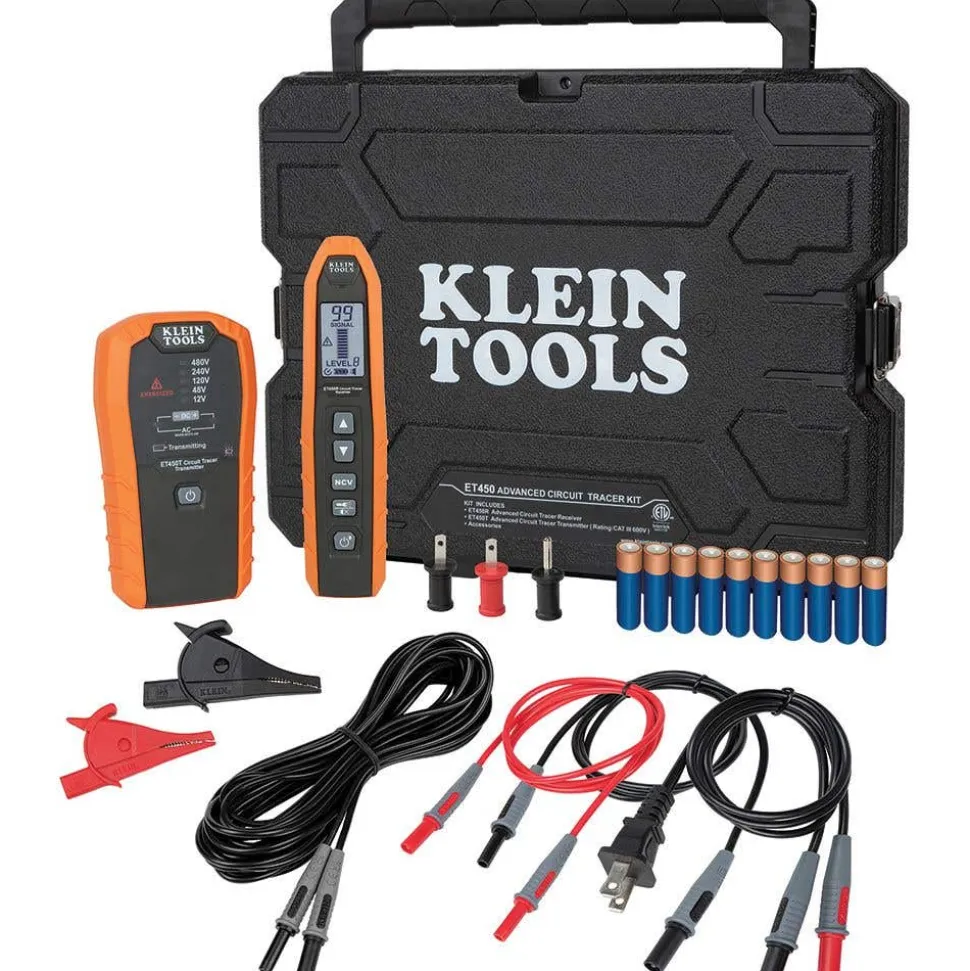

INCLUDES:
(1) Transmitter
(1) Receiver
(1) Blade and Ground Prongs
(1) Alligator Clips
(1) 3′ and 20′ Lead Adapters
(1) AC Plug Leads
(1) Instructions
(1) All Required Batteries
(1) Hard Carrying Case
| Case Included | Yes |
|---|---|
| Control Type | Transmitter and Receiver |
| Drop Protection | 6′ (2 m) |
| Lead Length | 3′ (1 m) and 20′ (6.1 m) |
| Overall Length | Receiver – 7.05″ (17.9 cm); Transmitter – 8.72″ (22.2 cm) |
| Overall Height | Receiver – 1.84″ (4.5 cm); Transmitter – 1.51″ (3.9 cm) |
| Battery Life | Up to 24 hr |
| Ingress Protection | IP42 |
| Batteries | Transmitter – 6 × 1.5V AA Alkaline; Receiver – 4 × 1.5V AA Alkaline |
| Integral Lead Storage | No |
| Type | Circuit Tracer |
| Interchangeable Leads | Yes |
| Item Weight | 6.2800 lbs |
| Item Width | 12.7500 in |
| Standard | CAT III 600V |
| Material | ABS and Electronic Components |
| Voltage | External Indicators for 12V, 48V, 120V, 240V, and 480V |
| Included | Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3′ and 20′ Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case |
| Application | Trace Energized and Non-Energized Breakers, Fuses, and Wires |
| Frequency | Transmitter – AC 45Hz to 65Hz; Receiver – 33kHz |
| Display | Receiver – LCD with Backlight |
| Weight | Transmitter – 16.5 oz (470 g); Receiver – 11 oz (312 g) |
| Pollution Degree | 2 |
| Item Height | 4.0000 in |
| Item Depth | 16.1200 in |
| Overall Width | Receiver – 3.90″ (9.9 cm); Transmitter – 2.07″ (5.3 cm) |
| Tests Continuity | No |
| OPT SKU | KLN-ET450 |
|---|---|
| MPN | ET450 |
| UPC/GTIN | 092644693380 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 2.00 |
