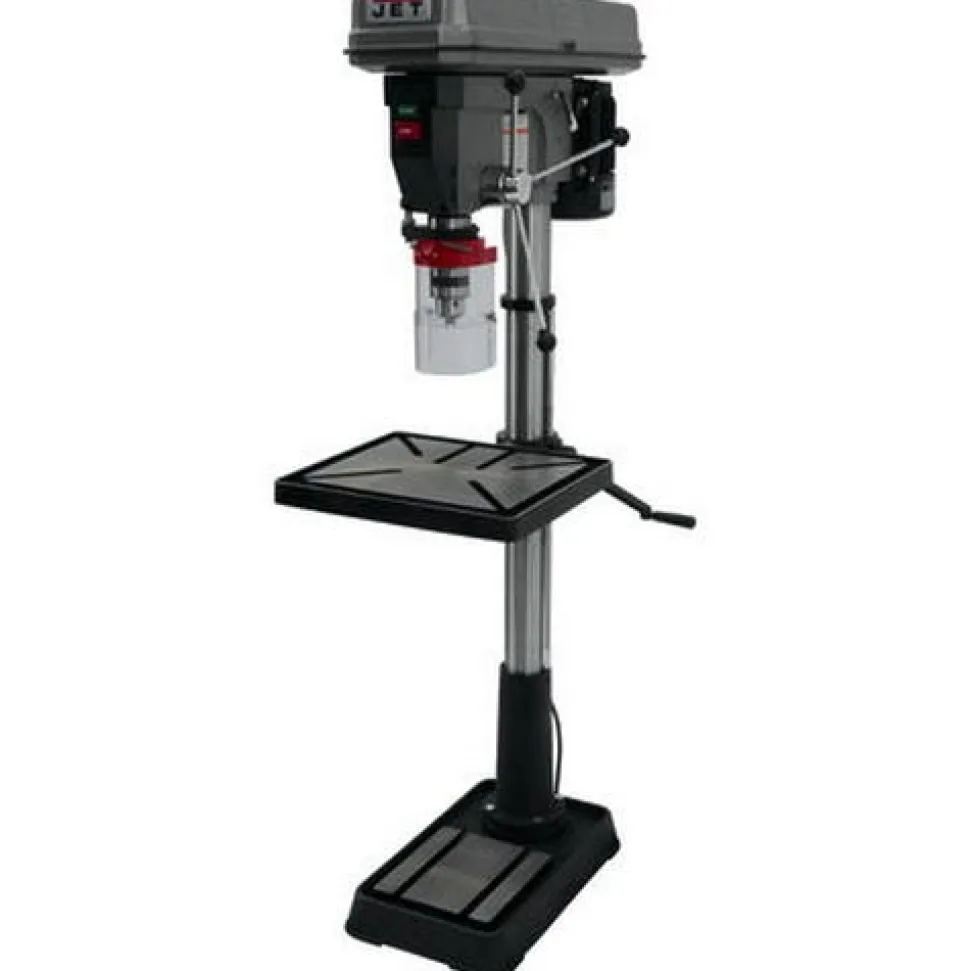

Jet Metalworking JDP-20MF 20″ Drill Press 1″ Drilling Capacity 354170

Jet Tools

JDP-20MF 20 Drill Press 1″ Drilling Capacity 354170

Accuracy; stability and versatility are the benchmark features of the JET 15″ and 20″ Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

FEATURES:

• Hinged metal belt and pulley cover.
• Quick adjustment motor mount for rapid changing of spindle speeds.
• Rotating; 45° tilting; crank operated worktable with release clamp.
• On/off switch located on front of drill press head.
• 1/2″ diameter external depth stop with three nut locking feature for quick adjustment.
• Adjustable tension spindle return spring.
• Spindle is supported by high quality bearings.
• Drill chuck and key included.
• Spindle Safety Guard.
• Telescoping safety spindle guard.

SPECIFICATIONS:

Style	Variable
Drills to Center of Circle (in)	20
Drilling Capacity Cast Iron (In.)	1
Drilling Capacity Mild Steel (In.)	3/4
Distance Column to Spindle (In.)	10
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150-4;200
Column Diameter (In.)	3-3/8
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	4-5/8
Spindle Distance to Base (In.)	46-3/4
Spindle Distance to Table (Max.) (In.)	29-1/8
Table Travel (In.)	21-1/2
T-Slots Number and Size (In.)	6 and 1/2
T-Slot Centers (In.)	3-1/2
Table Size (L x W) (In.)	18-1/2 x 16
Work Table Weight Capacity (Lbs.)	80
Base Dimensions (In.)	13-3/4 x 22-3/4
Base Slots Number & Size (In.)	2 and 5/8
Base Work Table (In.)	13 x 8-1/2
Motor (HP)	1-1/2 HP; 115/230V; 1Ph
Prewired (V.)	115
Overall Dimensions (L x W x H) (In.)	33-1/2 x 18-1/2 x 67

“
