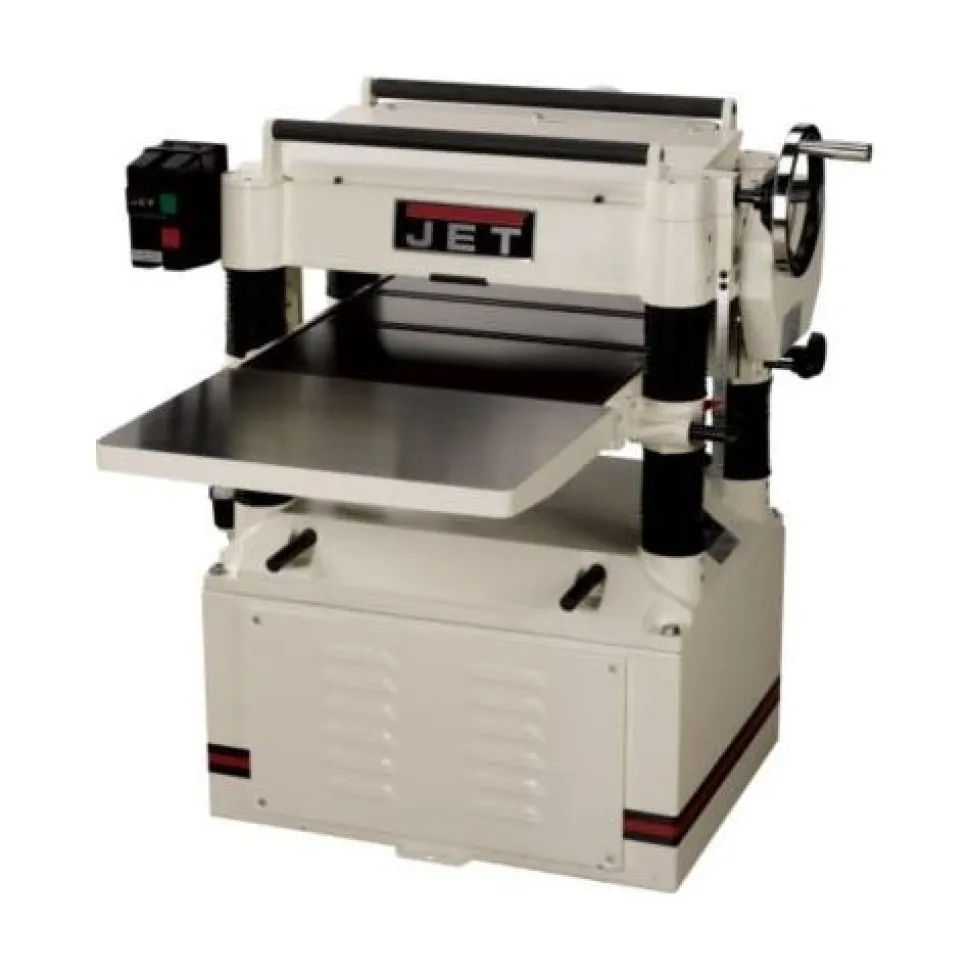

Jet JWP-208HH-1 20″ Woodworking Planer w/ Helical Head 708544

Jet Tools

20 Woodworking Planer JWP-208HH-1 w/ Helical Head 708544

JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards; with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported; while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments.

FEATURES:

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Heavy-duty cast iron and steel contruction for added strength and durability
• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
• Large; cast iron; precision ground table for precise workpiece support
• Powerful 5HP TEFC induction motor with three v-belt transmission for smooth and consistent power
• Positive gear drive moves table quickly and accurately
• Work table is precision-ground and polished for consistently smooth operation
• Large handwheel with positive gear drive allows for quick and accurate table adjustments
• 1/16″ increment height scale lets you make the most precise adjustments for fine cuts
• 5″ dust port provides efficient chip and dust collection
• One-piece welded steel base offers solid support and stability
• Magnetic Controls provide long life and reliability

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Knife Size (L x W x T)	15 x 15 x 2.5
Cutterhead Speed (RPM)	5000
Cutterhead Diameter (In.)	3-3/16″
Number of Knives	92 Four-Sided Inserts
Maximum Full Width Depth of Cut (In.)	3/32″
Maximum Planing Width (In.)	20″
Maximum Planing Thickness (In.)	8″
Minimum Planing Length (In.)	6-3/4″
Feed Rate (FPM)	24/31
Number of Speeds	2
Table Size (L x W) (In.)	25-3/4″ x 20″
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	5″
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	27
Weight	837 lbs

“
