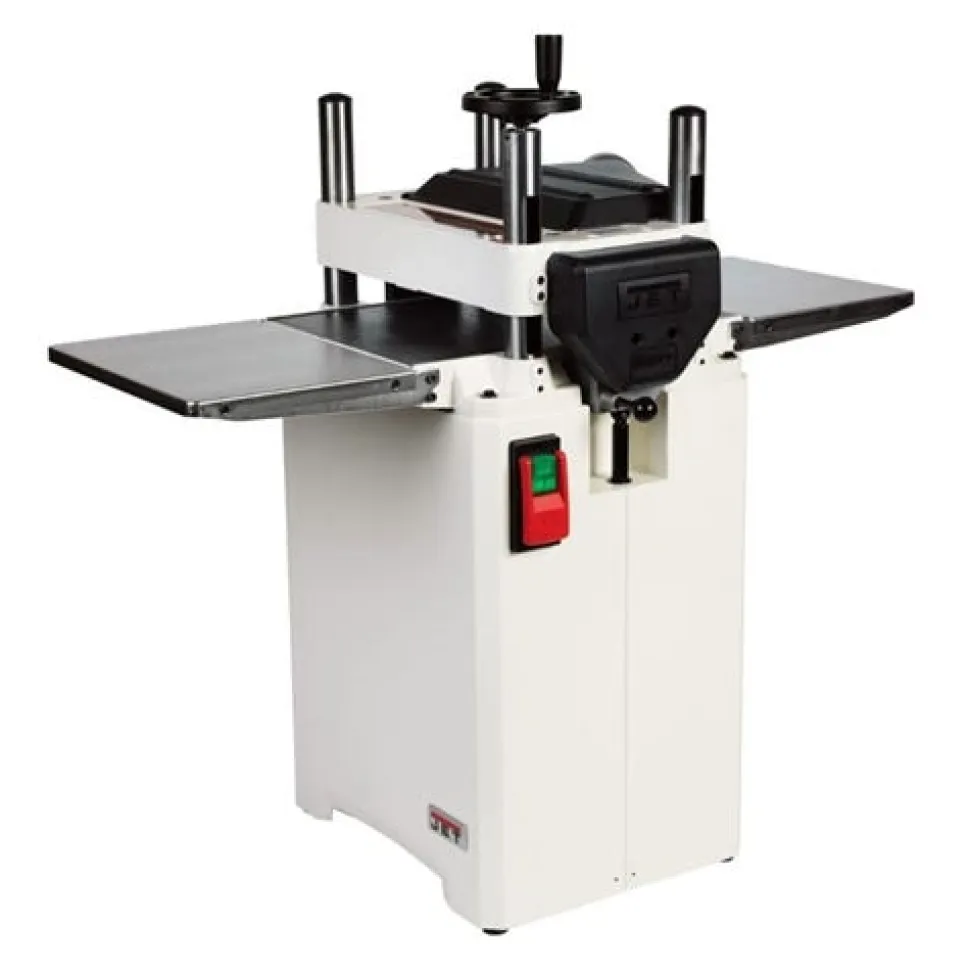

Jet JWP-15B 15″ CS Planer w/ Straight Knives 722150

Jet Tools

JWP-15B 15 CS Planer w/ Straight Knives 722150

For projects that require board thickness to be beyond exact; the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface.

FEATURES:

• Innovative JET – Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead; reducing the chance of board snipe.
• Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use.
• Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
• Powerful 3-HP motor with v-belt transmission reduces vibration and running noise.
• Dual infeed speed control for 16fpm or 20fpm; maximizes cut efficiency.
• Maximum depth of cut 1/8″; 6″ cutting height and 15″ width capacity.

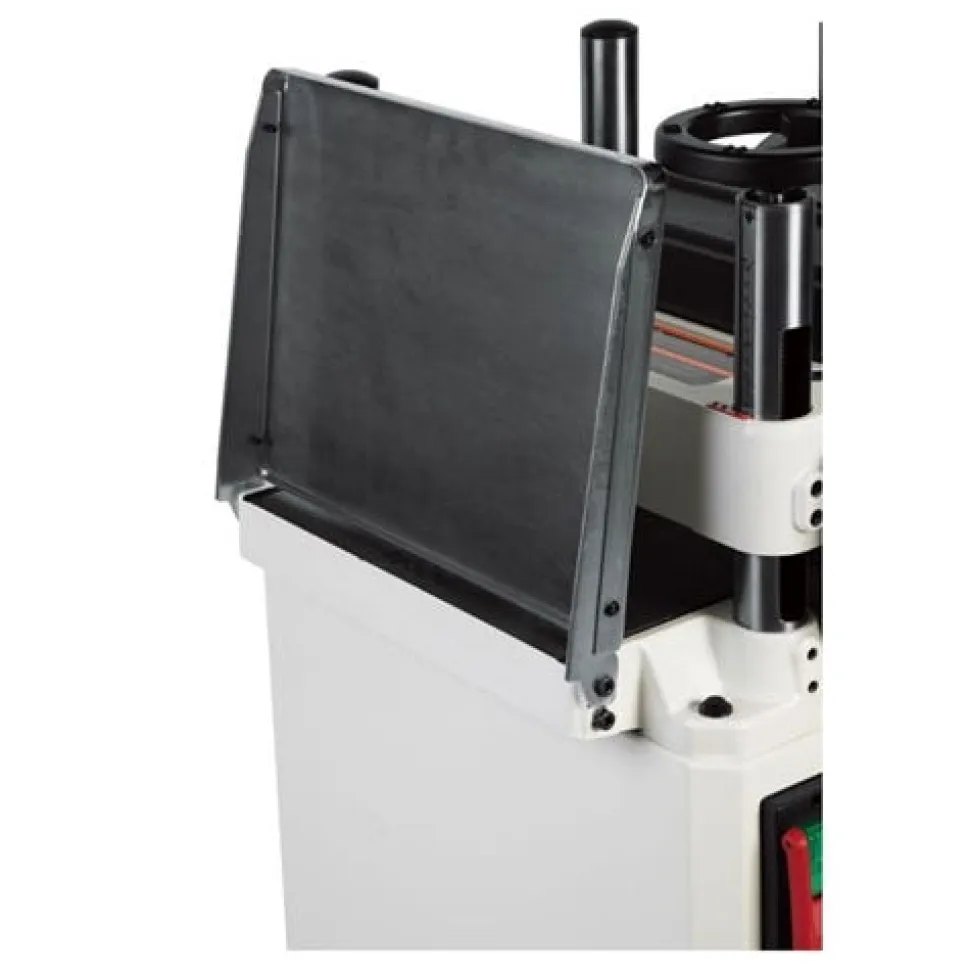

• Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience.
• Large hand wheel with positive gear drive easily moves the head to the desired board thickness.

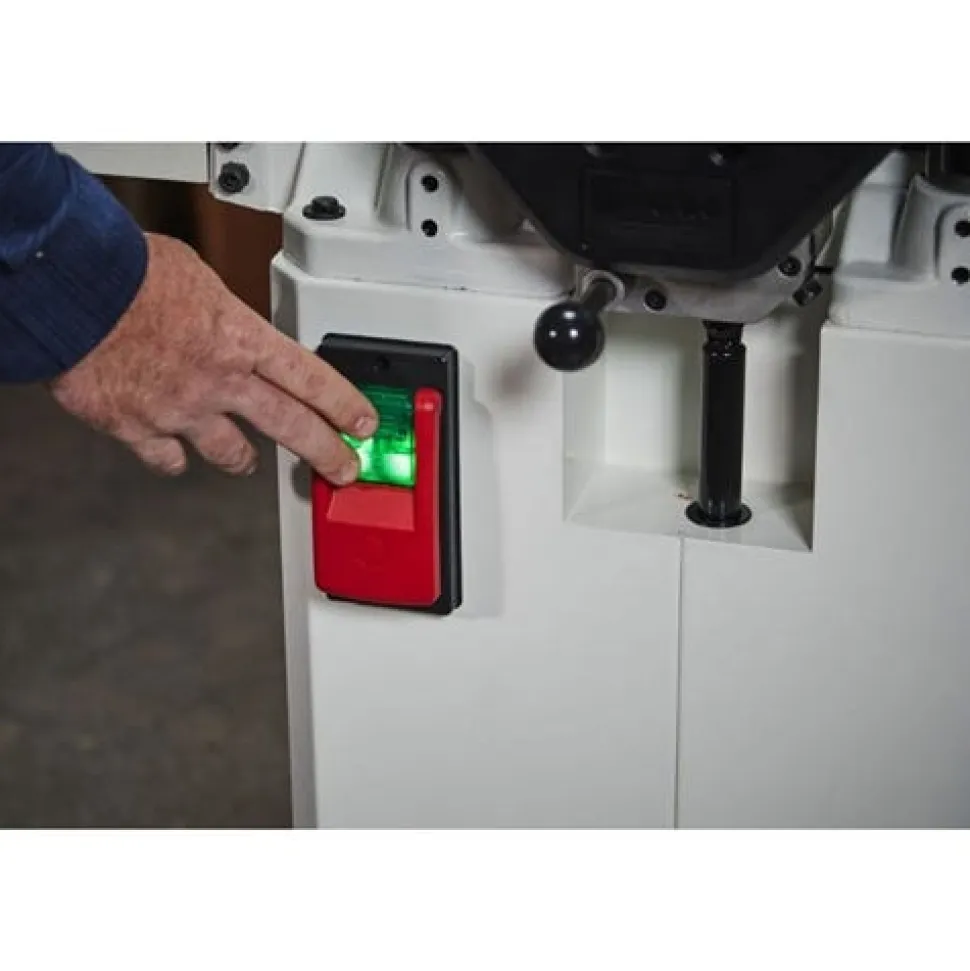

• Magnetic Switch with green safety light illuminates when powered.

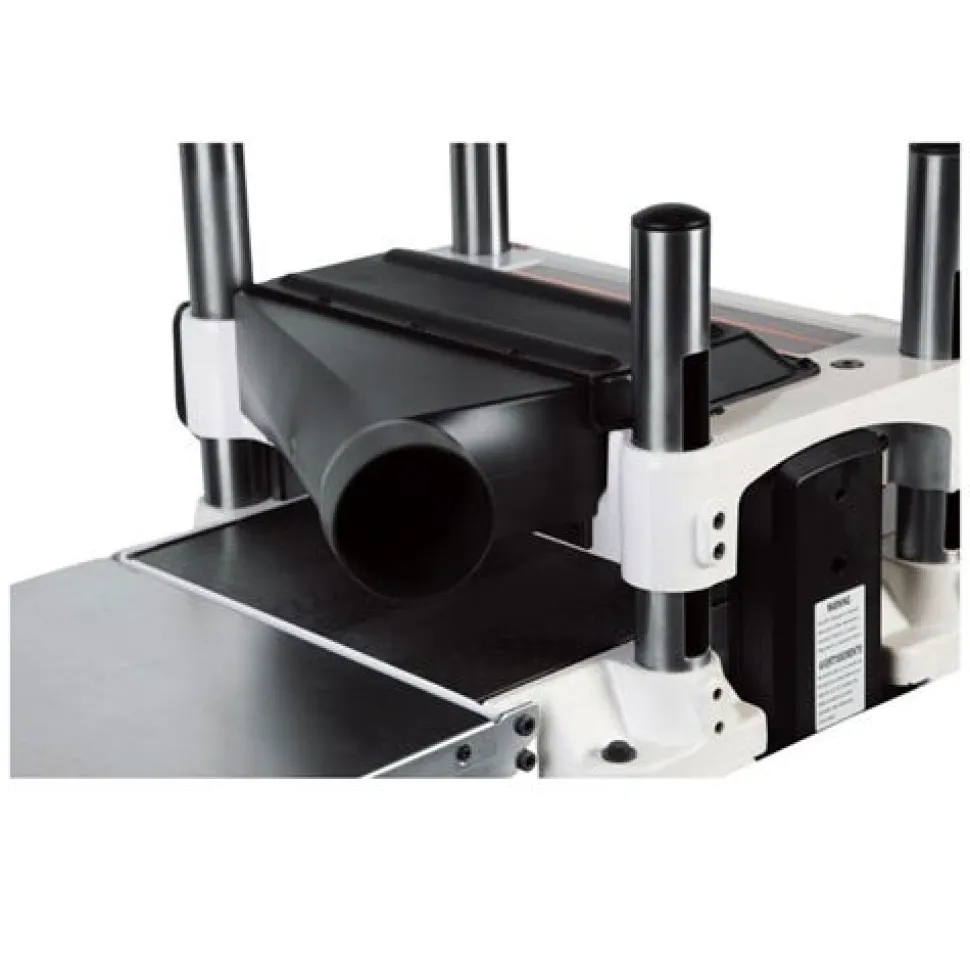

• 4″ Dust Port hooks up to dust management system and helps keep shop clean.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Type of Cutterhead	Straight Knife
Cutterhead Speed (RPM)	5;200
Cutterhead Diameter (In.)	2-5/8″ (68mm)
Cuts Per Minute	15600
Number of Knives	3
Maximum Depth of Cut (In.)	3/16″
Maximum Full Width Depth of Cut (In.)	1/8″
Maximum Planing Width (In.)	15″
Maximum Planing Thickness (In.)	6″
Minimum Planing Length (In.)	5.6″
Feed Rate (FPM)	16 and 20
Number of Speeds	2
Table Size (L x W) (In.)	15″ x 21.45″
Table Size with Extensions (L x W) (In.)	15″ x 21.45″
Dust Collection Minimum CFM Required (CFM)	600 CFM
Dust Port Outside Diameter (In.)	4″ (102mm)
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Motor Amps	15

“
