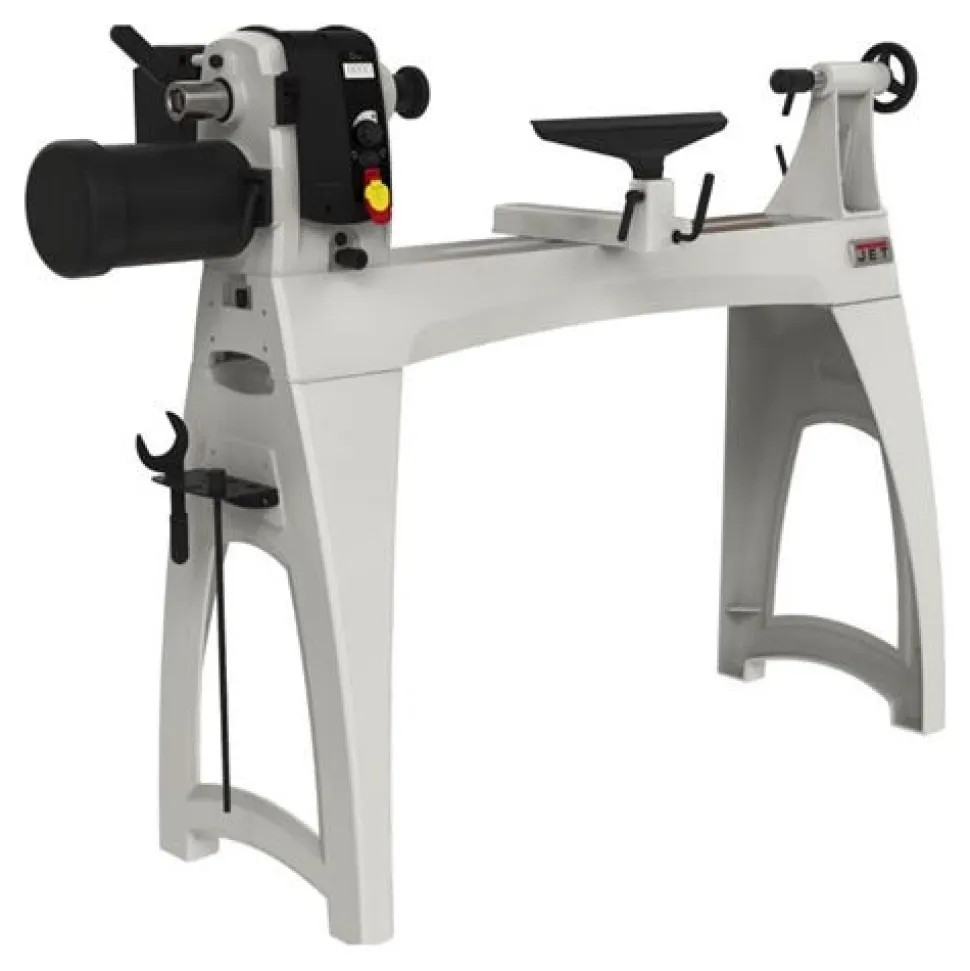

JWL-1640EVS 16 x 40″ Wood Lathe 719500

The new JET 16” x 40” Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock; electronic infinitely variable speed from 40 – 3200 RPM; and a newly designed headstock locking handle.

FEATURES:

• Headstock slides for maximum versatility.
• Extended spindle nose houses dual headstock spindle bearings.
• Improved tailstock quill locking mechanism incorporates an anti-rotation key.
• Tailstock features Acme threads for smooth and durable movement.
• Banjo uses non-marring; positive locking wedge system to securely hold tool post.
• Tool post locking mechanism designed for year of consistent strength.
• Spindle lock latch frees up both hands.
• Electronic infinitely variable speed from 40 – 3200 RPM.
• 36 integrated indexing positions.
• Newly designed headstock locking handle accessible from front of lathe.
• Convenient leg-mounted tool holder.
• Inverter is enclosed for added protection.
• E Drive Inverter features a built in EMI filter.
• Conveniently located digital readout.
• Rubber tool mat on top of headstock.

SPECIFICATIONS:

Swing Over Bed (In.)	16-1/2″
Bed Gap (In.)	1-3/4″
Swing Over Tool Rest Base (In.)	12-7/8″
Distance Between Centers (In.)	40″
Headstock Movement	Slide
Spindle Bore (In.)	5/8″
Tailstock Bore (In.)	3/8″
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel (In.)	4-1/4″
Spindle Thread (In./TPI)	1-1/4″/8 TPI
Outboard External Threads (In. x TPI)	3/4-14 LH
Spindle Speeds	High 120-3200/Low 40-1200
Speed Range	40-3200
Number of Indexing Positions	36
Centerline of Spindle to Floor (In.)	44-1/2″
Outboard Turning	Yes
Bed Construction	Cast Iron
Motor Power (HP)	1-1/2
Motor Phase (PH)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	115 Input Only
Wiring Remarks	115v Input Only
Motor Amps	4.6
Recommended Circuit Size (Amps.)	20
Assembled Machine Dimensions (In.)	73″ x 52-1/2″ x 20″
Weight	170 lbs

“
