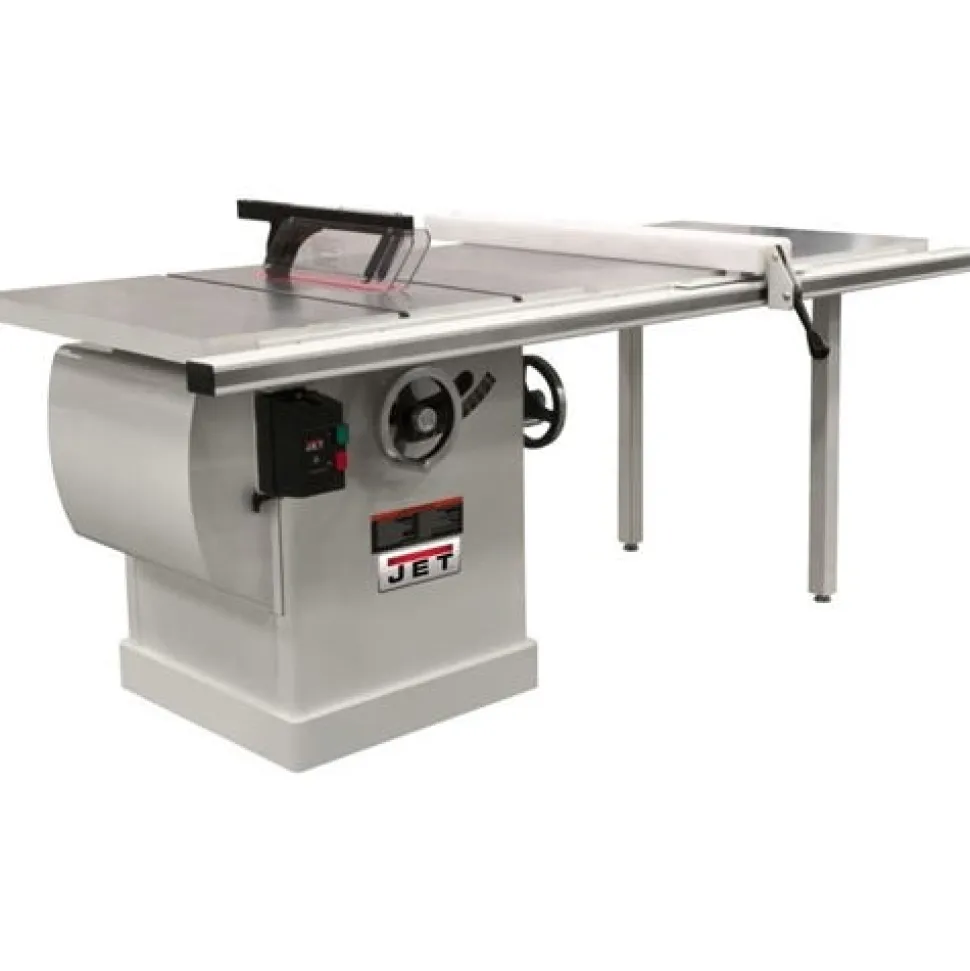

Jet JTAS-12-DX 12″ XACTA SAW 5HP 1PH 708546PK

Jet Tools

JTAS-12-DX 12 Xacta Saw 5HP 1PH 708546PK

With a riving knife and 80” of solid cast iron work surface; this saw will see you through all your projects.The JTAS-12-DX also features a maximum rip of 14” left of the blade; giving you more capacity.All of this is backed by JET’s industry-leading 5-year warranty and knowledgeable customer service professionals.

FEATURES:

• Riving knife maintains close blade proximity to reduce chance of kickback.
• 80” of solid cast iron provides a massive work surface.
• Poly V-Belt increases efficiency and reduces slipping and vibration.
• Collection shroud around the blade and integrated hose improve dust collection.
• Integrated arbor lock is accessed from table top for rapid blade change.
• External tool storage for the fence and miter gauge.
• 40-1/2” fence provides greater stability and better support when ripping.
• Maximum rip left of the blade is 14″.
• Removal of blade guard; pawls and riving knife takes only seconds.

SPECIFICATIONS:

Style (Type)	Cabinet
Blade Diameter (In.)	12
Arbor Diameter (In.)	1
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	4
Maximum Depth of Cut at 45 Degrees (In.)	2-7/8
Maximum Rip Left of Blade (In.)	14
Maximum Rip Right of Blade (In.)	50
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Size (L x W) (In.)	31-1/2 x 24
Table Size with Extension (L x W) (In.)	31-1/2 x 80
Miter Gauge Type	T-Slot with Stops
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	20

INCLUDES:

• Dado Insert

“
