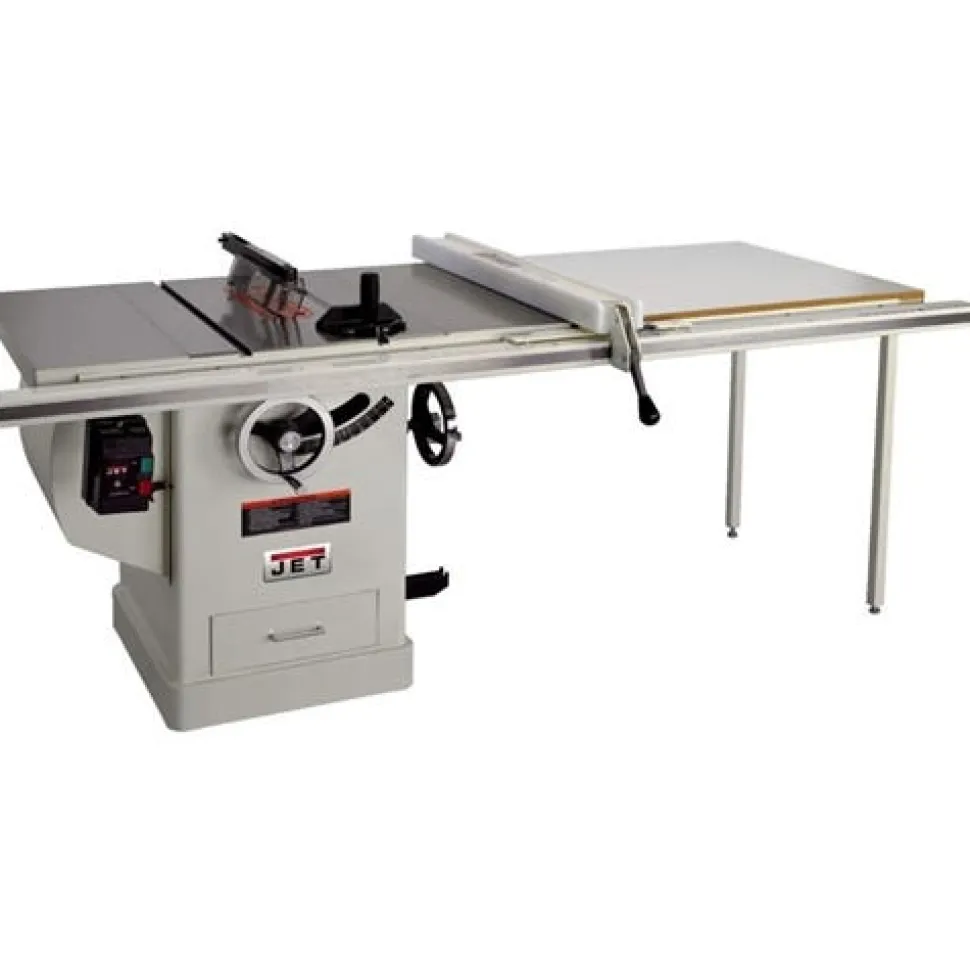

Jet JTAS-10XL-DX 10″ Deluxe Xacta Tablesaw 3HP w/ 30″ Rip Capacity 708674PK

Jet Tools

JTAS-10XL-DX 10 Deluxe Xacta Tablesaw 3HP w/ 30″ Rip Capacity 708674PK

If you’ve ever wondered about what a table saw can really do; look no further. Introducing the new JET 10″ DELUXE XACTA SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient.

FEATURES:

• EXCLUSIVE 30″ Commercial XACTA Fence II with T-square design.
• Quick release riving knife greatly reduces binding/kickback risk.
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning.
• Push button arbor lock for rapid blade change.
• Shrouded Blade increases dust collection efficiency.
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class.
• Poly-V drive belt system delivers quiet; efficient operation.
• Rail-mounted magnetic switch is easy to reach and provides overload protection.
• Enclosed cabinet with built-in sealed storage drawer.
• Hinged motor cover on cabinet gives quick access to the motor and belts.
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters.
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement.
• Left tilt; wide stance heavy-duty trunnion for stability and smooth blade positioning.
• Powder coated paint for a long-lasting; chip-resistant finish.

SPECIFICATIONS:

Style (Type)	Cabinet
Blade Diameter (In.)	10
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	3
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Rip Left of Blade (In.)	13
Maximum Rip Right of Blade (In.)	50
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Size (L x W) (In.)	29 x 20
Table Size with Extension (L x W) (In.)	29 x 42
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	14.5
Miter Gauge Type	Deluxe

INCLUDES:

• On-board fence
• Miter gauge storage

“
