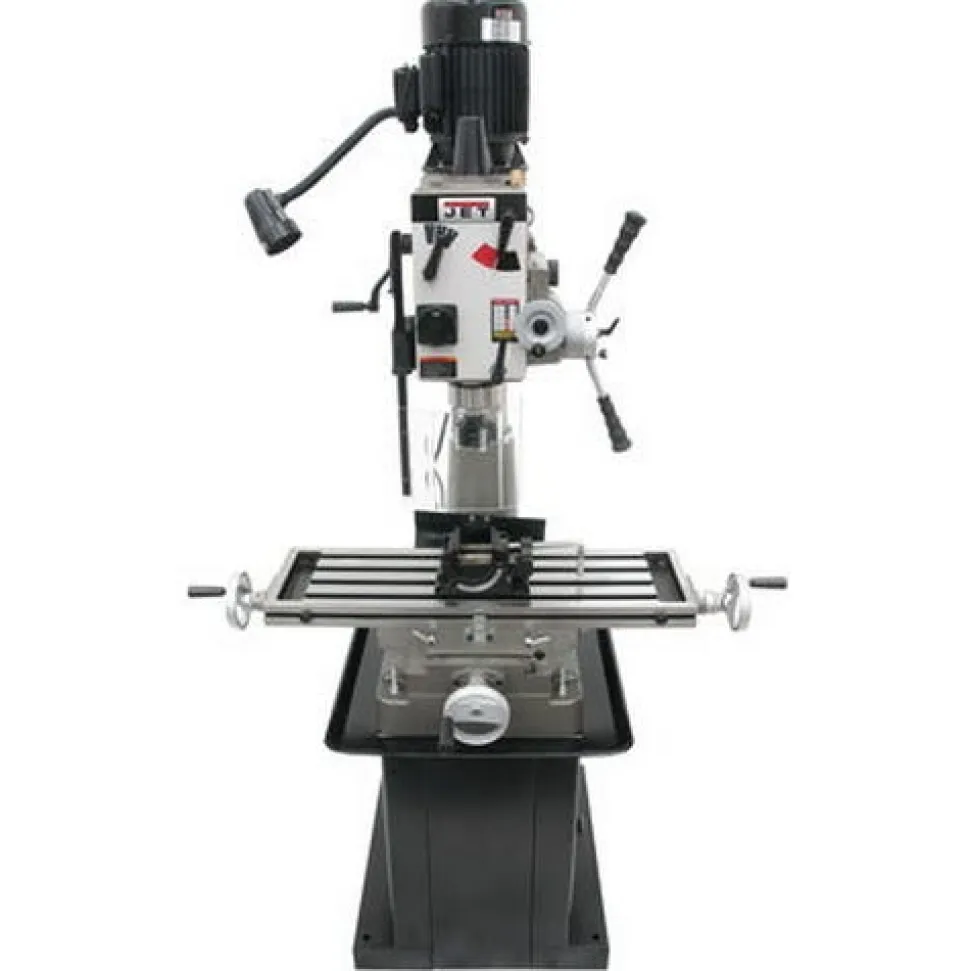

JET JMD-40GHPF Geared Head Mill Drill with Power Downfeed 351041

Name: JET JMD-40GHPF Geared Head Mill Drill with Power Downfeed 351041
Brand: JET Tools
SKU: SKUep5BXZNF9Z
Availability: InStock

$138.99

SKU: SKUep5BXZNF9Z Categories: Power Tools, Stationary Drill Press Tag: JET Tools Brand: JET Tools

Additional Details

JET
JMD-40GHPF Geared Head Mill Drill with Power Downfeed 351041
Engineered for precision drilling; the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.
Heavy-duty design allows for a variety of precision drilling applications
Full power to the cutting tools through 6 speed geared head
CSA/CUS: Following strict guidelines and electrical requirements; this JET Mill Drill is CSA/CUS certified
Spindle guard
Work Lamp
Calibrated fine down feed built in
Easy to read internal depth gauge
Head tilts left & right 90
Rapid spindle speed changes through quick-select gear shift levers
Forward/reverse switch
Power Downfeed standard
Milling table allows for movement
R8 spindle allows use of all mill tooling
Drilling Capacity (In.): 1-1/2
Face Mill Capacity (In.): 4
End Mill Capacity (In.): 3/4
Swing (In.): 21
Max Distance Spindle To Table (In.): 15-3/4
Spindle Taper (In. X Tpi): R8
Spindle Travel (In.): 5
Spindle Travel Auto (In.): 4-1/2
Quill Diameter (In.): 3
Column Diameter (In.): 4-1/2
Number Of Spindle Speeds: 6
Range Of Spindle Speeds (Rpm): 65-1550
Table Size (L X W) (In.): 8-1/4 X 28-3/4
Table Longitudinal Travel (In.): 20-1/2
T-Slots Number And Size (In.): 4 & 5/8
Base Dimensions (In.): 24-1/4 X 15-15/16
Motor (Hp): 1-1/2hp; 115/230v; 1ph
Overall Dimensions (L X W X H) (In.): 28 X 39-1/4 X 42-1/2
Weight (Lbs.): 655

Specifications

More Information
OPT SKU	JET351041
MPN	351041
UPC/GTIN	731325512854
Product Type	Stationary Drill Press
Google Category	Hardware > Tools > Drills > Drill Presses
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	721.00
