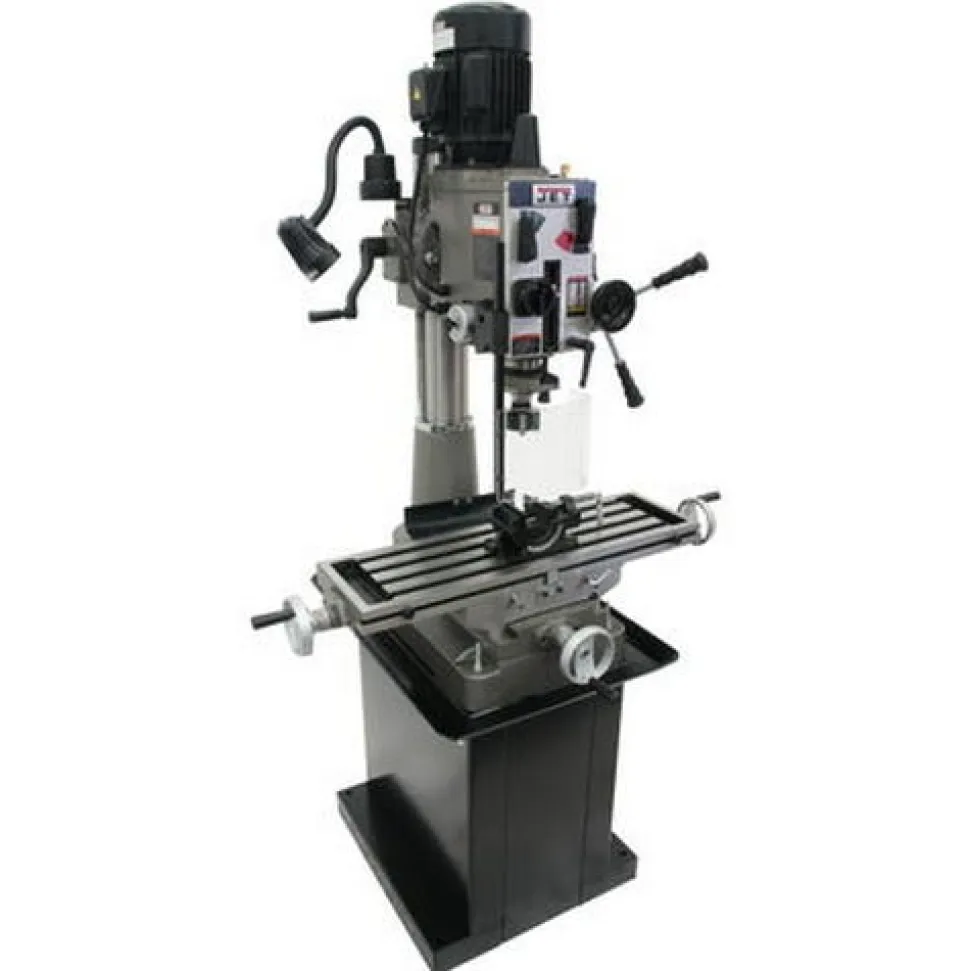

JET JMD-40GH Geared Head Mill Drill 351040

• JET
• JMD-40GH Geared Head Mill Drill 351040
• Engineered for precision drilling; the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.
• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• CSA/CUS: Following strict guidelines and electrical requirements; this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
• Drilling Capacity (In.): 1-1/4 Mild Steel
• Face Mill Capacity (In.): 4
• End Mill Capacity (In.): 3/4
• Swing (In.): 21
• Max Distance Spindle To Table (In.): 15-3/4
• Spindle Taper (In. X Tpi): R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3
• Column Diameter (In.): 4-1/2
• Number Of Spindle Speeds: 6
• Range Of Spindle Speeds (Rpm): 65; 130; 220; 480; 925; 1550rpm
• Table Size (L X W) (In.): 32-1/4 X 9-1/2″
• Table Longitudinal Travel (In.): 20-1/2
• T-Slots Number And Size (In.): 4 & 5/8 X1
• Base Dimensions (In.): 24-1/4″ X 15-15/16″
• Motor (Hp): 1-1/2hp; 115/230v; 1ph
• Overall Dimensions (L X W X H) (In.): 28 X 39-1/4 X 42-1/2
• Weight (Lbs.): 628

“
