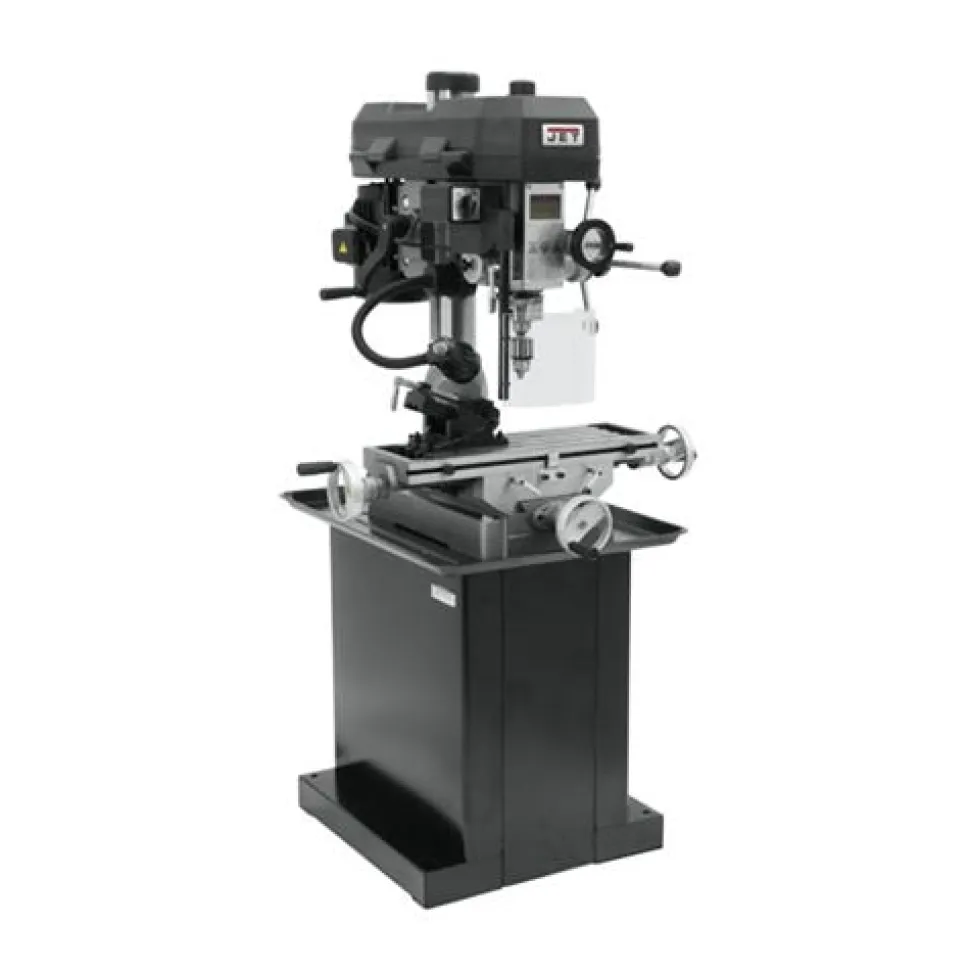

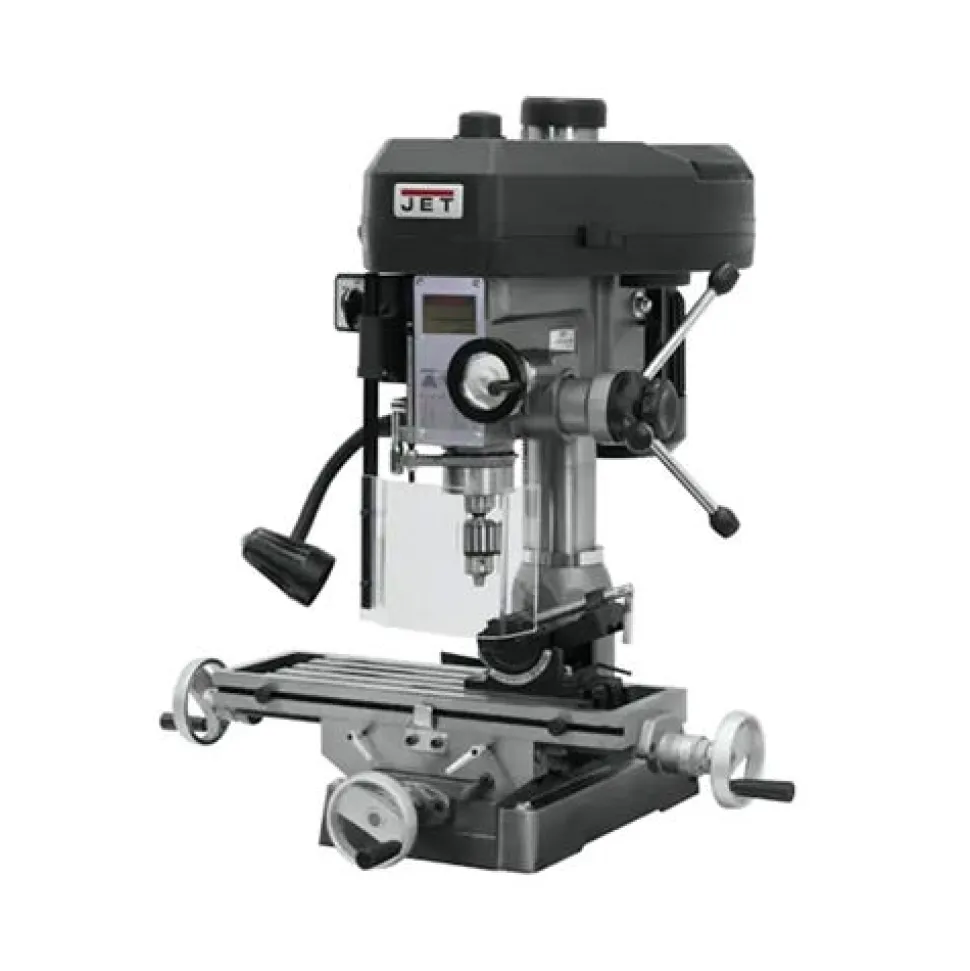

Jet JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph 350017

Jet

JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph 350017

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction; the JMD Milling Drilling Machines possess the advantages of space-saving versatility; affordability and light machining capability.

FEATURES:

• One-piece cast iron column for added support.

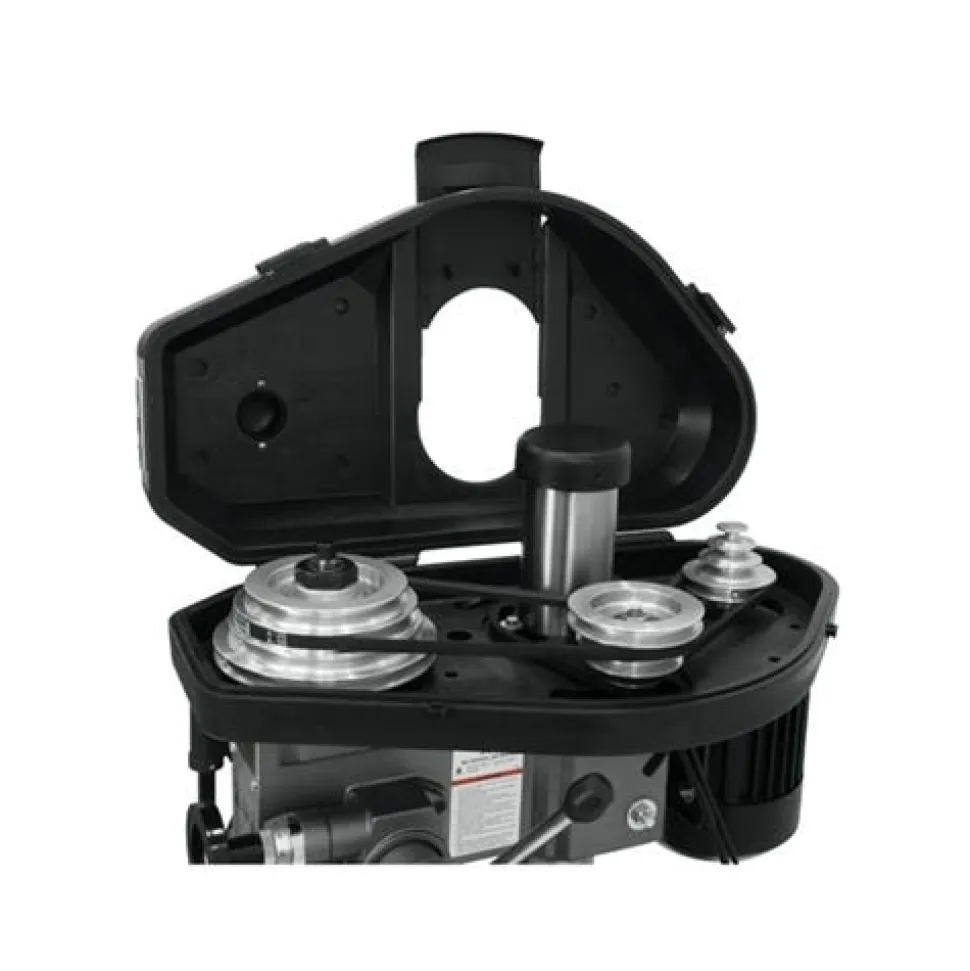

• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds.
• Drill Press angle vise.
• UL Listed motor (8201VS).

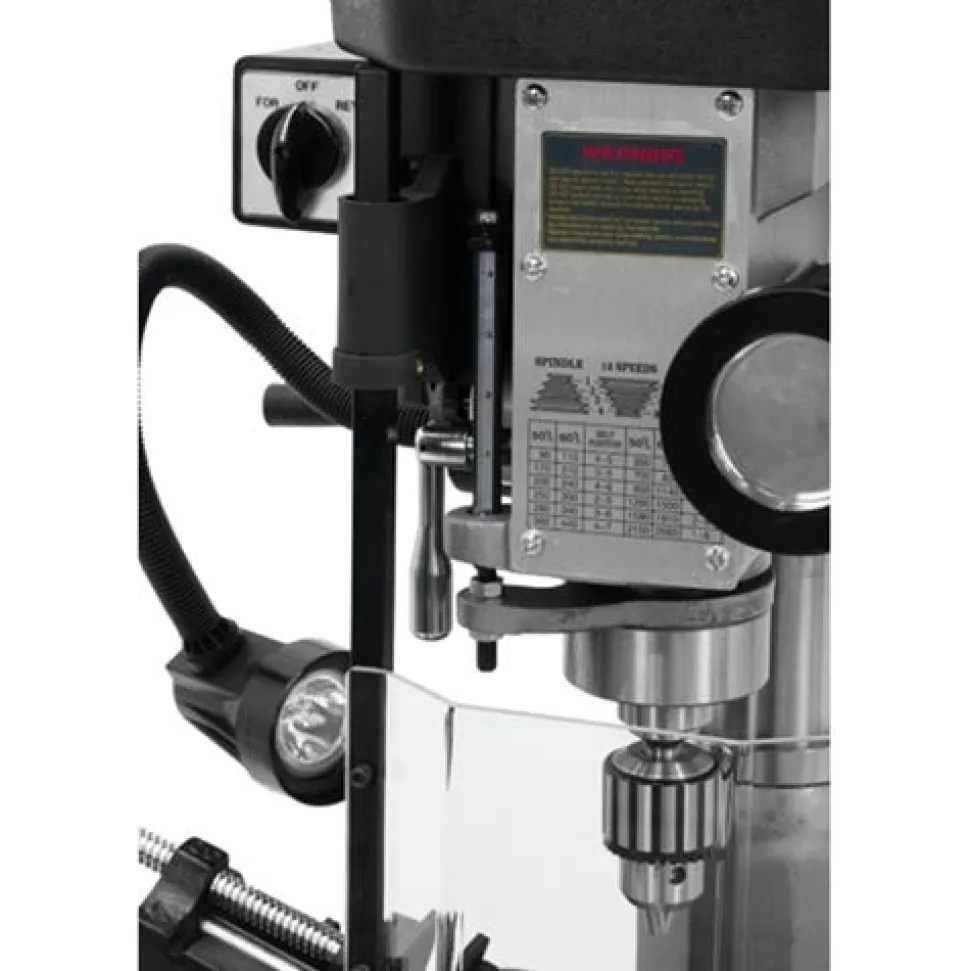

• Easy to read external depth gauge.
• 360° head swivel.
• ½” drill chuck; chuck arbor.
• Draw bar and Drill Chuck Guard.
• Adjustable Carbide facemill.

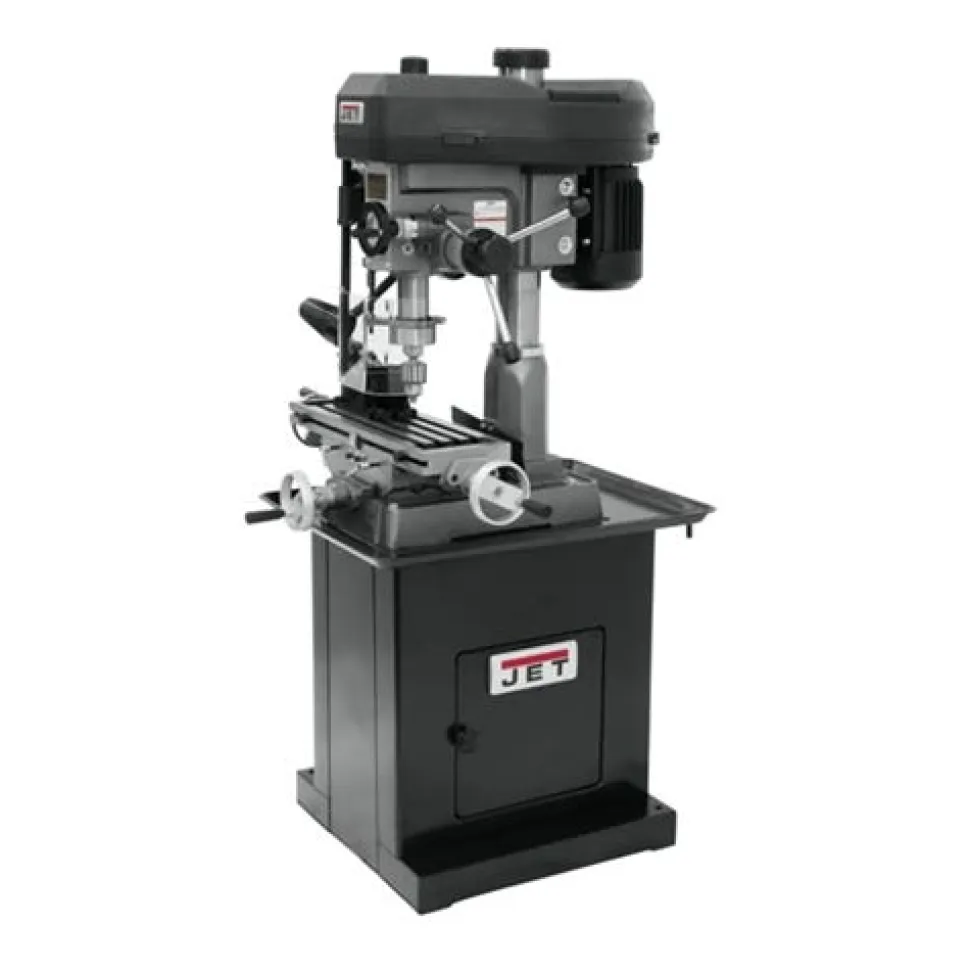

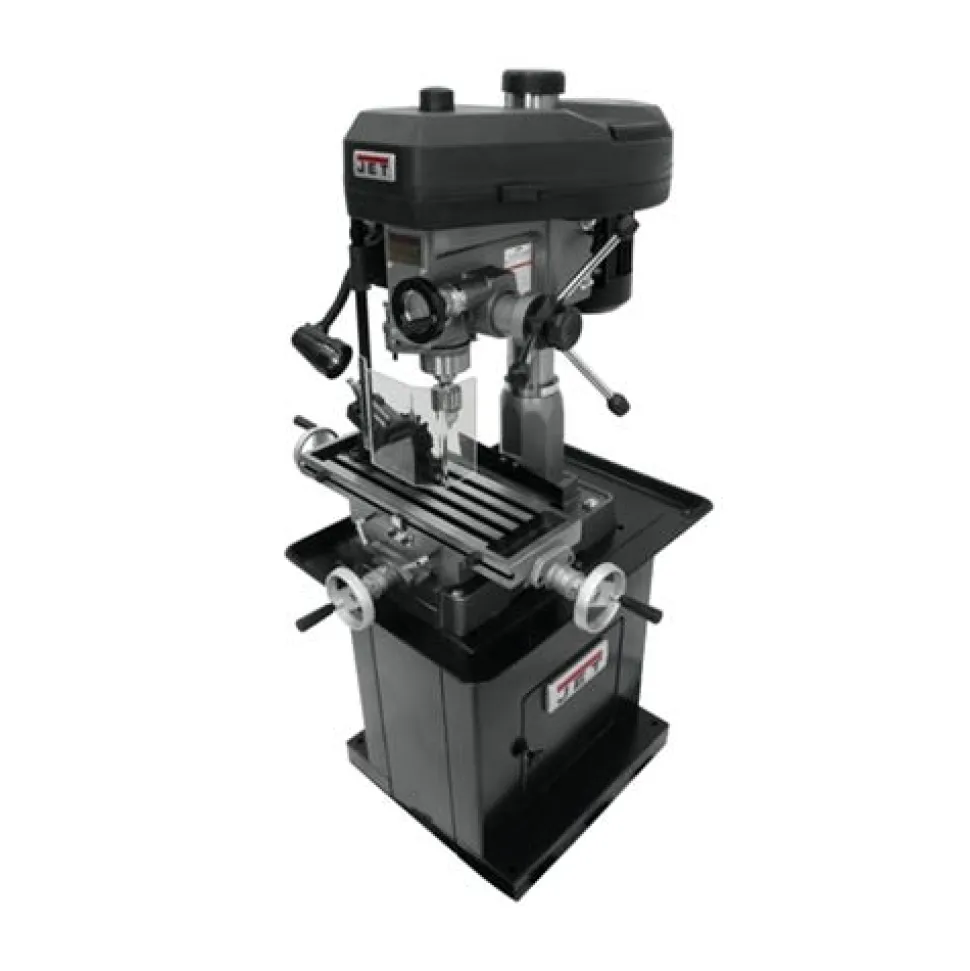

• Mill Drill Stand; p/n 320020; shown in some images; is optional.

SPECIFICATIONS:

Drilling Capacity (In.)	1
Face Mill Capacity (In.)	2-1/2
Swing (In.)	14-1/2
Max Distance Spindle to Table (In.)	14-1/2
Spindle Taper (In. x TPI)	R-8
Quill Diameter (In.)	2-7/16
Range of 12 Spindle Speeds (RPM)	110 – 2;580
Table Size (L x W) (In.)	7-1/2 x 23
Work Table Weight Capacity (Lbs.)	350
T-Slots Number and Size (In.)	4 and 9/16
Motor (HP)	1 HP; 115/230V; 1Ph
Overall Dimensions (L x W x H) (In.)	38 x 37-1/2 x 42
