JET JCT-1600 Benchtop Sand Rammer 550600

Jet Tools

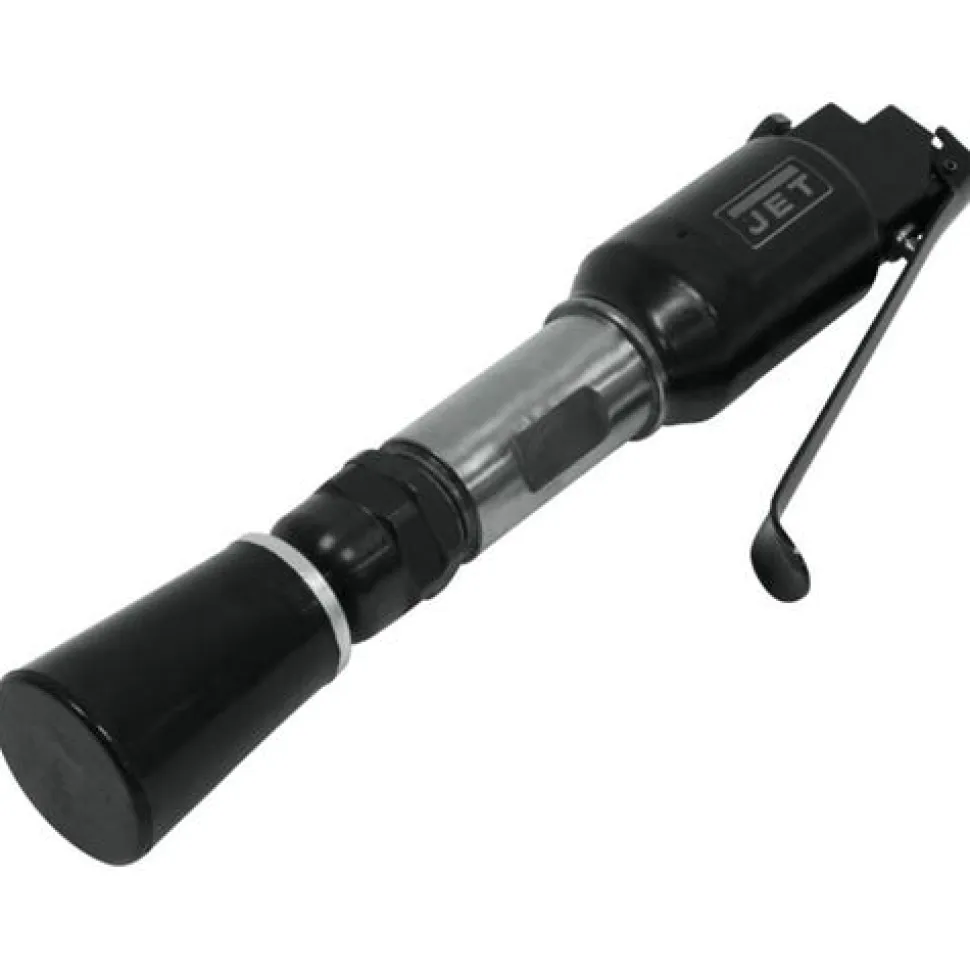

JCT-1600 Benchtop Sand Rammer 550600

JET Sand Rammers are available in bench and floor models. The bench models deliver fast; powerful blows for ramming small; medium and large forms.Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue.

FEATURES:

• Front end seal protects the piston from excessive dirt and debris extending tool life.
• Fast powerful blows for compacting small; medium and large sand molds.
• Heavy-Duty; industry proven valve design.
• All Steel cylinder housing for increased durability.
• Performance @ 90 PSI. Air Inlet NPT 1/4. Min Hose Size 3/8″.
• Butt Type: Rubber.

SPECIFICATIONS:

Blows Per Minute (BPM)	1;500
Piston Stroke (In.)	2
Bore Size (In.)	5/7
Taper (Deg.)	1.44
Butt Diameter (In.)	1-11/16
Air Pressure (PSI)	90
Air Inlet (NPT/In.)	1/4
Air Hose (ID/In.)	3/8
Air Consumption (CFM)	14
Vibration Value (m/s²)	35.04
Noise Level (dB) (A)	100.4
Overall Length (In.)	11

“
