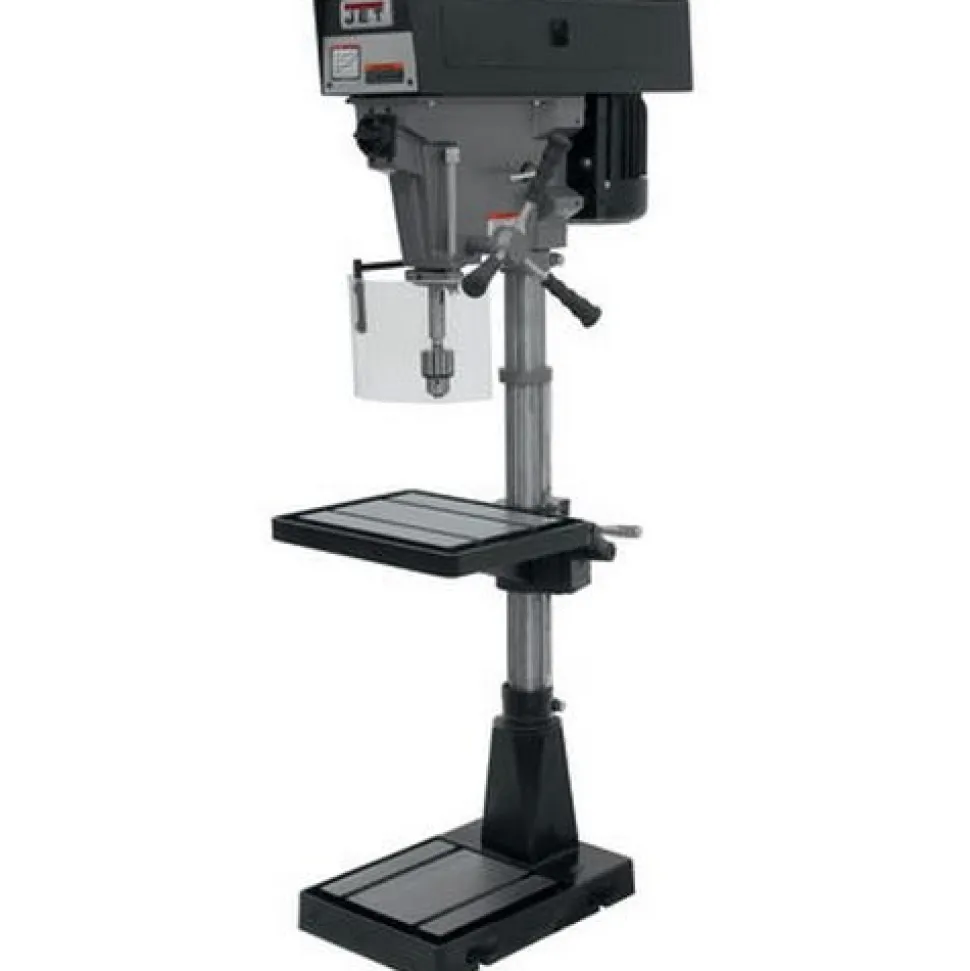

Jet J-A3816 15″ Metalworking 6-Speed Drill Press 354500

• Jet Tools
• Constructed to provide a solid base for drilling
• Offers a greater range in spindle speeds than others in this class
• Larger quill provides greater accuracy
• Large production work table gives the operator the room to work and support for the job
• 3 Column for head support; while the quill is also supported to lessen deflection
• Includes 1/2″ drill chuck and arbor
• Specifications
• Stock Number: 354500
• Model Number: J-A3816
• Drilling Capacity Cast Iron: 5/8″
• Drilling Capacity Mild Steel: 1/2″
• Column Diameter: 3″
• Distance Column to Spindle: 15″
• Range of Spindle Speeds: 375-5000
• Spindle Travel: 6″
• Spindle Distance to Base: 44-1/2″
• Max Distance Spindle to Table: 25-3/4″
• Table Size: 15 x 18
• Table Travel: 16-3/4″
• T-slots Number and Size: 2 & 1/2″
• T-slot Centers: 5-5/16″
• Worktable Weight Capacity: 90 lbs.
• Spindle Taper: MT-2
• Base Dimensions: 20-7/8 x 14-2/26 x 3-1/8″
• Base Work Table: 12-1/8 x 1-13/16″
• Base Slots Number and Size: 2 & 1/2″
• Motor: 1 HP; 115/230VAC; 1Ph; Prewired 115V
• Overall Dimensions: 30 x 20 x 71″
• Net Weight: 394

“
