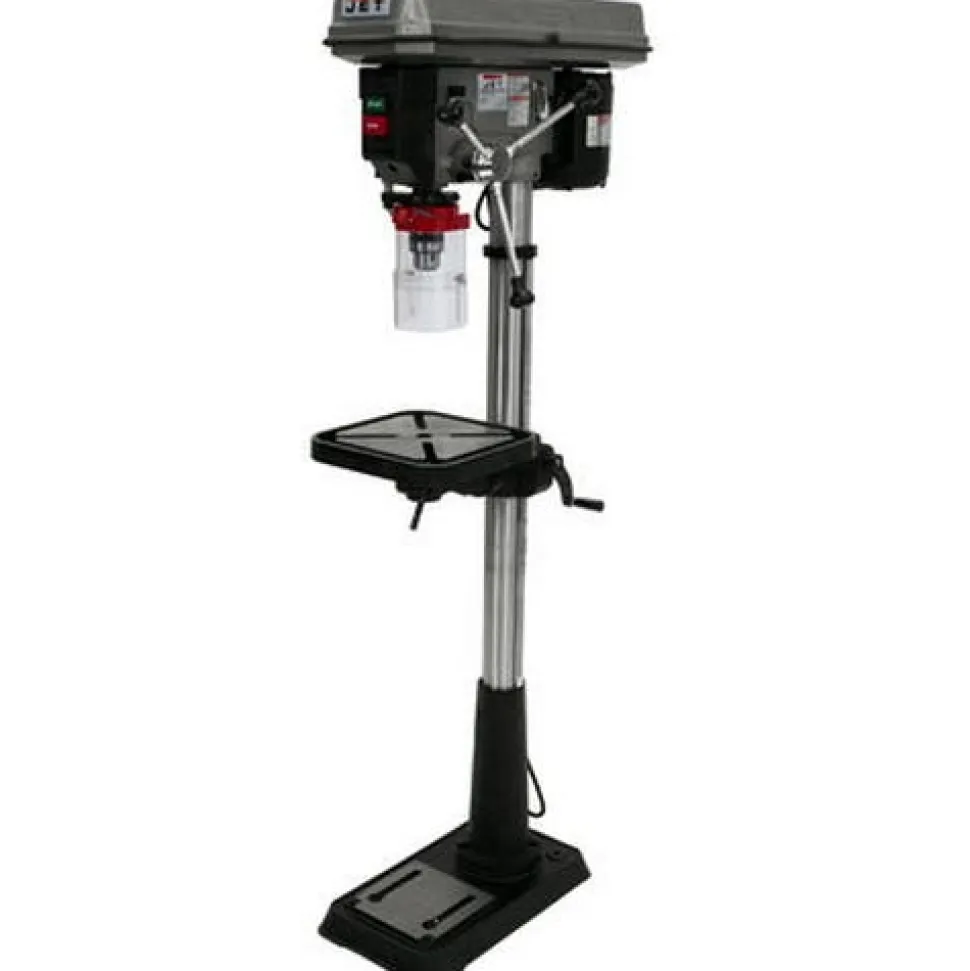

Jet J-2500 15″ Metalworking Drill Press 354400

• Jet Tools
• Cast Iron Head
• Large quill allows greater accuracy
• Head casting features a permanently lubricated ball bearing spindle assembly using four heavy duty ball bearings mounted in an enclosed quill for extended life
• Table tilts 45
• Large ground steel column diameter for maximum head and table support
• 3-1/8 stroke for deep hole applications
• Accurate depth stop for precise hole depths
• Includes 5/8″ chuck and arbor
• Specifications
• Stock Number: 354400
• Model Number: J-2500
• Drilling Capacity Cast Iron: 5/8″
• Drilling Capacity Mild Steel: 1/2″
• Column Diameter: 2-7/8″
• Distance Column to Spindle: 7-1/2″
• Range of Spindle Speeds: 200-30 RPM
• Spindle Travel: 3-1/8″
• Spindle Distance to Base: 48″
• Spindle Distance to Table: 24″
• Table Size: 11-1/2 x 11-1/2″
• Table Travel: 24″
• Work Table Weight Capacity: 44 lbs.
• Spindle Taper: MT-2
• Base Dimensions: 11 x 19-1/2″
• Base Work Table: 7 x 7-1/2″
• Motor: 3/4 HP; 1 Ph; 115V
• Overall Dimensions: 31 x 13 x “
• Net Weight: 167 lbs.

“
