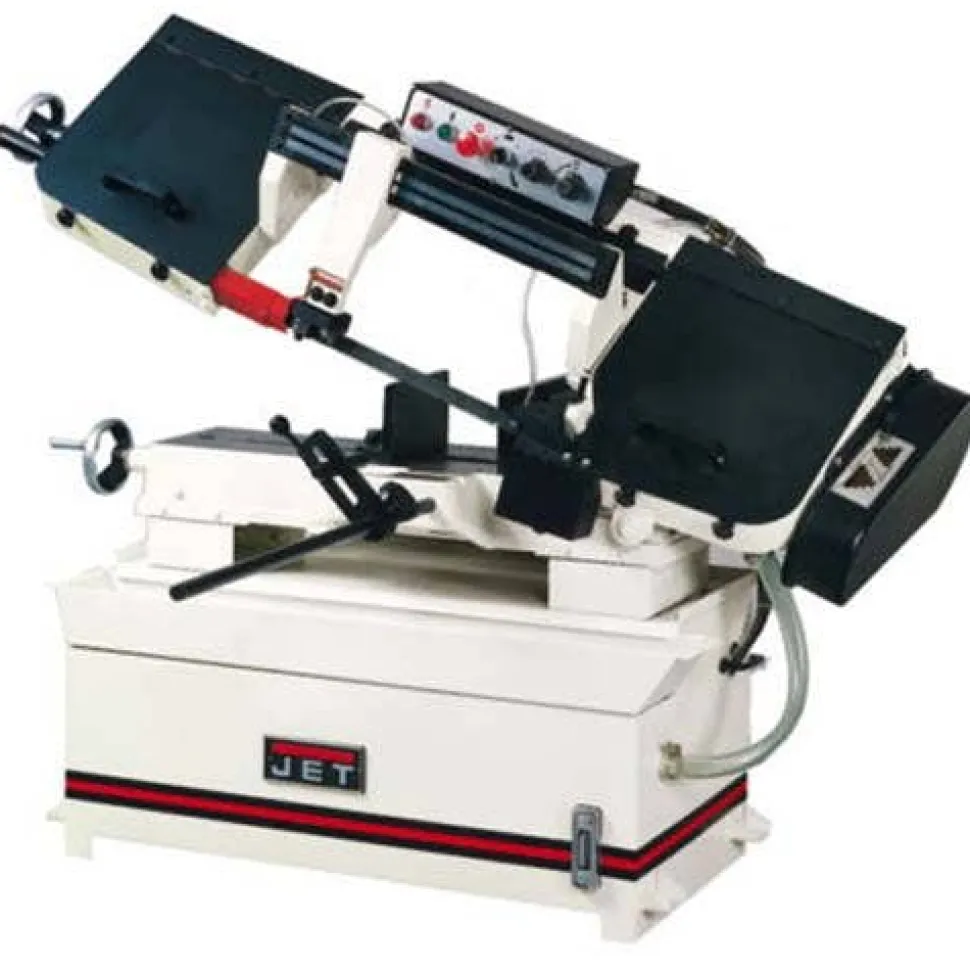

Jet HBS-916W 9″ x 16″ Horizontal Bandsaw 115/230V 1Ph 414468

• Jet
• HBS-916W; 9 x 16″ Horizontal Bandsaw 414468
• Large handwheel; built-in gauge; blade guides; quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency; precision and functionality combined to deliver superior results time after time
• Large hand wheel and built-in gauge provides easy blade tensioning
• Quick-positioning vise with fully adjustable jaws; swivels to 45
• Easy access chip tray allows quick cleanup
• Blade is fully guarded; regardless of blade guide position
• Carbide blade guides feature parallel double-row ball bearing support
• Coolant is distributed through the blade guides
• Built-in; self propelled blade brush extends blade life
• Fully adjustable hydraulic downfeed with separate on/off control valve
• Automatic shut-off after cut
• Coolant system
• Adjustable material stop
• 4/6 VT Bi-Metal blade
• Cutting Capacity (W x D) (In.) 9 x 16
• Round at 90 Degrees (In.) 9
• Round at 45 Degrees (In.) 6-1/8
• Rectangle at 90 Degrees (In.) 8-1/2 x 14 and 2 x 16
• Rectangle at 45 Degrees (In.) 9 x 6-1/8
• Vise Swivels (Deg.) 45
• Blade Speeds (SFPM) 82; 132; 170; 235
• Blade Wheel Diameter (In.) 13
• Blade Length (In.) 119-1/2
• Blade Size (In.) 1 x .035 x 119-1/2
• Bed Height (In.) 25
• Motor (HP) 1-1/2 HP; 115/230V; 1Ph
• Weight (Lbs.) 704
• Overall Dimensions (L x W x H) (In.) 65 x 28 x 42

“
