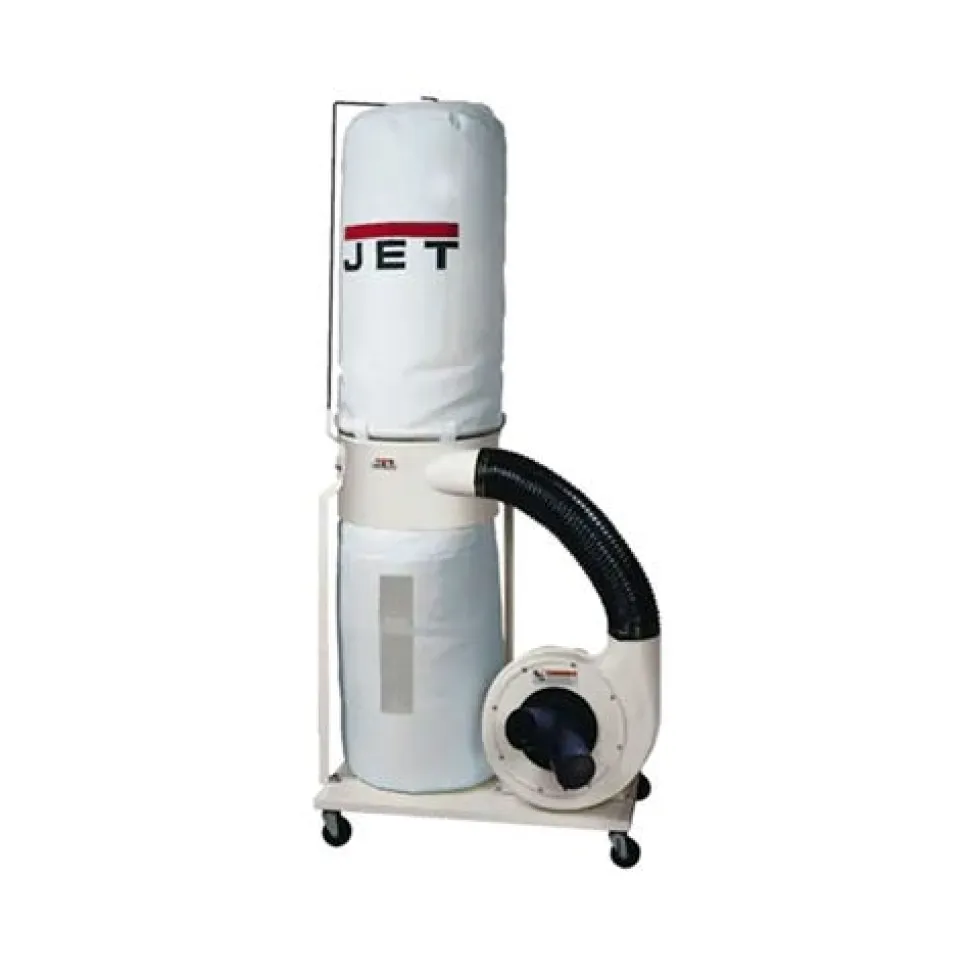

Jet DC-1100VX-BK Dust Collector; 1.5HP 1PH 115/230V; 30-Micron Bag Filter Kit 708657K

Jet

DC-1100VX-BK Dust Collector; 1.5HP 1PH 115/230V; 30-Micron Bag Filter Kit 708657K

The JET DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter; and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications; and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop. Visit http://www.vortexcone.com for more information.

FEATURES:

• Vortex Cone improves chip separation and collector bag packing efficiency.
• Eliminates premature filter clogging for sustained performance.
• Single-stage design for economical and quiet operation.
• Industrial controls designed for years of trouble-free use.
• Quick-connect collection bags with elastic band for fast; easy installation and removal.
• High air velocity (CFM) design stands up to any competitive specifications.
• Permanently lubricated; totally enclosed; fan-cooled motors are rated for continuous-duty.
• Includes four casters for maneuverability and total portability.

SPECIFICATIONS:

Number of Air Inlets	1 at 6; 2 at 4″
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Air Flow @ 4″ (CFM)	1100
Style (Type)	Bag
Efficiency (Micron)	30
Collection Bag Capacity (Cu. Ft.)	5-3/10
Impeller Material	Steel
Sound Rating (Db.)	70 – 80
Motor Power (HP)	1-1/2
Motor Voltage (V)	115/230
Motor Amps	11/5.5

“
