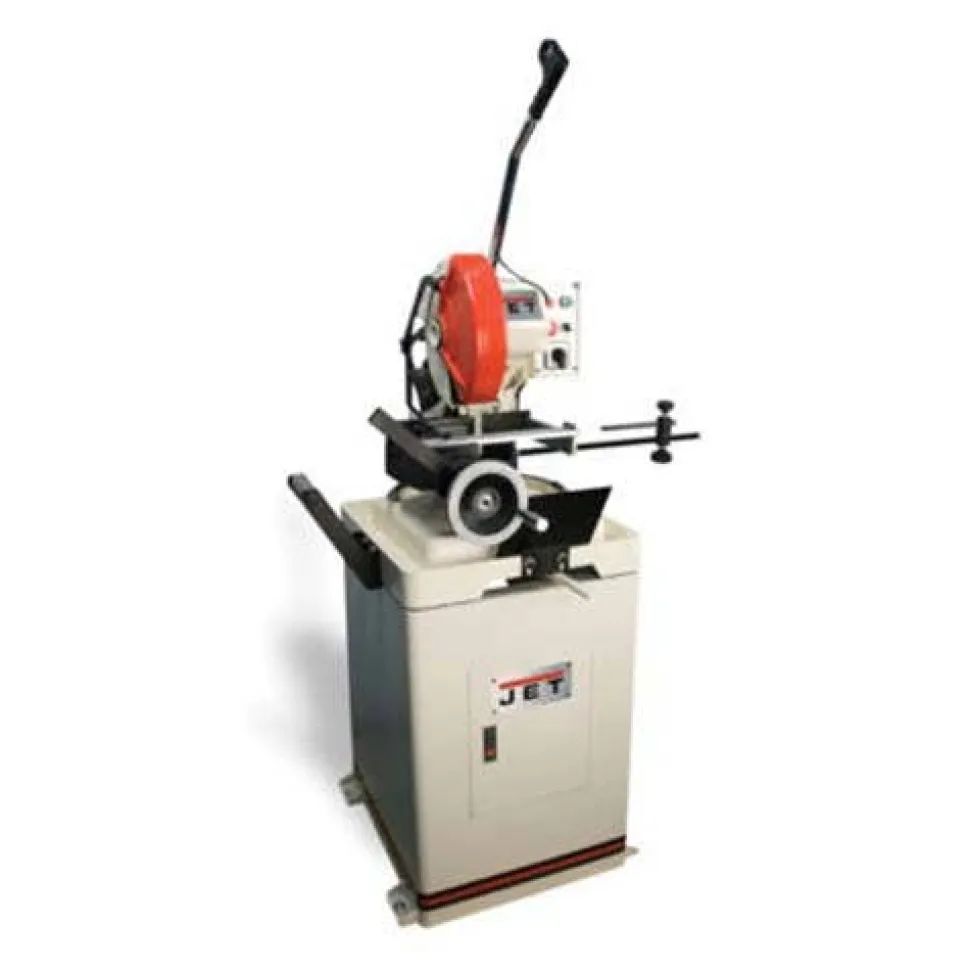

Jet CS-315 315mm Ferrous Manual Cold Saw 414227

$120.89

SKU: SKUBUO4eu5mij Categories: Chop Saws, Power Tools Tag: JET Tools Brand: JET Tools

Description
Reviews (0)

Additional Details

Jet
CS-315; 315mm Ferrous Manual Cold Saw 414227
JET Coldsaws deliver clean; burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that youve come to expect from JET. All backed by the industry leading full service Two Year Warranty
Now available in Single Phase 230V
Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
Blade drive reduction gearbox operates in an oil bath for increaded durability
Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
Quick tension and release mitering capabilities with stops at 45 right; 45 left
Fully adjustable material depth stop for sawing repeatability and increased production
Style (Type) Ferrous
Blade Speeds (RPM) 52; 104
Tubing Round at 90 Degrees (In.) 3-1/2
Tubing Round at 45 Degrees (In.) 3-1/2
Tubing Square at 90 Degrees (In.) 3-1/5 x 3-1/5
Tubing Square at 45 Degrees (In.) 2-3/5 x 2-3/5
Tubing Rectangle at 90 Degrees (In.) 4 x 3-1/5
Tubing Rectangle at 45 Degrees (In.) 2-1/5 x 2-3/5
Solid Round at 90 Degrees (In.) 3-1/2
Solid Round at 45 Degrees (In.) 3-1/2
Solid Square at 90 Degrees (In.) 3-1/5 x 3-1/5
Solid Square at 45 Degrees (In.) 2-3/5 x 2-3/5
Solid Rectangle at 90 Degrees (In.) 4 x 3-1/5
Solid Rectangle at 45 Degrees (In.) 2-1/5 x 2-3/5
Blade Size (Mm.) 315 x 32 x 2
Maximum Vise Opening (In.) 4-5/7
Motor (HP) 2 HP; 230V; 3Ph
Overall Dimensions (L x W xH) (In.) 40 x 39 x 72
Weight (Lbs.) 420

Specifications

More Information
OPT SKU	JET414227
MPN	414227
UPC/GTIN	662756127853
Product Type	Chop Saws
Google Category	Hardware > Tools > Saws > Cut-Off Saws
Diameter	12″
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	512.00
