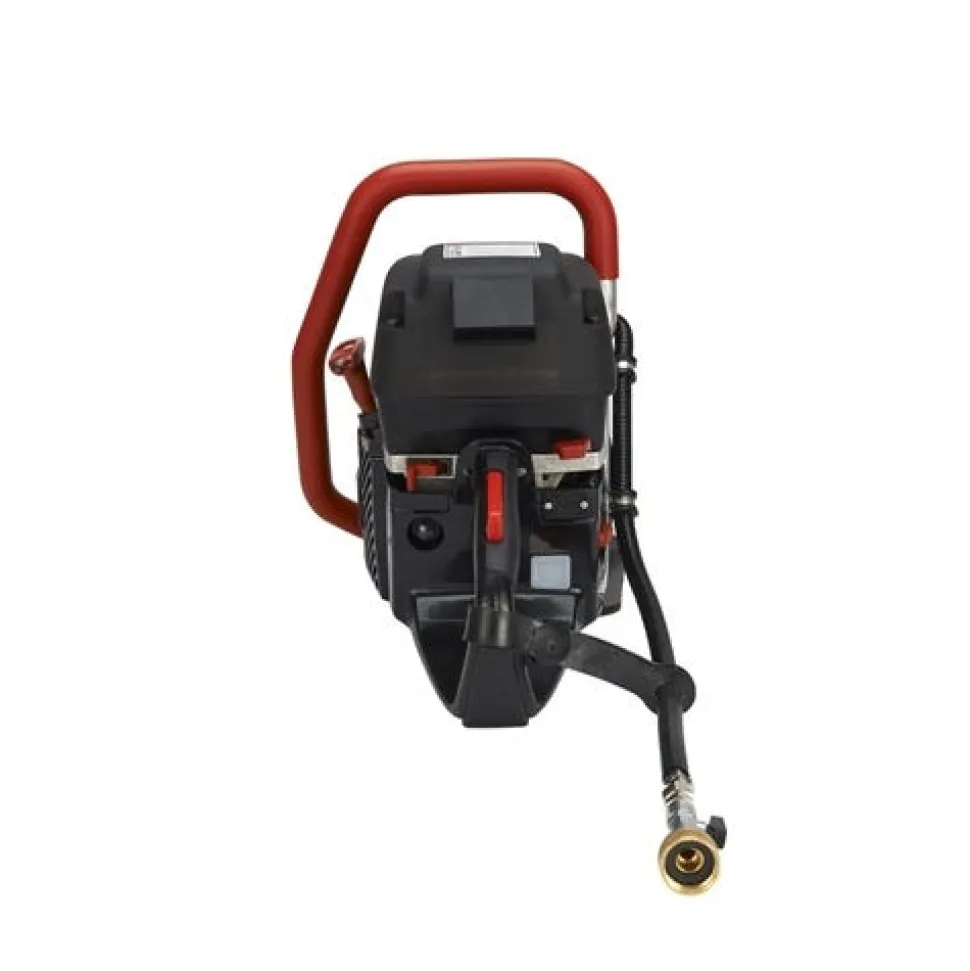

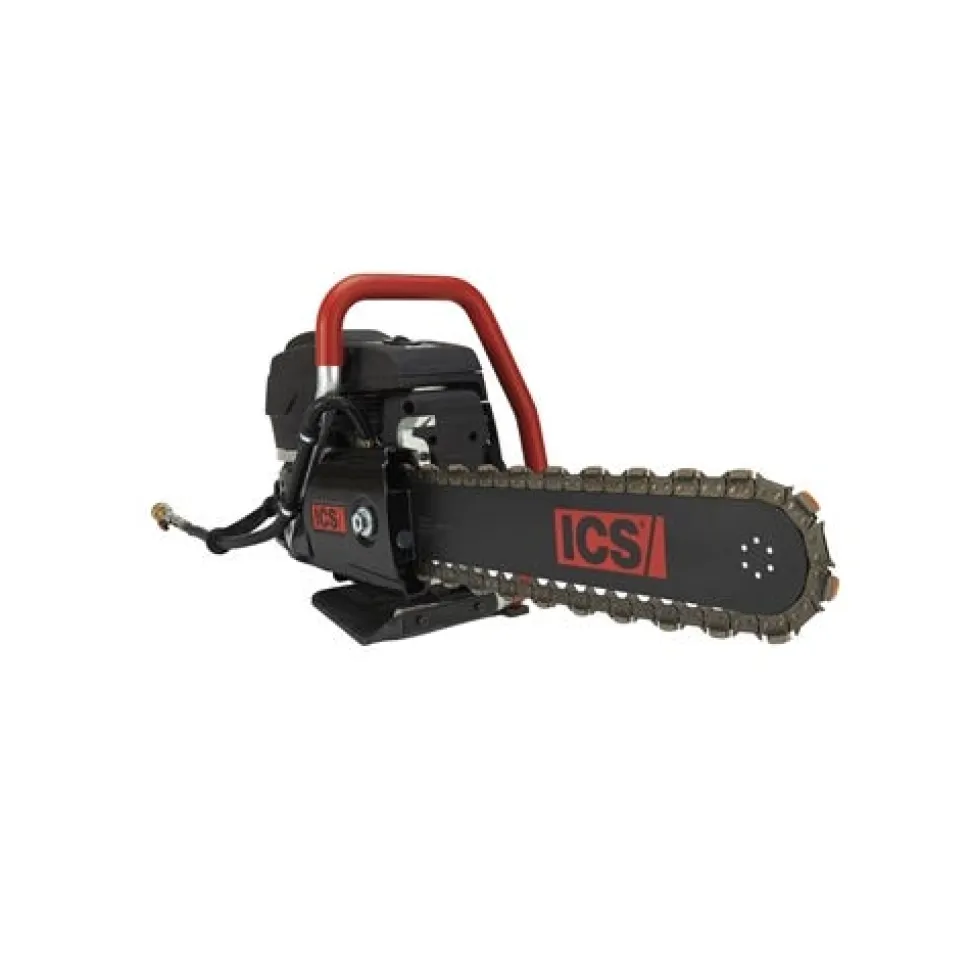

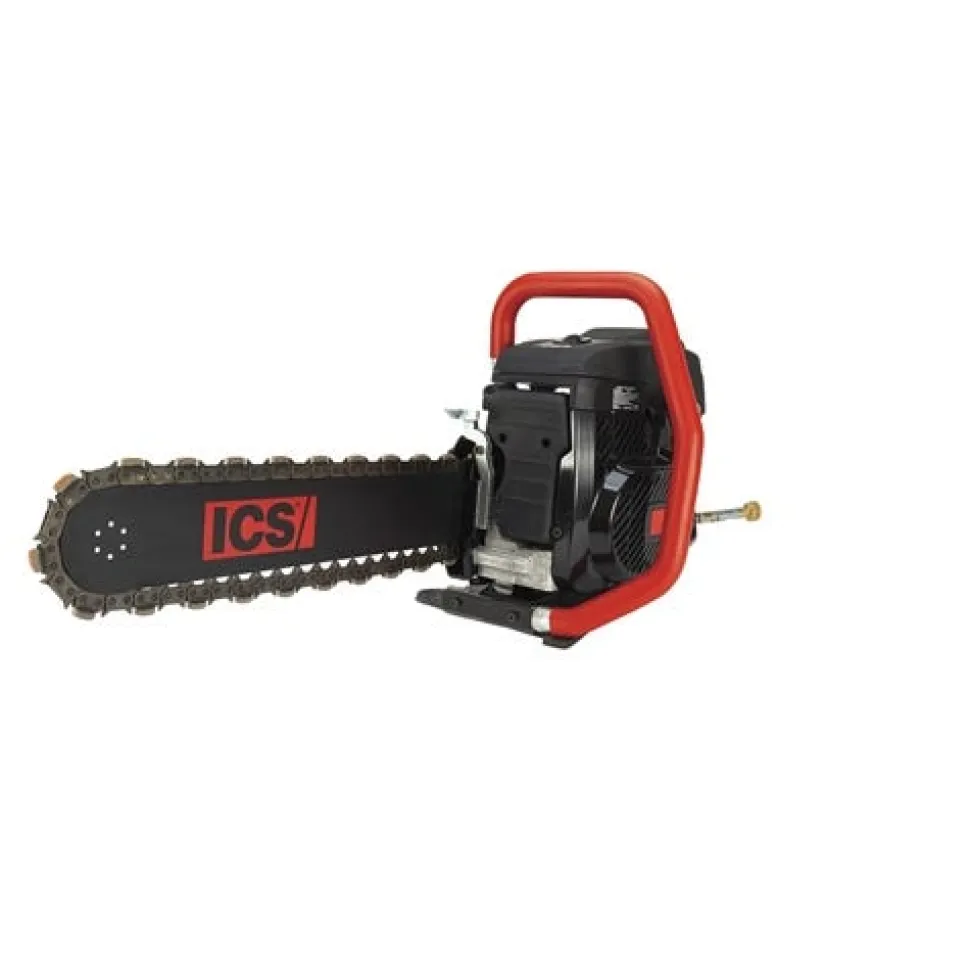

ICS Concrete Chain Saw 695XL 16″ Gas Power PowerGrit Chain 575827

** Non-Returnable After First Use **

ICS Concrete Chain Saw 695XL 16″ Gas Power PowerGrit Chain 575827

FEATURES:

The new 695XL features include an easy to start engine with higher energy ignition system and durable; long-lasting components including a new muffler; carburetor and piston & cylinder. Available with 12-inch (30 cm) – 16-inch (40cm) guidebars and the entire line of MAX; ProForce and PowerGrit series diamond chains. Based on the best-selling 695 saw platform; the 695XL is the highest horsepower ICS gas saw for frequent-use by general construction; utility contractors and concrete professionals.

• Use on concrete; stone; masonry; ductile iron pipe; cast iron pipe and more
• Most versatile gas-powered saw
• New piston and cylinder lowers engine temperature
• Longer life muffler with reinforced internal baffle
• Easy-to-start with higher energy ignition system
• New easy-to-tune carburetor
• POWERHEAD: 695XL F4 575826
• BAR: 16″ (40cm) 524490
• CHAIN: 16″ PowerGrit Chain 537764
• Engine Type: 2-Stroke; Air Cooled
• Displacement: 94cc (5.7 cu-in)
• Horsepower: 4.8kW (6.4 hp) @ 9000 rpm
• Torque: 5.7 Nm (50.4 in-lbs) @ 7200 rpm
• Engine Speed: 9;300 +/- 150 rpm (max)/2;700 +/- 100 rpm (idle)
• Chain Speed at Maximum Power: 28 m/s (5500 ft /min)
• Weight: 9.5 kg (21 lbs) powerhead only
• Dimensions: 46cm (18″) L x 36cm (14″) H x 30cm (12″) W
• Starter: Recoil; dust and water resistant
• Ignition: Special water resistant electronic ignition
• Fuel ratio: 2% (50:1) gasoline-to-oil
• Fuel Capacity: 1 liter (0.26 gallon)
• Water Supply Requirement: Minimum: 1.5 bar (20 psi)
• Water Flow Requirement: Minimum: 4 lpm (1 gpm)
• Guaranteed Sound Power Level; Lwa (1): 115 dB(A); (Kwa=1.0 dB(A))
• Equivalent Sound Pressure at the Operator’s Ear Lwa: 104.6 dB(A) (K=1.0 dB(A))
• Vibration; ahv eq Concrete Cutting (2): 3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle
• Vibration; ahv eq Pipe Cutting (2): 5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle
• Recommended for pre cutting: HD MAXX ORANGE WET/DRY HIGH SPEED BLADE 12″ X .235

Chain Selection Chart:

“
