Hougen Metal Hole Punch Pro (1/2" Max Thick) 75006PR

Hougen Metal Hole Punch Pro (1/2″ Max Thick) 75006PR

$132.99

SKU: SKUEv2ZxJ2R7F Categories: Power Tools, Punches & Pressing Tag: Hougen Tools Brand: Hougen Tools

Description
Reviews (0)

Additional Details

Hougen

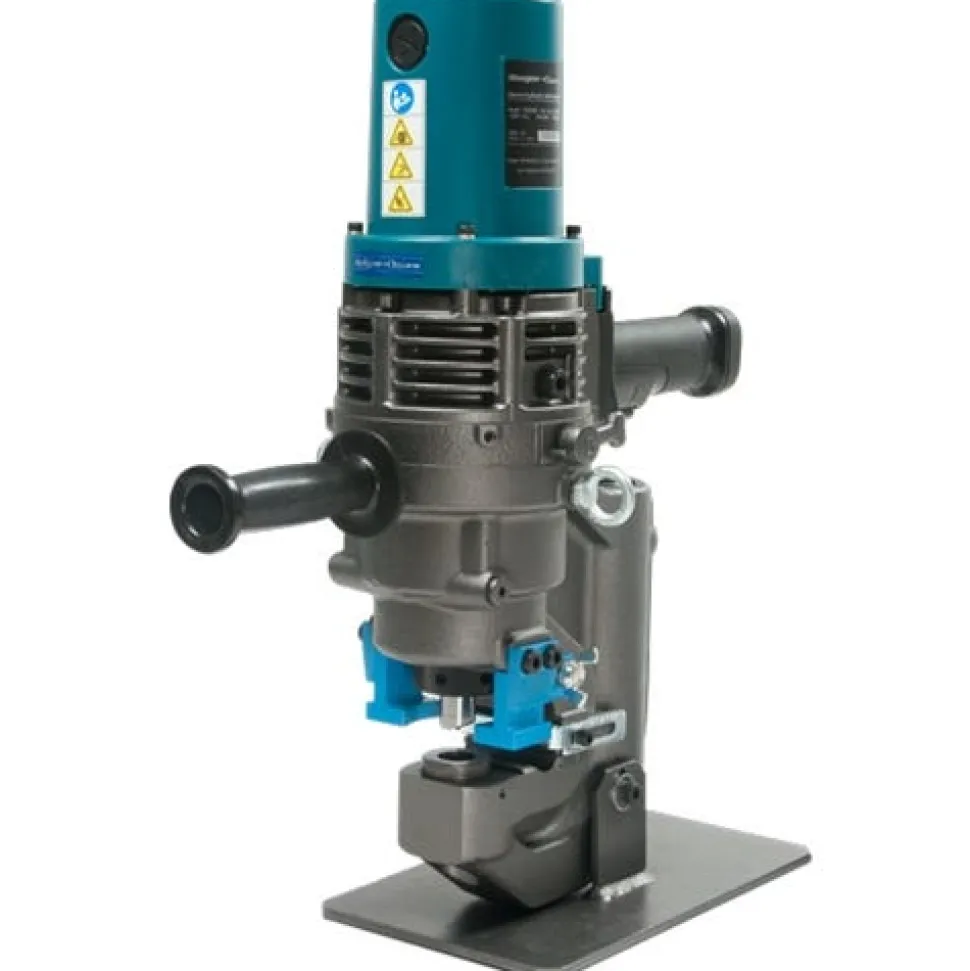

Hougen Metal Hole Punch Pro (1/2 Max Thick) 75006PR

Our heaviest duty model; the 75006PR develops 26.9 tons of pressure and will produce up to 15/16″ round holes and can punch through material up to 1/2″ thick material in approximately 4 seconds.

FEATURES:

Has eyebolts on both sides for easy attachment of a lift assist or a counter-balancer for improved ergonomics.
Single body design makes it easy to use anywhere.
Easily confirm the hole position with the jog down feature.
Punch automatically returns to the start”g position after the punch”g cycle is complete.

*If the punch ever resists returning to the home position; squeeze the trigger for the power feed return.*

SPECIFICATIONS:

Pressure (Tons)	26.9
Approx. Punching Speed	4 secs
Max Hole Size – Round	15/16″ – (23.8mm)
Max Hole Thickness – Round	1/2 ” – (12.7mm)
Max Hole Size – Oblong	11/16″ x 13/16″ (18mm x 21mm)
Max Hole Thickness – Oblong	1/2″ – (12.7mm)
Max Throat Depth	1-31/32″ – (50mm)
Weight (less work stand)	62.9 lbs – (28.5 kg)
Shipping Weight	82.6 lbs – (37.5 kg)

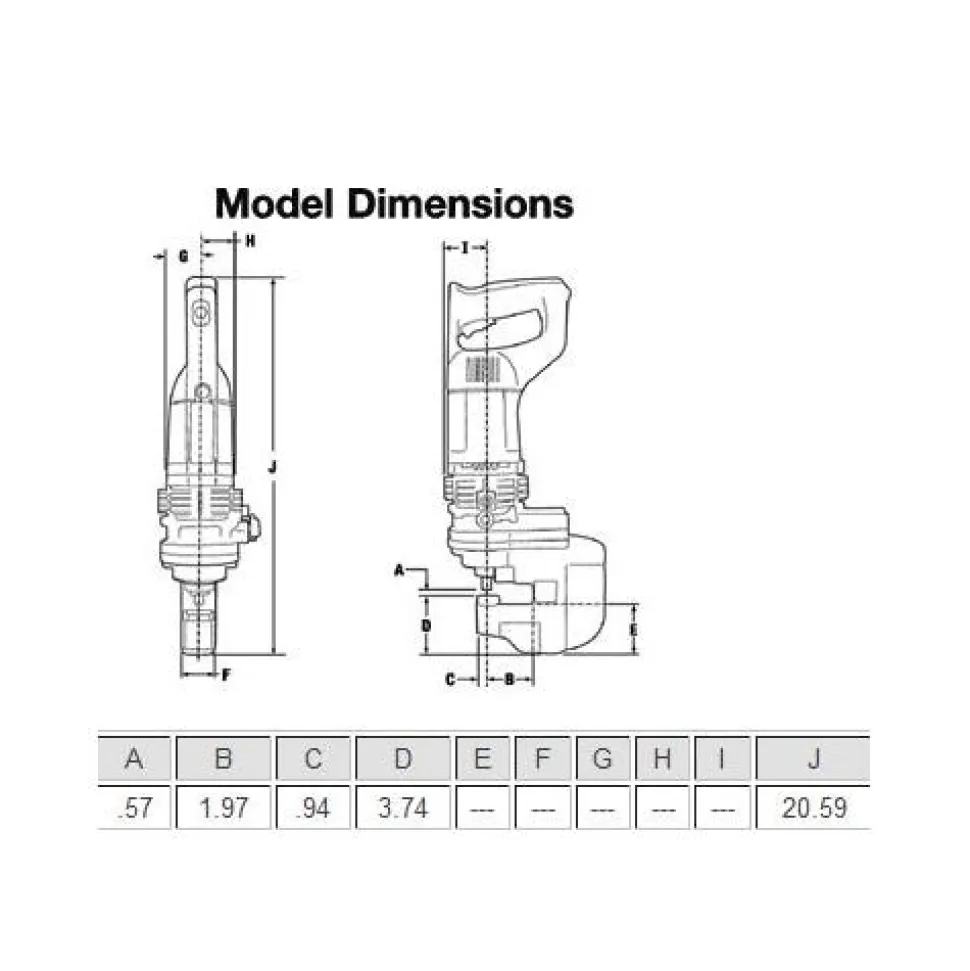

Dimensions	20.59″ L x 6.3″ W x 18.23″ D

ROUND PUNCH				MATERIAL		DIE
Size			Part No.	Thickness	Style	Size	Part No.
Nomal	Actual	Metric	Part No.	Thickness	Style	Size	Part No.
7/16″	.433	11mm	759	14 to 11 GA	F;A;H	Die 7/16 SA	75578
				14 to 3 GA	F;A;H	Die 7/16 SB	75579
				5/16	C	Die 7/16 CC	75616
1/2″	.512	13mm	760	14 to 11 GA	F;A;H	Die 1/2 SA	75581
				14 to 3 GA	F;A;H	Die 1/2 SB	75582
				5/16	C	Die 1/2 CC	75617
9/16″	.551	14mm	761	14 to 11 GA	F;A;H	Die 9/16 SA	75584
				14 to 3 GA	F;A;H	Die 9/16 SB	75585
				5/16	F;A;H	Die 9/16 SB	75618
5/8″	.625	15.9mm	762	14 to 11 GA	F;A;H	Die 5/8 SA	75588
				14 to 3 GA	F;A;H	Die 5/8 SB	75589
				5/16	C	Die 5/8 CC	75620
11/16″	.688	17.5mm	7	14 to 11 GA	F;A;H	Die 3/8 SA	75592
				14 to 3 GA	F;A;H	Die 11/16 SB	75593
				5/16	C	Die 11/16 CC	75622
3/4″	.750	19mm	764	14 to 11 GA	F;A;H	Die 3/4 SA	75596
				14 to 3 GA	F;A;H	Die 3/4 SB	75597
				5/16″	C	Die 3/4 CC	75624
25/32″	.787	20mm	75365	14 to 11 GA	F;A;H	Die 25/32 SA	75600
				14 to 3 GA	F;A;H	Die 25/32″ SB	75601
				5/16	C	Die 25/32″ CC	75626
13/16″	.812	20.6mm	766	14 to 11 GA	F;A;H	Die 13/16 SA	75604
				14 to 3 GA	F;A;H	Die 13/16 SB	75605
				5/16″	C	Die 13/16 C	75628
7/8″	.875	22.2mm	767	14 to 11 GA	F;A;H	Die 7/8 SA	75608
				14 to 3 GA	F;A;H	Die 7/8 SB	75609
				5/16″	C	Die 7/8 CC	750
15/16″	.938	23.8mm	768	14 to 11 GA	F;A;H	Die 15/16 SA	75612
15/16″	.938	23.8mm	768	14 to 3 GA	F;A;H	Die 15/16 SB	75613

“

Specifications

More Information
OPT SKU	HOU0756102
MPN	75006PR
UPC/GTIN	662850021972
Product Type	Punches & Pressing
Google Category	Hardware > Tools
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	65.00
