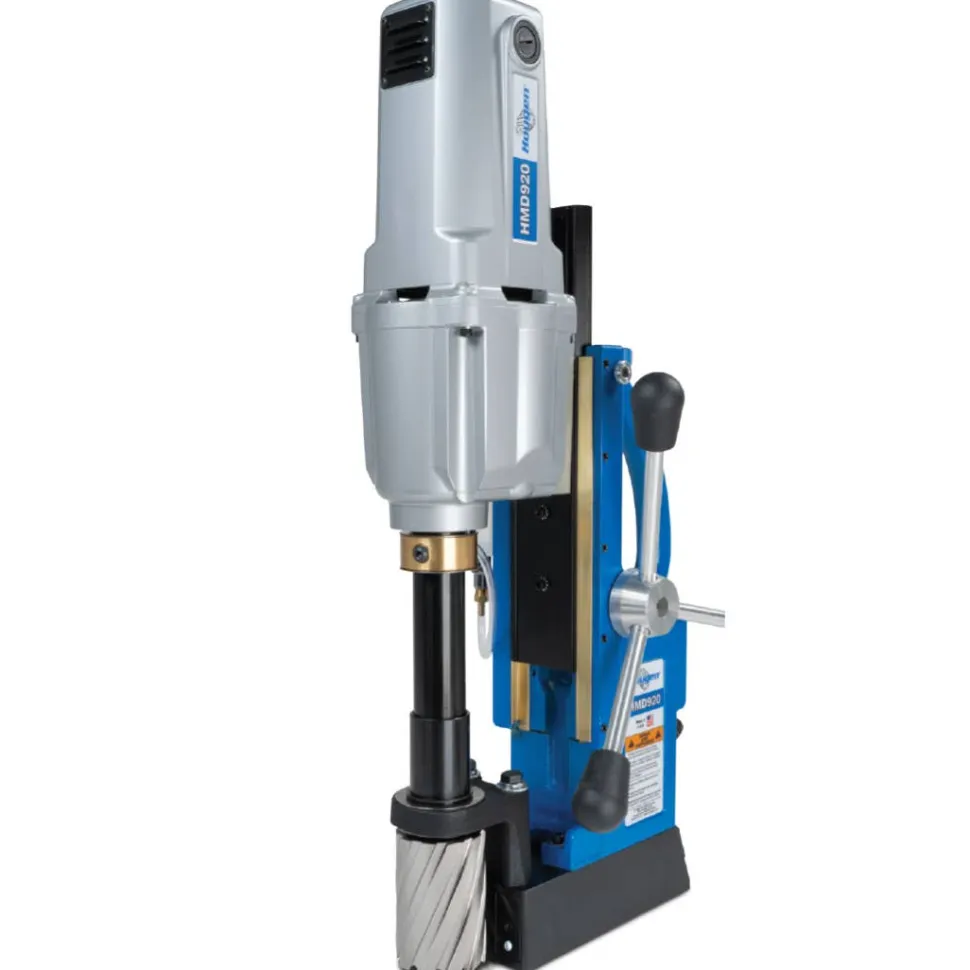

Hougen HMD920 Portable Magnetic Drill 3″ Depth 115V 3-Speed 0920102

Hougen

HMD920 Portable Magnetic Drill 3″ Depth 115V 3-Speed 0920102

Tackle the toughest holemaking challenges in the roughest of conditions, with the NEW HMD920 portable magnetic drill. Powerful industrial strength motor for all day every day drilling, plus a three speed gear box to maximize torque, tool life and productivity.

FEATURES:

• Powerful high torque Hougen motor and gears.
• Three speed gear box – 250 / 450 / 700 RPM.
• Pilot light for low light conditions and greater hole accuracy.
• Two stage magnet. Engages full power only when motor is turned on which increases magnet life.
• Available with or without the swivel base.
• Positive slug ejection.
• Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more…
• Feed handles quickly change from side to side.
• Lift detector safety system.
• Gravity fed coolant bottle.
• Three speeds allows for the use of both “12,000-Series” and Copperhead Carbide cutters. The correct RPM provides the best tool life, (250 / 450 RPM for HSS Cutters) (700 RPM for Carbide Cutters*).
• Two year warranty.

SPECIFICATIONS:

Electrical System	115V, 50/60 Hz – 13.5A, 1553W 230V, 50/60 Hz – 6.75A, 1553W
Motor	12.5A, 1438W (115V), 6.25A, 1438W (230V) 250/450/700 RPM
Diameter	7/16″ – 2-3/8″ (12mm – 60mm)
Depth	3″ (76mm)
Cutter/Mount	“12,000-Series” & Copperhead cutters, 3/4″ (19mm) shank
Twist Drill Capacity	3/4″ w/ drill chuck
Tapping Capacity	3/4″-16 UNF w/ tapping unit
Dimensions	25-15/16″ H x 8-3/16″ W x 12-13/16″ L (659mm H x 208mm W x 325mm L)
Magnet Base	3-1/2″ W x 7-3/4″ L (89mm W x 197mm L)
Magnet 1″ Plate (25mm)	Dead Lift 2385 lb. (1082 kg) / Drillpoint Breakaway 1290 lb. (585 kg)
Magnet 3/8″ Plate (9.5mm)	1635 lb. (742 kg) / 825 lb. (374 kg)
Weight	49 lb. (22.2 kg)

INCLUDES:

• HMD920 Portable Magnetic Drill
• Coolant Bottle
