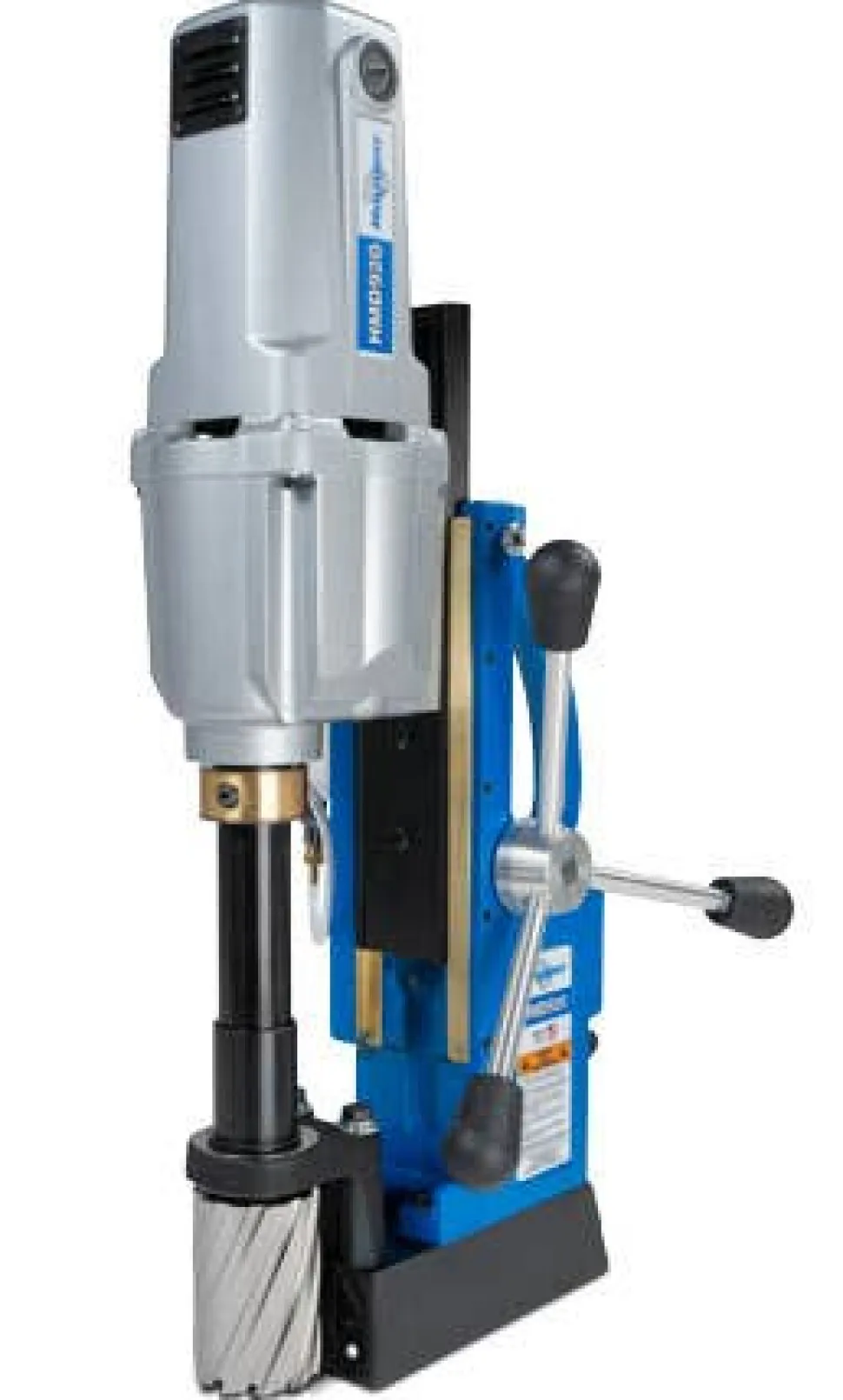

Hougen HMD920 Mag Drill – Swivel Fab Kit Fractional – 115V 0920109

Name: Hougen HMD920 Mag Drill - Swivel Fab Kit Fractional - 115V 0920109
Brand: Hougen Tools
SKU: SKUjA6SXaVR5N
Availability: InStock

Original price was: $2,551.00.Current price is: $122.99.

SKU: SKUjA6SXaVR5N Categories: Mag Drills, Power Tools Tag: Hougen Tools Brand: Hougen Tools

Additional Details

Hougen

HMD920 Mag Drill – Swivel Fab Kit Fractional – 115V 0920109

Hougen’s most powerful three speed mag drill for heavy duty fabrication. The HMD920 replaces the HMD917.

FEATURES:

Large 2-3/8″ x 3″ capacity.
Our most powerful high torque motor.
Three speed gear box – 250 / 450 / 700 RPM.
Pilot light.
Two stage magnet – 30% increase in power when motor is turned on.
Positive slug ejection.
Gravity fed coolant bottle.
Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more.
Feed handles quickly change from side to side.
Lift detector safety system.
Rear mounted controls.
Two year warranty.

Swivel Base adds even greater versatility:

Precisely line up your pilot with the holes center location.
One stroke lock and unlock handle.
Great for horizontal, overhead, tight areas, and getting out over another piece of steel.
Patented.

SPECIFICATIONS:

Electrical System	115V, 50/60 Hz – 13.5A, 1553W; 230V, 50/60 Hz – 6.75A, 1553W
Motor	12.5A (115V), 6.25A (230V), 250/450/700 RPM
Diameter	7/16″- 2-3/8″ (12mm – 60mm)
Depth	3″ (76mm)
Cutter/Mount	“12,000-Series” & Copperhead™ Carbide cutters, 3/4″ shank
Dimensions	25-15/16″ H x 8-3/16″ W x 12-13/16″ L (659mm H x 208mm W x 325mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L (28.5mm H x 34.9mm W)
Magnet	Base: 3-1/2″ W x 7-3/4″ L (89mm W x 197mm L) 1″ Plate(25mm): Dead Lift 2385 lb. (1082 kg); Drillpoint Breakaway 1290 lb. (585 kg) 3/8″ Plate (9.5mm): Dead Lift 1635 lb. (742 kg); Drillpoint Breakaway 825 lb. (374 kg)
Magnet (Swivel)	1″ Plate (25mm): Dead Lift 2480 lb. (1125 kg); Drillpoint Breakaway For. 1043 lb. (473 kg) Back 1218 lb. (552 kg) 3/8″ Plate (9.5mm): Dead Lift 1782 lb. (808 kg); Drillpoint Breakaway For. 796 lb. (361kg) Back 1067 lb. (484 kg)
Weight	49 lb. (22.2 kg) • Shipping 66 lb (29.9 kg)
Weight (Swivel)	53 lb. (24.1 kg) • Shipping 70 lb (31.8 kg)
Shipping Dimensions	20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm)

INCLUDES:

(1) Pint of coolant

(1) Safety chain

(2) Hex wrenches

(1) 1/2″ Drill Chuck

(1) Adapter

(1) “12,000-Series” Cutter Kit

Specifications

More Information
OPT SKU	HOU0920109
MPN	0920109
UPC/GTIN	662850025505
Product Type	Mag Drills
Google Category	Hardware > Tools > Drills > Drill Presses
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	66.00
