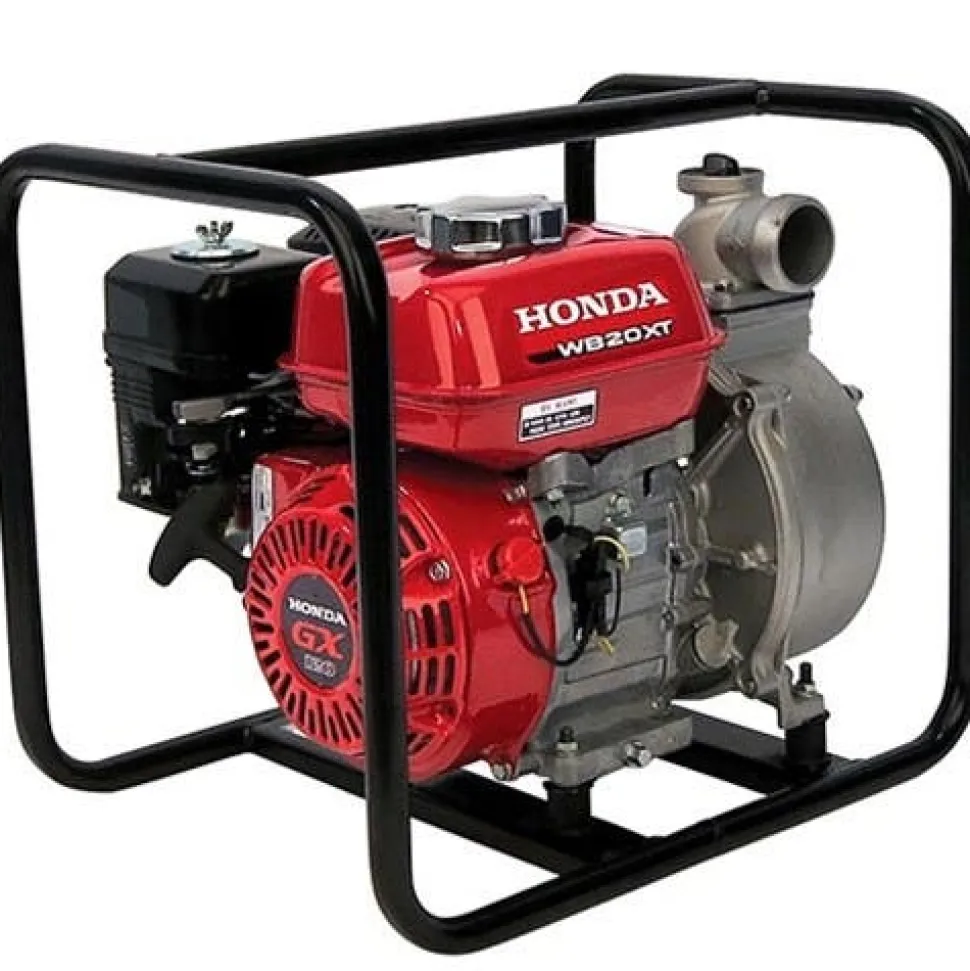

Honda WB20 2″ General Water Pump GX120 164 gpm Dewatering WB20XT4A

Honda

2 General Water Pump GX120 164 gpm Dewatering WB20XT4A

FEATURES:

• General purpose; centrifugal 2″ pump.
• Easy starting Honda OHV commercial engine.
• 164 gal./min. capacity.
• Durable silicon carbide mechanical seal.
• Cast iron volute and impeller.

SPECIFICATIONS:

Engine	GX120
Displacement	118cc
Bore and stroke	2.4″ x 1.7″
Compression Ratio	8.5:1
Oil Alert	Std
Pump type	Centrifugal; Self-priming
Volute	Rigid Mounted Cast Iron
Impeller	4 Vane Cast Iron
Dimensions (L x W x H)	19.3″ x 14.4″ x 16.5″
Mechanical Seal (Pump case / impeller)	Silicon Carbide/Silicon Carbide
Dry Weight	44 lb.
Drive system	Direct
Discharge capacity	164 gal/min
Suction port diameter	2″ NPT
Discharge port diameter	2″ NPT
Total head lift	105 ft
Suction head lift	25 ft
Maximum pressure	45 psi
Solids handling	N/A
Fuel Capacity	0.53 gal
Run Time @ Max Discharge	1.7 hr
Residential Warranty	3 Years
Commercial Warranty	3 Years

“
