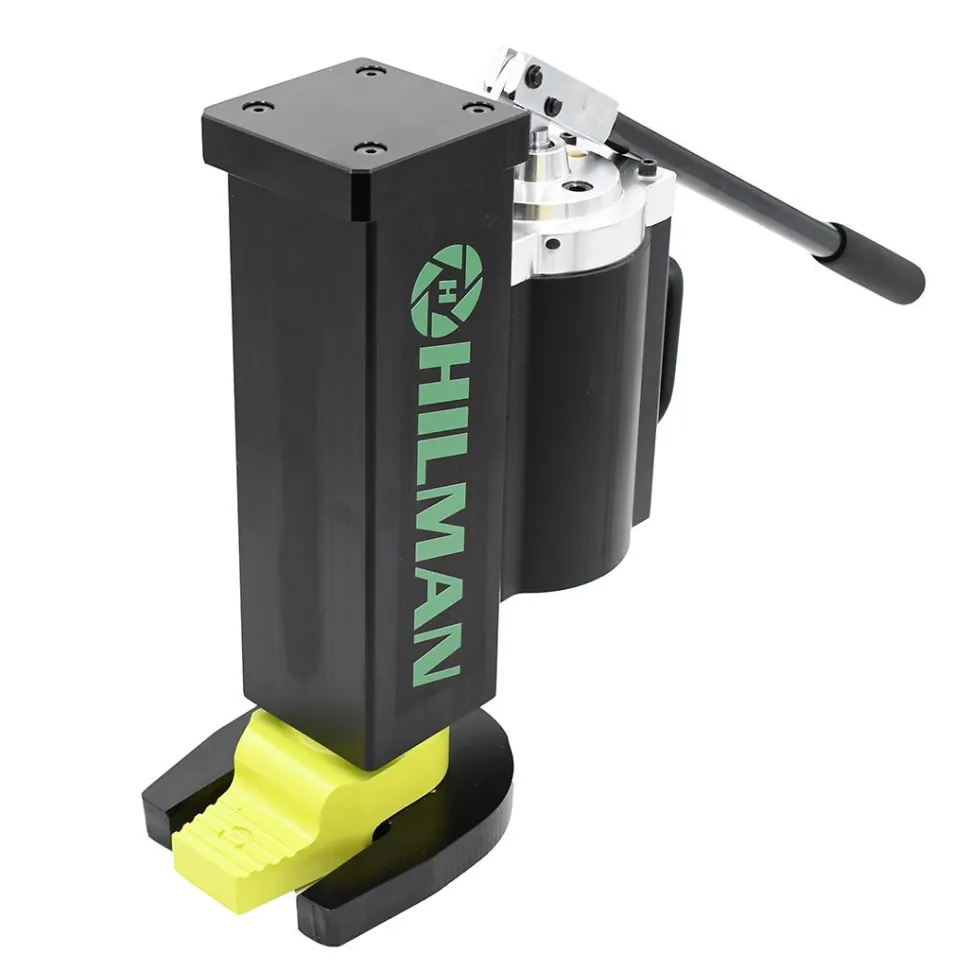

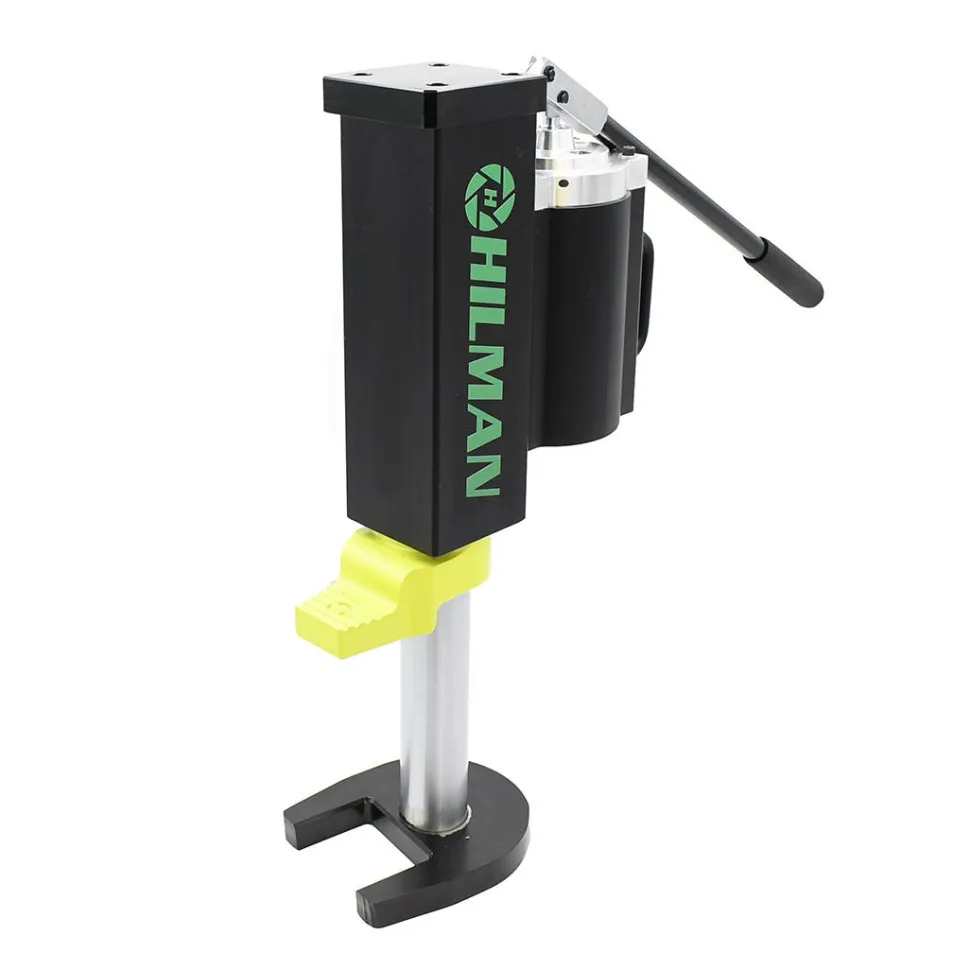

Hilman Rollers 10-Ton Hydraulic Toe Jack Pro HTJ-1009

Hilman Rollers

10-Ton Hydraulic Toe Jack Pro HTJ-1009

The NEW Hilman Hydraulic Toe Jack Pro is lighter weight and has a faster lift! It allows you to get under and lift equipment with just over 1″ of ground clearance and since there are lifting points on both the toe and the top of the jack these are the perfect complement to Hilman Rollers. Hilman Toe Jacks all comply with ASME B30.1 standards.

FEATURES:

• Flat face for blocking.
• 27% faster lift.
• Lightweight.
• Handle – easy to pull on and off.
• Hydraulic pump.
• Low Clearance.
• Can operate both horizontally and vertically.
• Made in the USA.

SPECIFICATIONS:

Load Capacity (tons)	10
Jack Height Retracted (in)	16.5
Jack Height Extended (in)	25.625
Toe Height (in)	1.125
Total Stroke (in)	9.125
Pumps (#)	97
Stroke/Pump (in)	0.94
