Hilman 10 Ton Omni-Skate Rotating Dolly OMNI-10

Hilman

10 Ton Omni-Skate Rotating Dolly OMNI-10

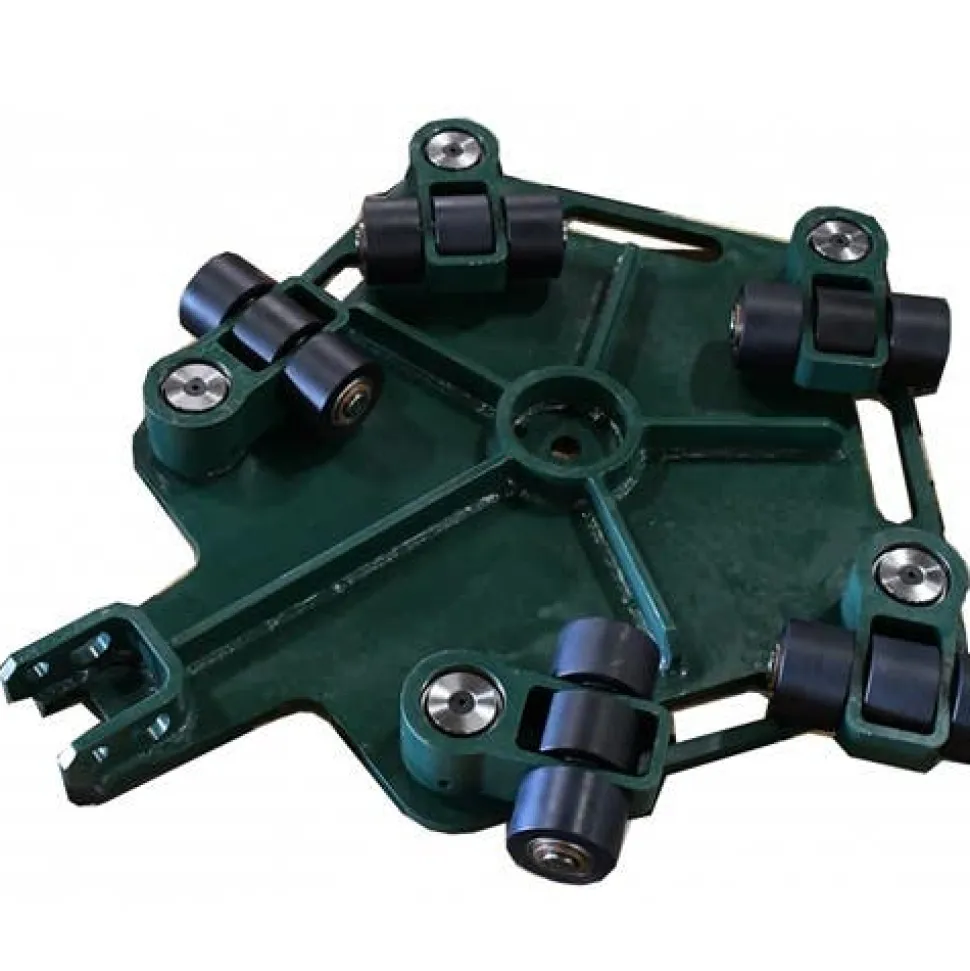

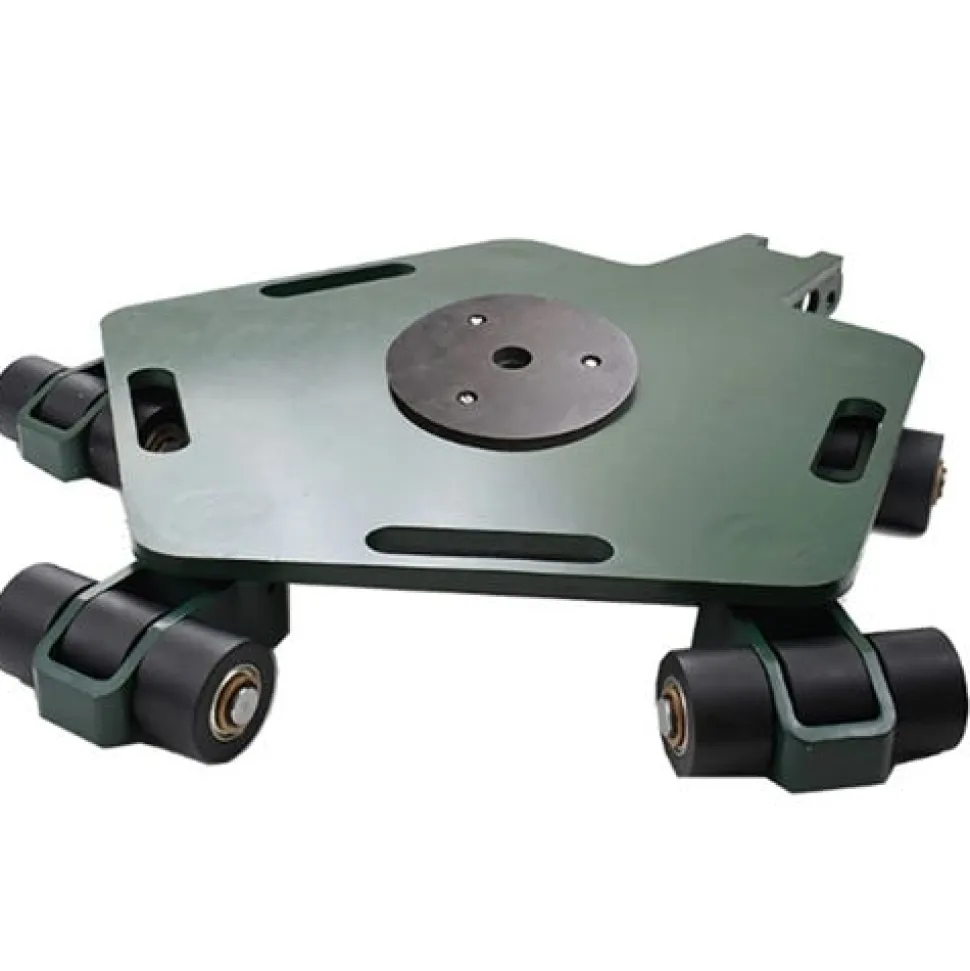

The Hilman Omni-Skate is a rotating dolly that provides a low profile; stable; efficient solution for moving heavy loads. This multi-directional load skate is capable of traveling in any direction and rotating on axis.

FEATURES:

• 360-Degree Rotation for omni-directional maneuverability; with three wheels per module to optimize turning.

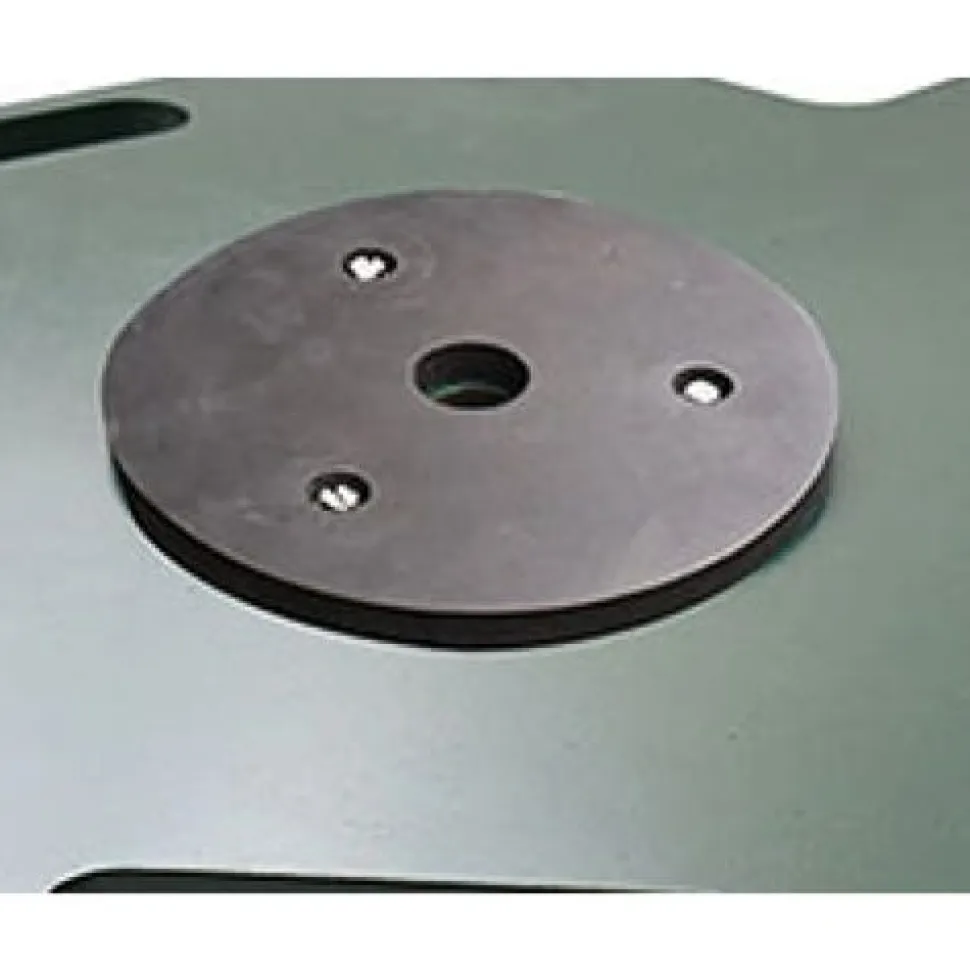

• Secured Padded Top – screwed on load pad that won’t come loose and can be replaced in the field.
• Bearings – one thrust and two axial bearings per foot to ease change of direction.
• Non-marking Wheels – Durable nylon wheels that won’t mark floors.
• High Capacity Rugged Frame.
• Wide Slots – for strapping skates to the load.
• Optional: Stabilizer Bar and Handle.
• Multiple units can be put together for 3 point moving configurations.

SPECIFICATIONS:

Load Capacity (tons)	10
Height (in)	4.63
Width (in)	31.4375
Length (in)	38.75
Number of Rollers per Dolly	15
Wheel Type	Nylon
Weight (lbs)	193
Pad Diameter (in)	8
Manufacturing Country	USA
