Greenlee Stray Voltage Detector LV-5

Greenlee

Stray Voltage Detector LV-5

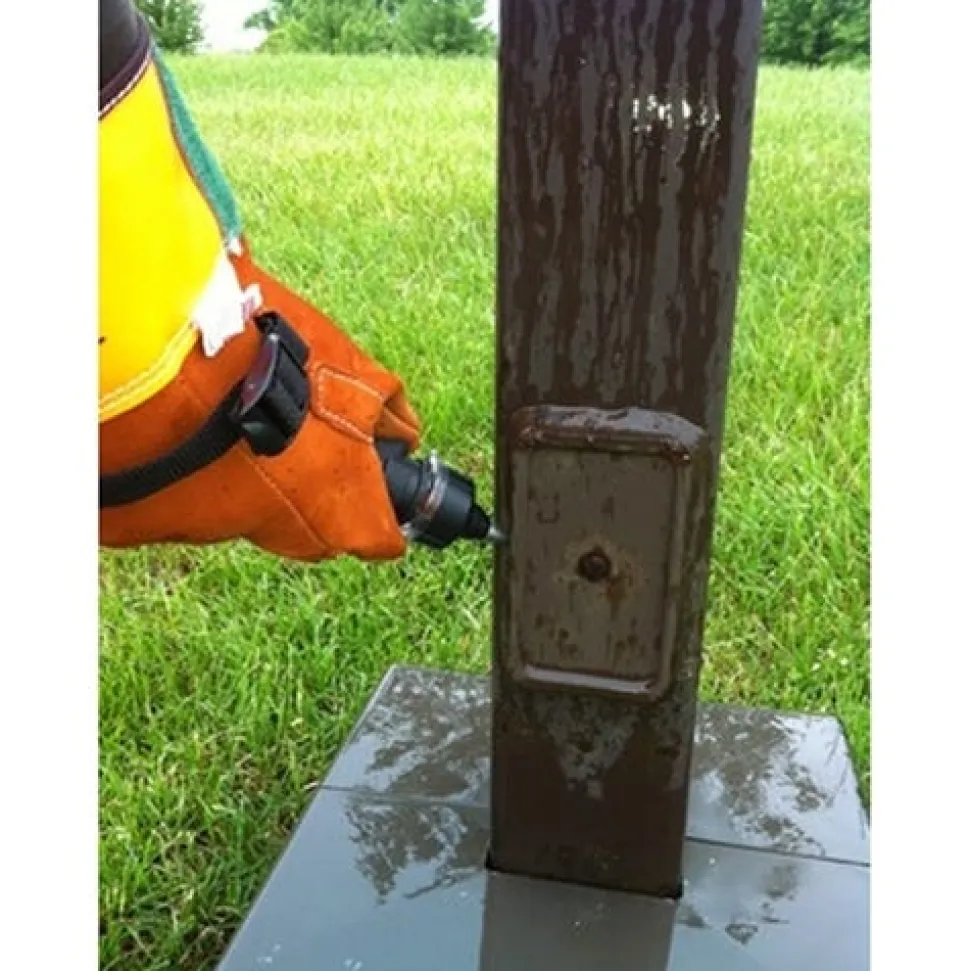

The Stray Voltage Detector; model LV-5; is used to detectstray voltage as low as 5 volts which may be present onany electrically conductive surface such as street lightpoles; guide guy wires; wood transmission poles; meter cans;manhole covers and many other metallic surfaces in andaround electrical utilities. This newer LV-5 has a bigger; morerobust grip; a brighter LED indication that improves daylightvisibility and has a tester built into the holster to quickly testthe detector on a known voltage source before and after use.

FEATURES:

• Indicates the presence of stray or contact voltage.
• Direct contact detector alers at 5V and up.
• No on/off button; detector is always on.
• Use on street light poles; guide guy wires; wood transmission poles; meter cans; manhole covers and other metallic surfaces.
• Available holster with integrated tester accessory.
• Rugged; water-resistant; utility-grade design.

SPECIFICATIONS:

Type	Direct Contact & Stray Voltage Detector
Frequency Rating	50/60Hz
Voltage Rating	5VAC; 50/60Hz nominal; capacitively coupled
Indication Type	Visual Alert
Model	LV-5
Overall Length	10.5

INCLUDES:

• (1) LV-5 Detector

“
