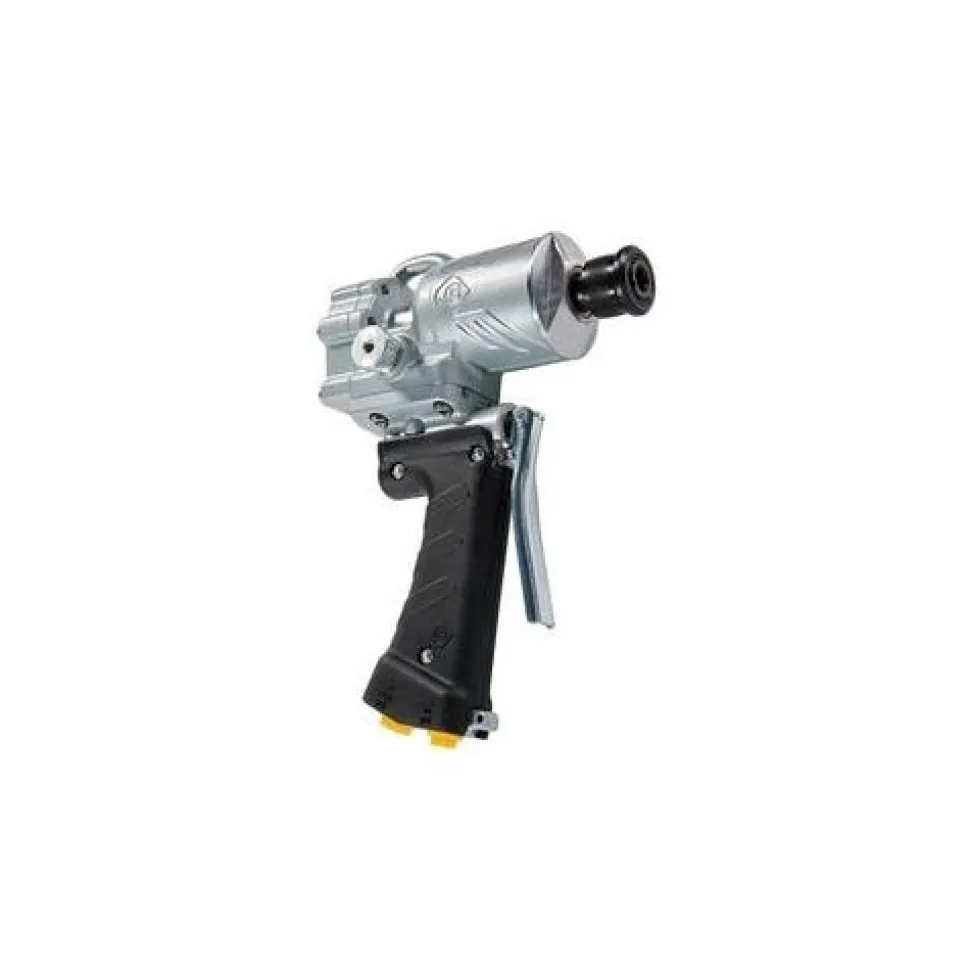

Greenlee Hydraulic 7/16″ Hex Impact Wrench Variable Torque HW1V

$132.99

SKU: SKUpIEF89GSur Categories: Power Tools, Rotary Hammer Drills (Sds, Sds-Max, Spline) Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
Hydraulic Impact Wrench with Torque Adjustment and Hex Quick Change Chuck HW1V
Discrete position torque adjustment control with 3 positions and quick change access on the variable torque model; (HW1V)
Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the cast handle
Weight reduction of 14% to previous models
Improved center-of-gravity for superior ergonomics
Increased service life with the addition of back-up rings and larger O-rings
Built-in hydraulic check valve to eliminate damage from an improperly connected tool
Large and strong lifting eye for easy and secure storage
Longer and wider trigger provides improved control with insulated gloves
Fast and easy change between open-center systems and closed-center systems with no disassembly required
Higher breaking torque in reverse to ensure you can remove tighted bolts
Cast motor enclosure that better protects the impact mechanism operation versus competing models with stamped steel enclosure
Accessory : NR1 Nut Runner With Adapter For 5/8 IN; 1/2 IN; 13/16 And 1.000 Square Nuts; NR2 Nut Runner With Adapter For 1.000 IN; 1-1/8 And 1-5/16 Square Nuts; 00376 Trigger Guard Kit For HW1 Or HW1V; 49314 Heavy Duty 7/16 Hex X 1/2 Square Drive Shank IN
Capacity : 7/16 Hex IN
Drive Size : 1/2 IN
Flow Range : 4 – 12 GPM (15 – 46 LPM)
Handle Type : Impact And Temperature Resistant Replaceable Polymer Grip
Height : 11.000 IN
Hydraulic System : Super Spool Selector For OpenAnd Closed Center Systems
Includes : 7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Length : 8.200 IN
Operating Pressure : 1000 – 2500 PSI (69 – 170 BAR)
Optimum Flow Range : 5 – 8 GPM (19 – 30 LPM)
Pressure Port : 9/16-18 SAE O-Ring
Replacement : 54923 HTMA Male Coupler: HTMA; 3/4-16 SAE O-Ring Exterior Thread; 54925 HTMA Female Coupler: HTMA; 9/16-18 SAE O-Ring Exterior Thread
Return Port : 3/4-16 SAE O-Ring
Torque Rating : 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum; 160 FT-LB At 8 GPM (213 N-M At 30 LPM) Minimum
Type : Hydraulic; High Torque
Weight : 6.600 LB (2.970 KG)
Width : 4.200 IN

Manufacturer Specifications

Optimum Flow Range	5 – 8 GPM (19 – 30 LPM)
Operating Pressure	1000 – 2500 PSI (69 – 170 BAR)
Included Components	7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Capacity	7/16 Hex IN
Flow Range	4 – 12 GPM (15 – 46 LPM)
Width	4.200 IN
REACH Compliant	Yes
Drive Size	1/2 IN
Replacement	54923 HTMA Male Coupler – HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler – HTMA, 9/16-18 SAE O-Ring Exterior Thread
Type	Hydraulic, High Torque
Country of Origin	United States
Handle Type	Impact And Temperature Resistant Replaceable Polymer Grip
Includes	7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Length	8.200 IN
Height	11.000 IN
Hydraulic System	Super Spool Selector For OpenAnd Closed Center Systems
Accessory	NR1 Nut Runner With Adapter For 5/8 IN, 1/2 IN, 13/16 And 1.000 Square Nuts, NR2 Nut Runner With Adapter For 1.000 IN, 1-1/8 And 1-5/16 Square Nuts, 00376 Trigger Guard Kit For HW1 Or HW1V, 49314 Heavy Duty 7/16 Hex X 1/2 Square Drive Shank IN
Return Port	3/4-16 SAE O-Ring
Weight	6.600 LB (2.970 KG)
Pressure Port	9/16-18 SAE O-Ring
Torque Rating	500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum, 160 FT-LB At 8 GPM (213 N-M At 30 LPM) Minimum

Specifications

More Information
OPT SKU	GRHW1V
MPN	HW1V
UPC/GTIN	783310003724
Product Type	Rotary Hammer Drills (SDS, SDS-Max, Spline)
Google Category	Hardware > Tools > Hammers > Powered Hammers
Power Method	Hydraulic
Shipping Weight	9.00
