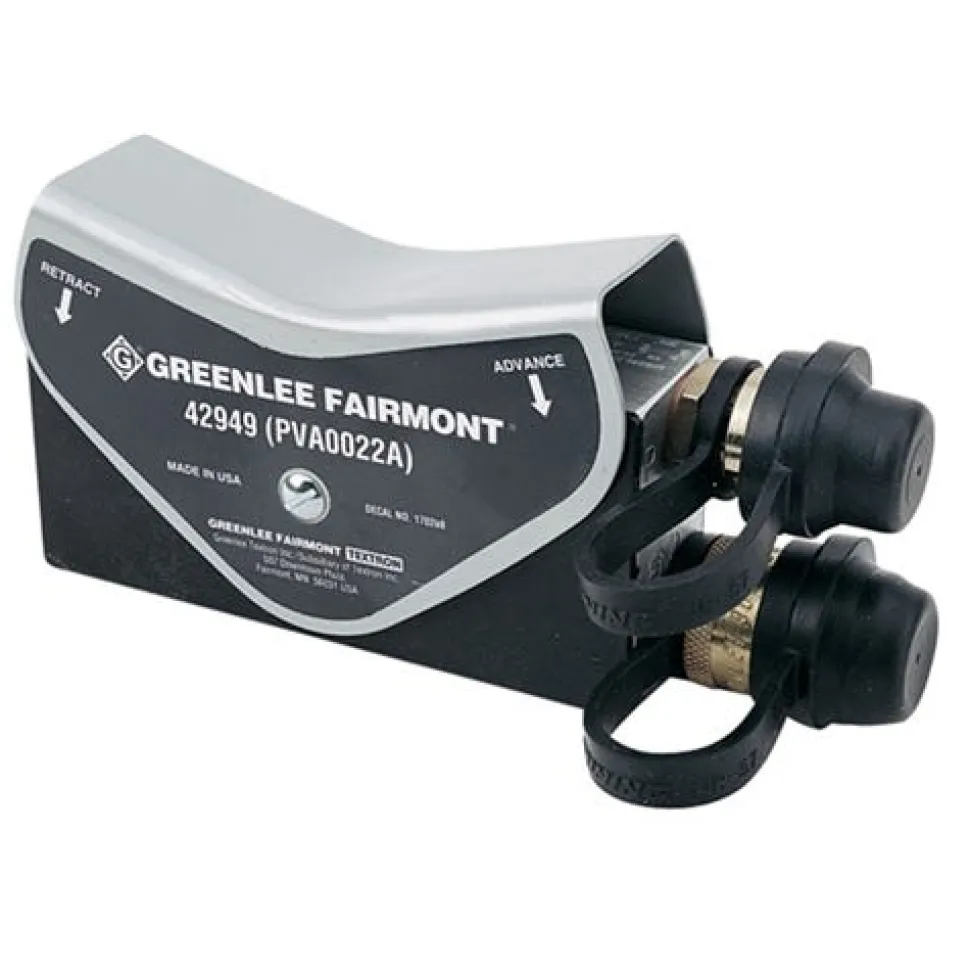

Greenlee 4 Way 3 Position Control Valve for Double-Acting Tool w/ Disconnects PVA0022

Original price was: $1,404.00.Current price is: $130.89.

SKU: SKU9KUo4uskBo Categories: Accessories, Hydraulic Components & Fittings Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
4 Way; 3 Position Control Valve for Double-Acting Tool w/ Disconnects PVA0022
May be directly connected to the tool or used remotely with hoses
Compact 4-way; 3-position valve
3;000 – 4;000 psi (207 – 275 bar) return line ground dump safety valve
Controlled advance and built-in hold feature
Single-acting valve available to use with existing single-acting tools
Application : For Cutter And Crimping Tool
Couplers : High Pressure Quick-Disconnects Included; 10000 PSI (700 BAR)
Height : 3.500 IN (89.000 MM)
Input Flow Range : 3 – 8 GPM (12 – 30 LPM)
Length : 7.500 IN
Operating Pressure : 10000 PSI (700 BAR) Return Relief
Port Size Inlet : 1/4 – 18 NPTF; 1/4 – 18 NPSM Tool
Return Pressure : 5000 PSI (350 BAR)
Type : High Pressure Hydraulic; 4 Way; 3 Position
Weight : 2.800 LB
Width : 2.000 IN (44.000 MM)

Manufacturer Specifications

Height	3.500 IN (89.000 MM)
Port Size Inlet	1/4 – 18 NPTF, 1/4 – 18 NPSM Tool
Width	2.000 IN (44.000 MM)
Country of Origin	United States
Input Flow Range	3 – 8 GPM (12 – 30 LPM)
Length	7.500 IN
Operating Pressure	10000 PSI (700 BAR) Return Relief
Weight	2.800 LB
Couplers	High Pressure Quick-Disconnects Included, 10000 PSI (700 BAR)
Return Pressure	5000 PSI (350 BAR)
Type	High Pressure Hydraulic, 4 Way, 3 Position
