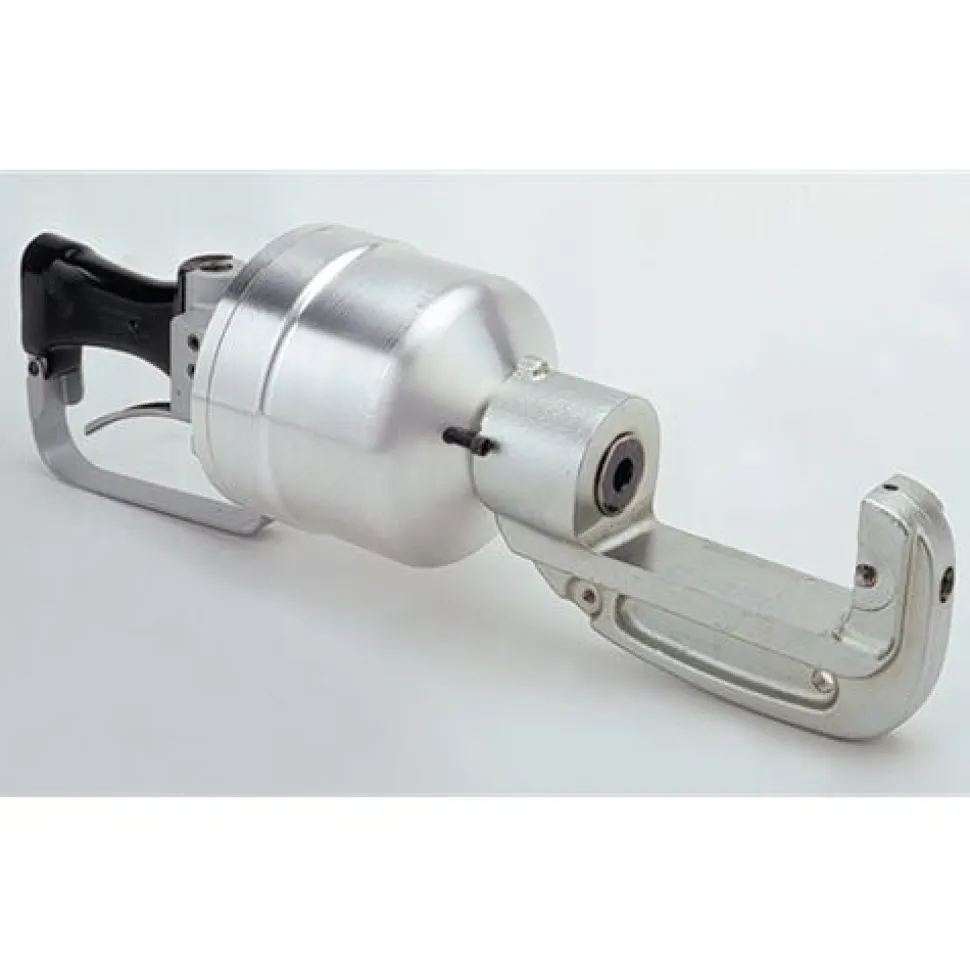

Greenlee 15 Ton Hydraulic Low Pressure Crimping Tool No Dies LPK1550

Original price was: $4,091.00.Current price is: $130.89.

Additional Details

Greenlee
15 Ton Low Pressure Crimping Tool; No Dies LPK1550
No high pressure intensifier required and crimps cable 500 MCM and larger
Relief valve signals operator when crimp is complete
Compatible with dies for: Kearney PH2*; PH4/PH14
Burndy Y35*; Y46*
Penn-Union TPU-15PH*
Thomas & Betts TBM 15 PF* (*Requires adapters)
Can be converted with adapters for use with Burndy inUin style dies and Kearney PH2 andsome WH2 dies
Accessory : 48820 Die Adapter – Burndy Y46; Penn-Union TPU 15BH; 48788 Die Adapter – Thomas And Betts TBM 15PF; 48802 Die Adapter – 12-ton inUin Die; 48824 Die Adapter – Kearney PH2; 54923 HTMA Male Coupler; 54925 HTMA Female Coupler
Crimping Force : 30000.000 LB (133.400 KN) at 1500 PSI
Flow Rate : 3 – 9 GPM (11 – 34 LPM)
Includes : Dies
Length : 23.800 IN (604.500 MM)
Operating Pressure : 1500 – 2500 PSI (103 – 172 BAR)
Pressure Port : 3/4 – 16 SAE O-Ring
Return Port : 3/4 – 16 SAE O-Ring
System : Open and Closed Center Hydraulic System
Weight : 28.600 LB (13.000 KG)
Width : 6.500 IN (604.500 MM)

Manufacturer Specifications

Flow Rate	3 – 9 GPM (11 – 34 LPM)
Length	23.800 IN (604.500 MM)
Return Port	3/4 – 16 SAE O-Ring
Accessory	48820 Die Adapter – Burndy Y46, Penn-Union TPU 15BH, 48788 Die Adapter – Thomas And Betts TBM 15PF, 48802 Die Adapter – 12-ton ”U” Die, 48824 Die Adapter – Kearney PH2, 54923 HTMA Male Coupler, 54925 HTMA Female Coupler
Crimping Force	30000.000 LB (133.400 KN) at 1500 PSI
Weight	28.600 LB (13.000 KG)
Includes	Dies
Operating Pressure	1500 – 2500 PSI (103 – 172 BAR)
Width	6.500 IN (604.500 MM)
System	Open and Closed Center Hydraulic System
Pressure Port	3/4 – 16 SAE O-Ring

Specifications

More Information
OPT SKU	GRLPK1550
MPN	LPK1550
UPC/GTIN	783310493556
Product Type	Cable & Wire Crimpers / Termination
Google Category	Hardware > Tools > Wire & Cable Hand Tools
Power Method	Hydraulic
Shipping Weight	32.00
