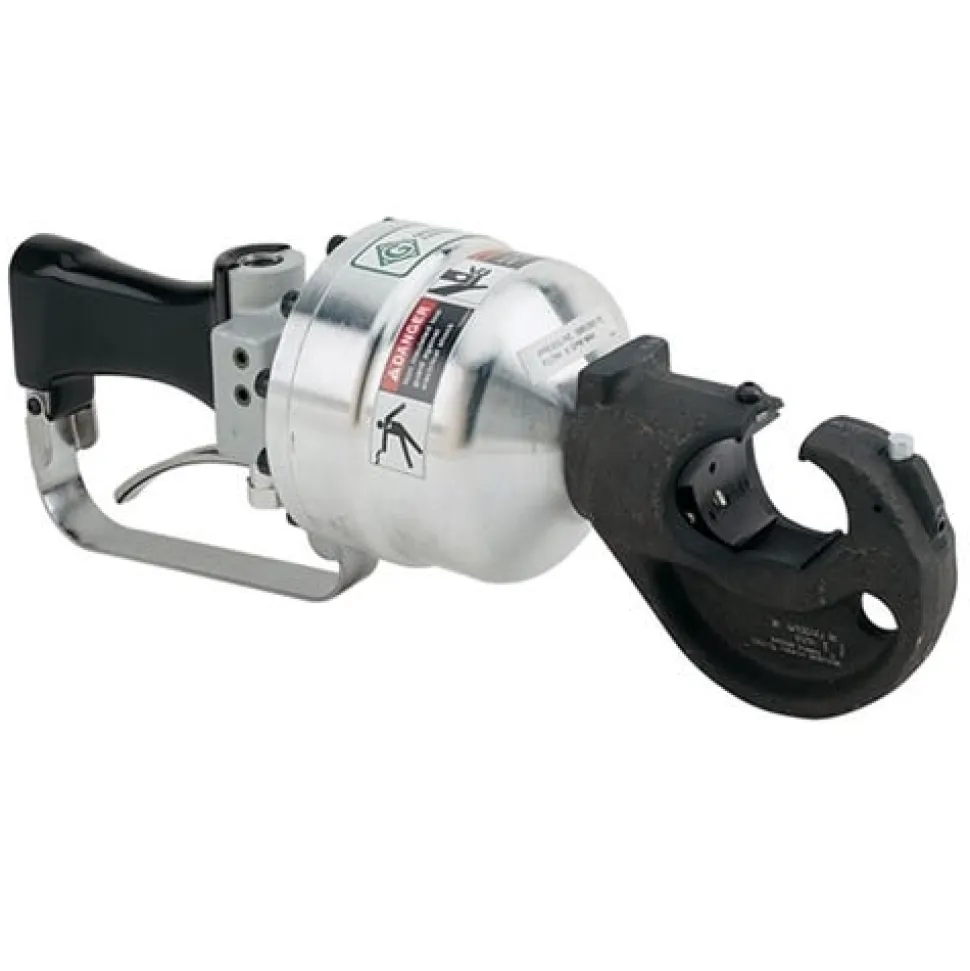

Greenlee 12 Ton Hydraulic Crimping Tool 1.20 Jaw LPK1230

• Greenlee
• 12 Ton Crimping Tool 1.20 Jaw LPK1230
• No high pressure intensifier required
• 1.20 IN (30 mm) jaw opening
• Relief valve signals operator when crimp is complete
• Compatible with dies for:
• Burndy Y35
• Alcoa 12A; 12AC; 12HA; 12HAC
• Anderson HC-12; HC-12H
• Accepts standard inUin style dies
• Head rotates for easy tool positioning
• Powered in both the advance and retract directions to prevent hang-ups
• Relief valve assures 12-ton (10.9 t) crimp with 1;500 -2;500 PSI (103 – 170 bar) system
• Accessory : 54923 HTMA Male Coupler; 54925 HTMA Female Coupler; 35887 Crimping Tool Load Cell 12 Ton
• Crimping Force : 24000.000 LB (106.800 KN) At 1500 PSI
• Flow Rate : 3 – 9 GPM (11 – 34 LPM)
• Height : 7.000 IN (177.800 MM)
• Jaw Opening : 1.200 IN (30.000 MM)
• Length : 19.300 IN (490.200 MM)
• Operating Pressure : 1500 – 2500 PSI (103 – 172 BAR)
• Pressure Port : 3/4 – 16 SAE O-Ring
• Return Port : 3/4 – 16 SAE O-Ring
• System : Open and Closed Center Hydraulic System
• Weight : 18.500 LB (8.440 KG)

“
