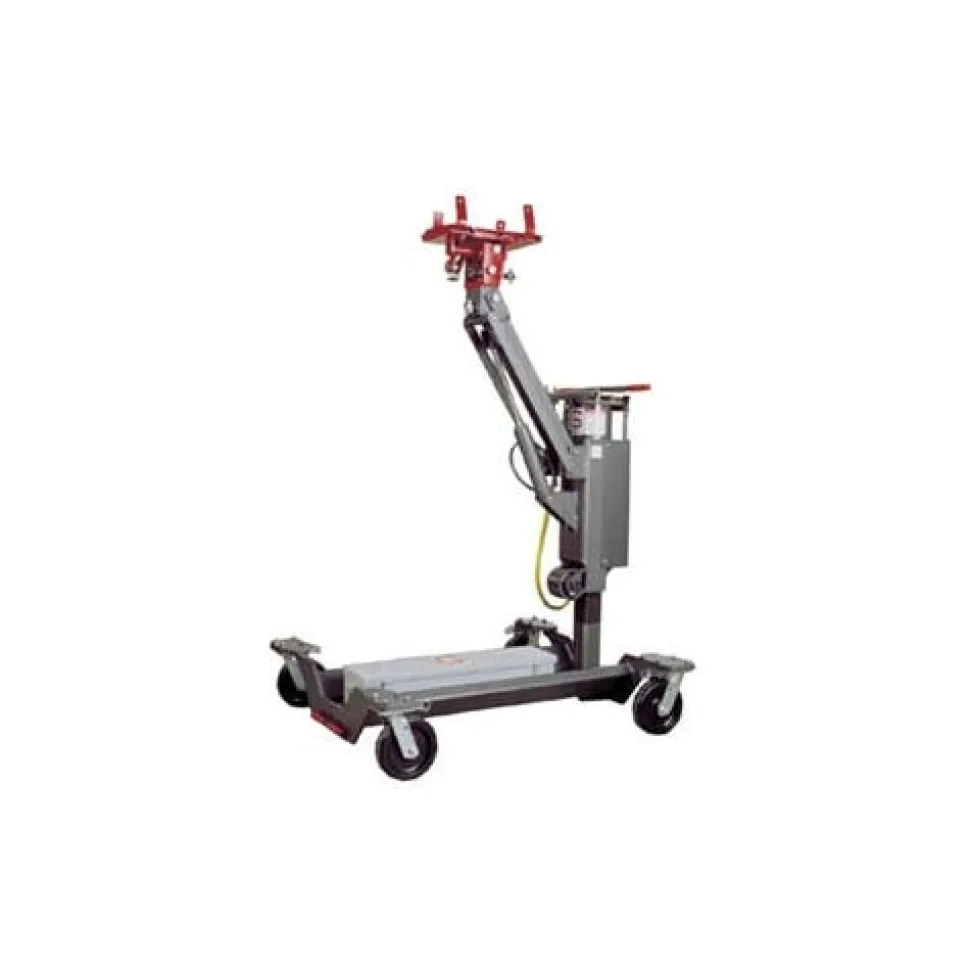

Gray Heavy Duty High-Rise Transmission Jack HTCJ-2000

$138.99

Additional Details

Gray
Financing is available. Click here for details.
The ultimate high-rise transmission jack. The innovative design provides the most stable; secure component handling system. The HTCJ-2000 is perfect for transmissions and any other major component.
Gray’s HTCJ-2000 has a low 30″ start height; designed to maneuver under low obstructions. The 2-stage design increases productivity through the speed of the air motor and the precision of the hydraulics. The large head plate accommodates a variety of different size components. The locable and steerable caster provide ease when maneuvering throughout the shop.
Product shown with optional adapters
Acme threaded head plate for easy adjustments
360 rotating head
Fore and aft tilting head
Quick ratcheting brackets for easy adjustments
Retractable tow handle
Made in the U.S.A.
Capacity: 2;700 lbs
Minimum Start Height: 30″
Maximum Lift Height: 72″
Air Stage Stroke: 16″
Air/Hydraulic Stroke: 26″
Power: 1st Stage: Air – 2nd Stage: Air/Hydraulic
Required Air Pressure: 110 PSI
Head Plate Dimensions: 11 1/2″ x 17″
Head Rotation: 360
Tilt Forward: 10
Tilt Rear: 10
Tilt Side to Side: 10
Overall Width: 42″
Overall Height: 34 1/2″
Overall Length: 49 5/16″
Handle Length: 44 1/2″
Caster Diameter: 8″
Shipping Weight: 670 lbs

Specifications

More Information
OPT SKU	GRA147
MPN	HTCJ-2000
Product Type	Floor Jacks & Vehicle Lifting
Google Category	Business & Industrial > Material Handling > Lifts & Hoists > Jacks & Lift Trucks
Shipping Weight	680.00
