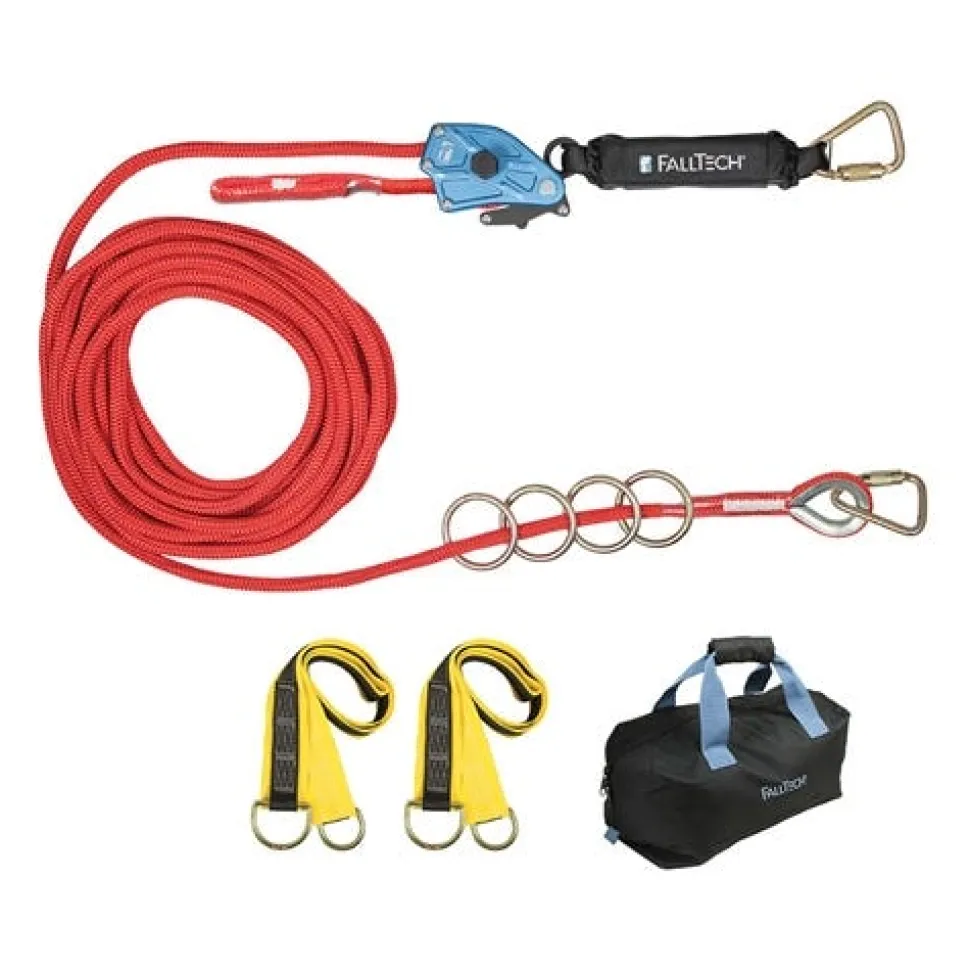

Falltech Temporary 30′ 4-Person HLL Lifeline System 772030

Falltech

Temporary 30′ 4-Person HLL Lifeline System 772030

The FallTech 4-Person Temporary Horizontal Lifelines are complete engineered systems containing all of thecomponents necessary for quick and simple installation. These synthetic rope systems provide adjustable lengthand portability for temporary single-span use by personnel working in the absence of fixed anchorage points along horizontal surfaces.

FEATURES:

• System features high-strength; durable 5/8 double braid polyester rope lifeline with steel thimble andstitched end-termination available in 30′; 60; and 100′ options.
• Includes exclusive line tensioner assembly with integral energy absorber and anchorage-end carabiner.
• Complete kit also includes 4 connecting rings; 2 heavy-duty pass-through anchor straps and additional thimble-end carabiner.
• Included 18″ gear bag provides suitable storage and transportation of the HLL system.
• 4-person HLL systems are a component of a complete PFAS and are engineered for use with user’s selfretracting lifelines or energy absorbing lanyards.

SPECIFICATIONS:

Material Specifications
Rope	5/8″ Double-braid Polyester Rope; 6;000 lbs. Min. Static Strength
Connecting Rings	Plated Alloy Steel 5;000 lbs. Min. Static Strength
Carabiners	Plated alloy steel; 5;000 lbs. Min. Static Strength with 3;600 lbs. gate strength
Sling Anchors	Polyester webbing with plated Alloy Steel D-rings; 5;000 lbs. Min. Static Strength
Energy Absorber	Polyester Tear-away
Tensioner	Aluminum; Alloy and Stainless Steel 6;000 lbs. Min. Static Strength
Performance Specifications
User Capacity	Max. 4 users 130 lbs. to 310 lbs. each
System Strength	6;000 lbs. Min Static Strength
Relevant Standards
OSHA	1926.502

“
