FallTech

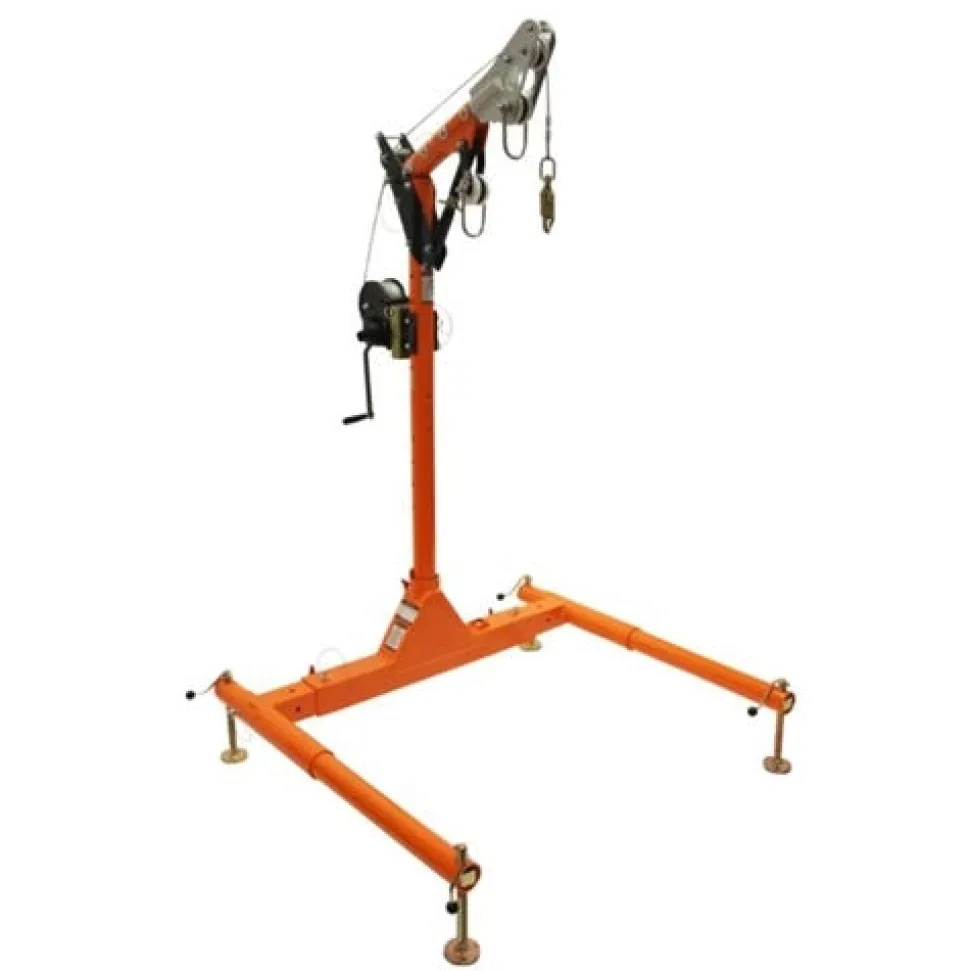

5pc Confined Space Davit System with Winch 6050228W

FEATURES

• Modular assembly of functional basic components plus a Personnel Winch joined in a system; allowing you to work with confidence in Confined Space Entry and Retrieval applications and still maintain the flexibility to modify the system to meet your needs. Lightweight aluminum blended with rugged steel elements throughout; the 5pc Davit System operates with full adjustability and enduring performance.
• 5pc System consists of Davit Arm; 3pc Portable Davit Base and 33″ Lower Mast Extension
• Davit Arm adjusts from 12″ to 29″ and includes Receiver Bracket for FallTech Winch or SRL-R devices
• Portable Davit Base width adjusts from 38″ to 65″ with 4 preset adjustment positions.
• Davit Base includes integral bullseye level and threaded adjustable leveling feet
• Includes 60′ Personnel Winch with Galvanized Steel Cable***

System Performance Specifications

• Moment Rated: 5;750 lbs. Minimum
• Rescue Configuration: 5;000 lbs. Minimum
• Entry/Egress Operation: 1;800 lbs. Minimum
• Rescue Configuration: 2 Users Max. 310 lbs. each
• Entry/Egress Operation: 1 User Max. 310 lbs

Relevant Standards

• OSHA: 1926.502
