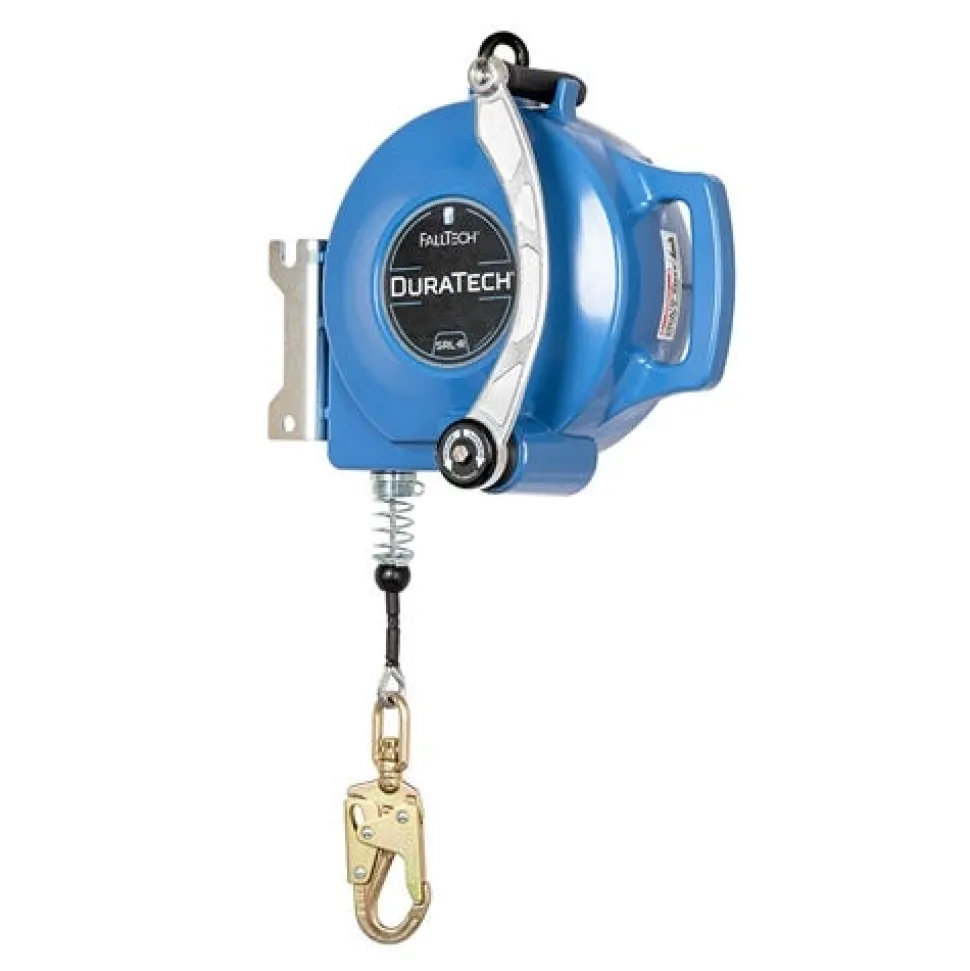

FallTech 120′ DuraTrech SRL R Galvanized Cable w/ Bag and Bracket For Tripods and Davits 7278

FallTech

120′ DuraTrech SRL R Galvanized Cable w/ Bag and Bracket For Tripods and Davits 7278

The DuraTech SRL-Rs are designed for long lasting performance in fall arrest applications that may requireemergency rescue and retrieval functions in a single device.

FEATURES:

• Fully functional side payout SRL with inertial brake energy absorber and integral emergency rescue and retrieval capability.
• Dual-mode design: Fall Arrest or Rescue and Retrieval.
• 3/16 galvanized steel cable lifeline includes load-indicating swivel snaphook.
• Powder coated aluminum alloy housing and zinc plated steel bracket .for durable performance
• Built-in carrying handle for easy transport and installation.
• Large rotating swivel eye anchorage connection point for overhead use.
• Collapsible rescue and retrieval mode handle.
• Included mounting bracket allows for quick and easy install to FallTech tripods or davits.
• For use in personal fall arrest; rescue; and retrieval applications.
• Compatible with all FallTech Confined Space Tripods and Davit systems.

SPECIFICATIONS:

Material Specifications
Housing	Aluminum Alloy
Lifeline Constituent	3/16″ Galvanized Steel Wire Rope Min. 3;400 lbs. Tensile Strength
Bracket	Zinc Plated Alloy Steel Min. 3;000 lbs. Tensile Strength
Load Indicating Swivel Carabiner	Zinc Plated Alloy Steel Min. 5;000 lbs. Tensile Strength with 3;600 lbs. Gate Strength
Performance Specifications
ANSI SRL Class	SRL-R Class B
Average Arrest Force	1;125 lbs. Maximum
Maximum Arrest Force	1;800 lbs.
Maximum Arrest Distance	54″ or Less
Static Strength	3;000 lbs. Minimum
ANSI User Capacity	One User up to 310 lbs. Maximum
Housing Dimensions and Weight
Rope Length	120′
Housing Length	14.5″
Housing Width	13.0″
Housing Thickness	8.0″
Relevant Standards
ANSI	Z359.14-2014 Class B
OSHA	1910.140; 1926.502

“
