FallTech 12″ Fixed Connection Anchor For Wood, Concrete & Steel 78012WCSWE

Falltech

12 Fixed Connection Anchor For Wood; Concrete & Steel 78012WCSWE

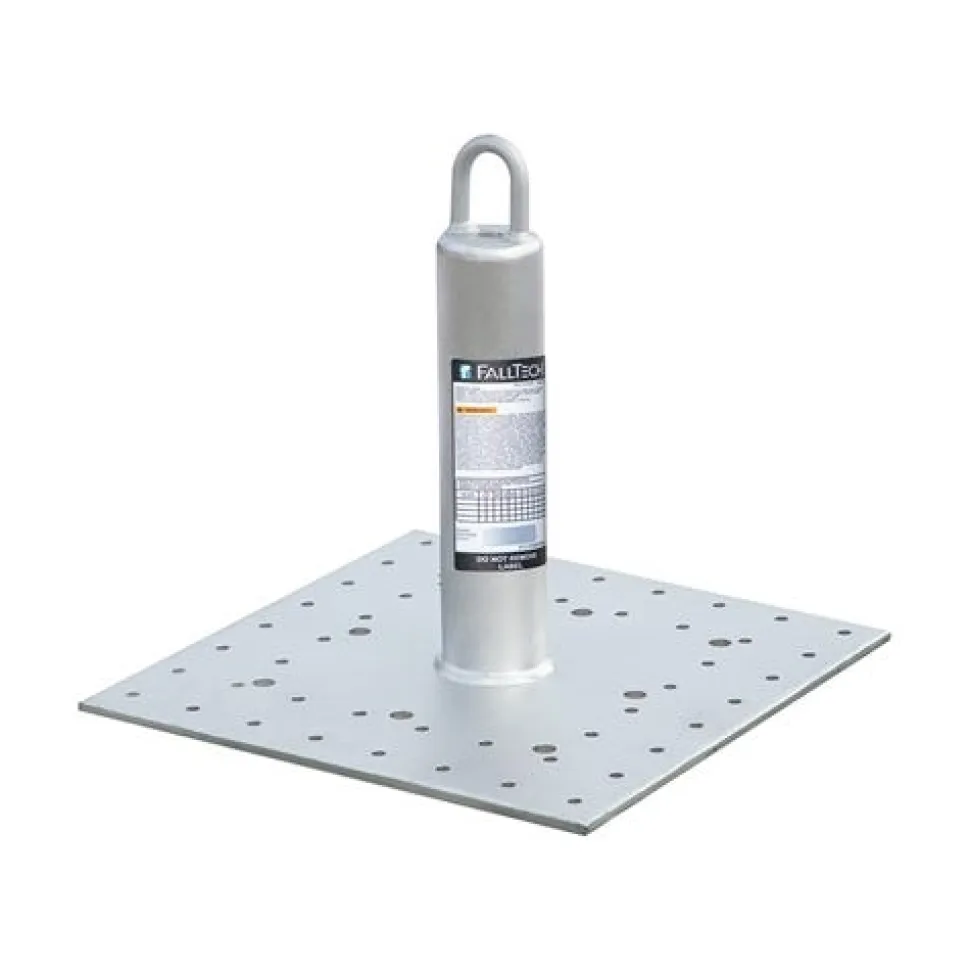

The FallTech Fixed Connection Post Anchor is designed for maximum versatility and safety in fall arrest and restraint applications.

FEATURES:

• Fully galvanized structural steel post and base plate for durable performance.
• 3/8″ thick base plate allows for installation onto I-beams or other structures.
• The 12″ height comfortably elevate user’s connection point above the working surface.
• For permanent installation onto wood; concrete; and steel structures.
• For use in personal fall arrest and restraint applications.
• User-supplied fasteners required (see user’s instruction manual).

SPECIFICATIONS:

Material Specifications
Base Plate	Galvanized Steel
Post	Galvanized Steel
Performance Specifications
Static Strength	5;000 lbs. Min.
ANSI User Capacity	One User up to 310 lbs. Max
Fixed Connection Post Dimensions
Post Height	12″
Base Plate	16″ x 16″ x 3/8″
Relevant Standards
ANSI	Z359.18-2017
OSHA	1926.502

“
