Exact Pipe Infinity Saw Standard (14″ – 73″+) Pipe Cutting Circular Saw 6.5″ Blades 7010428US

Exact

Infinity Saw EPT-7010428US

As the name indicates, The Infinity can cut pipe with no limits in regards to outside diameter. You can basically cut all pipe sizes (outside diameter) from 14” and beyond.

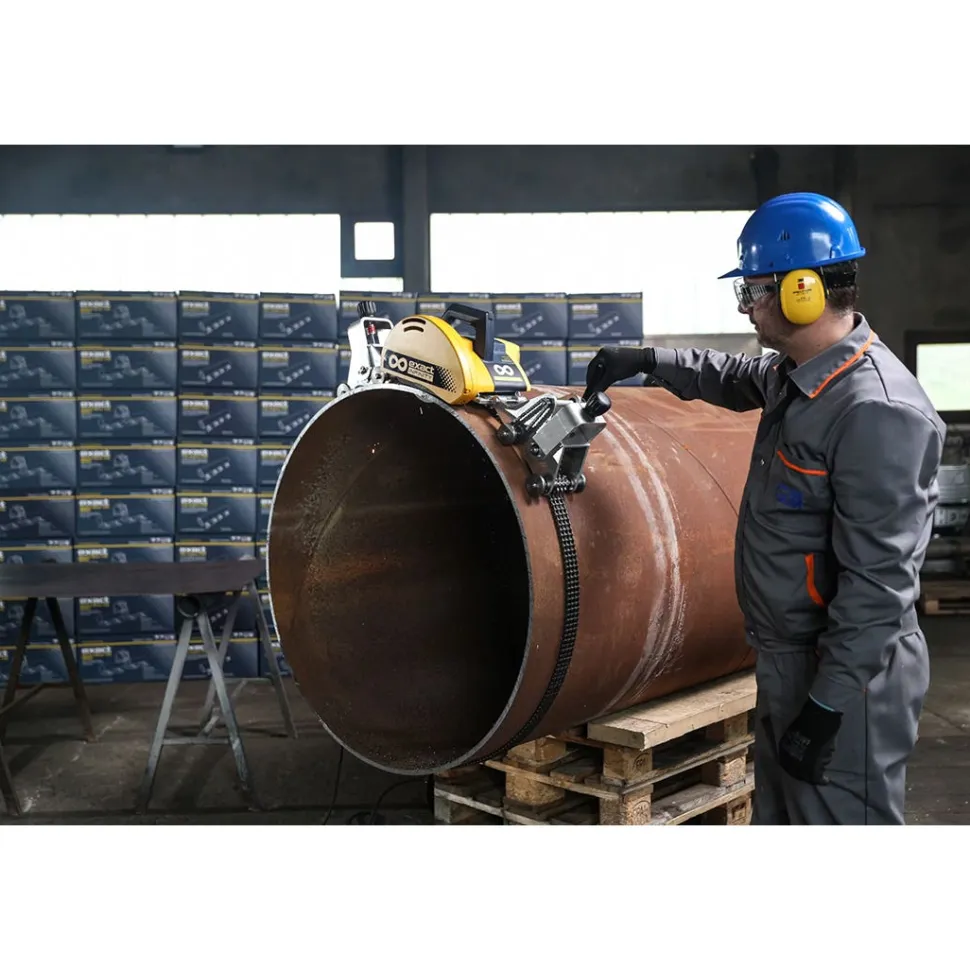

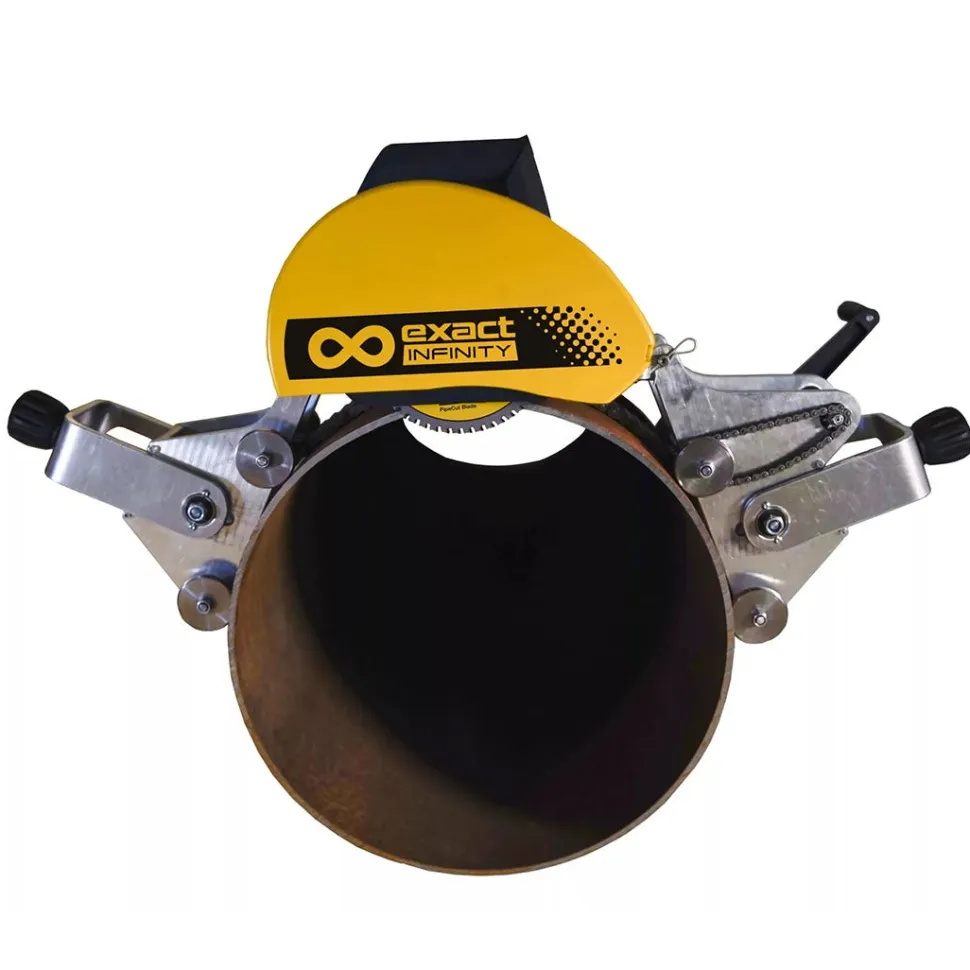

Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.

FEATURES:

• Can cut all basic materials: Steel, stainless, plastics, cast/ductile iron, all single-layer materials

• Can cut and bevel cast iron: Special blade guard and disc for this purpose is standard equipment in Infinity Cut+Bevel model. Infinity Plus can be used to

  Cut+Bevel cast/ductile iron pipes, if you order separately the needed accessories.

• Can cut multi-layer: A cutting depth adjustment mechanism that allows to cut pipes at desired cutting depth. This feature can be used on any pipe material.

• Special gearbox: Special accessory that can be connected to a power drill for even easier working.
  This is standard equipment only in Infinity Plus. For other models separately orderable.

• The standard equipment includes chains to cover from 360 mm to 1850 mm (14” – 72.83″) but additional chain can be added to cut larger diameter pipe, earning name INFINITY.

SPECIFICATIONS:

Infinity is available in (3) different models depedning on your needs

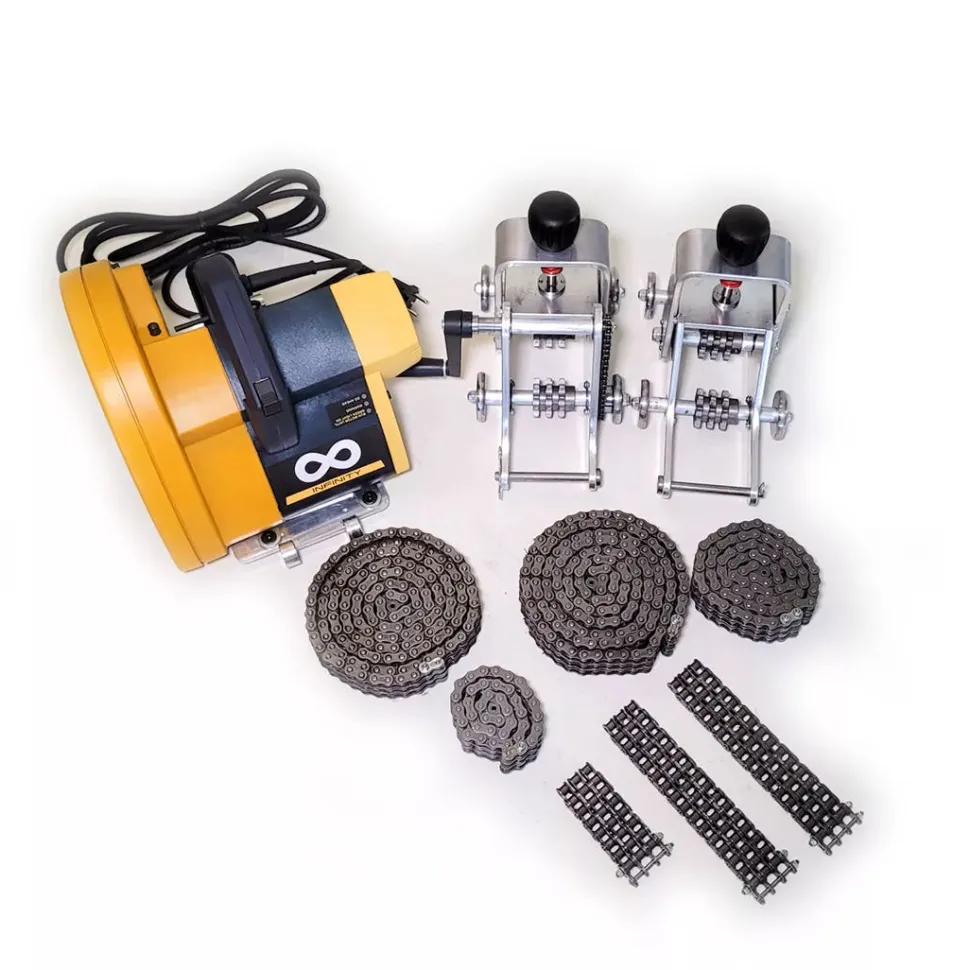

The standard equipment:

Exact PipeCut System Shoulder Bags, 2 pcs

Exact PipeCut Infinity motor unit with TCT 165 blade installed

Tensioner device

Tensioner device with crank

Chain segments for attaching the saw to pipe:

2 m, 2 pcs

1 m, 1 pc

0,5 m, 1 pc

0,2 m, 2 pcs

0,1 m, 1 pc

Operating instructions

Allen keys, 5 mm and 2 mm, attached to saw
