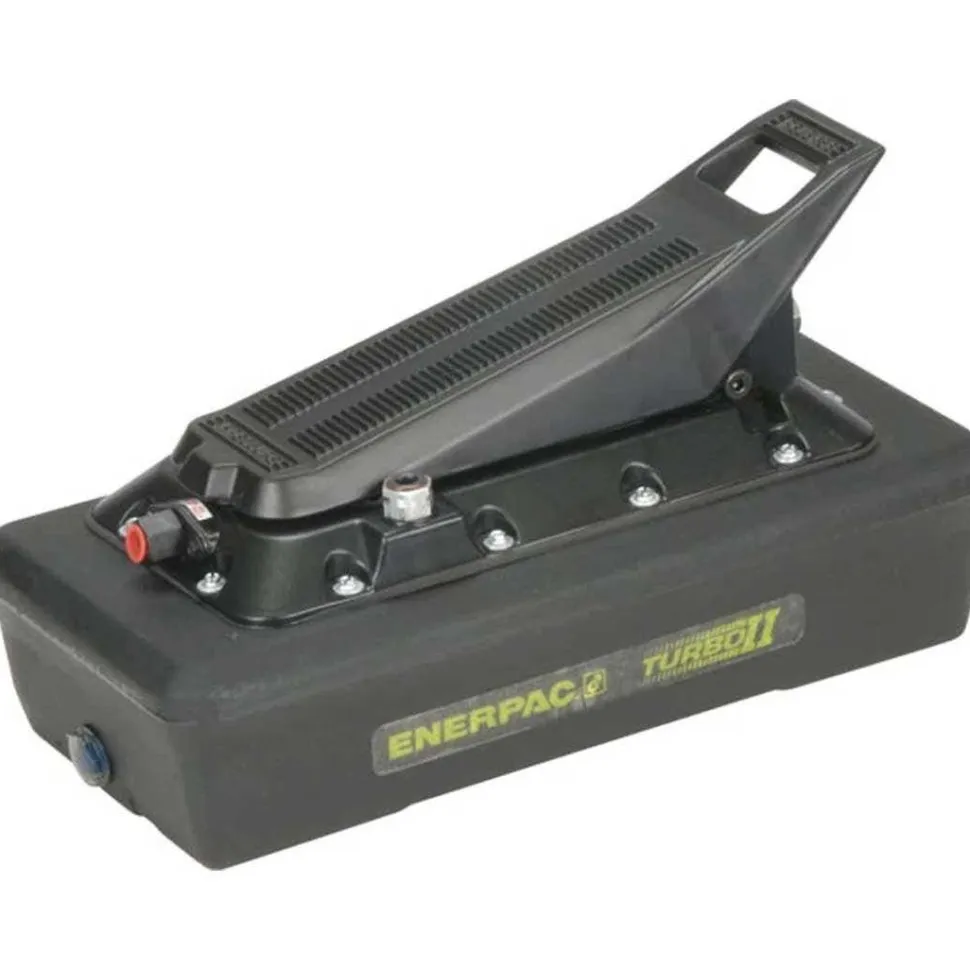

Enerpac Turbo II Air Hydraulic Pump PATG1105N
$132.99
Enerpac
Turbo II Air Hydraulic Pump PATG1105N
Enerpac PATG Hydraulic Air Pumps are foot operated and part of the Turbo II Air Pump Series. These low flow rate air over hydraulic pumps provide the power and speed needed for single acting tools and simple clamping circuits. PATG pumps are best suited to medium and lower cycle applications.
FEATURES:
- High efficiency cast aluminum air motor for increased life and reduced air consumption
- Reinforced heavy-duty reservoir for applications in tough environments
- New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
- Return-to-tank port for use in remote valve applications
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Double-acting |
| Maximum Flow at Rated Pressure | 10 in3/min |
INCLUDES:
(1) Hydraulic Pump
| News Feed Product Group | Pumps |
|---|---|
| Maximum Flow At Rated Pressure metric | 0,16 l/min |
| Air Pressure Range bar | 2,8 – 8,8 |
| Product Line | Industrial Tools |
| Output Flow Rate No Load | 60 in³/min | 1,0 L/min |
| Output Flow Rate Load | 0,16 L/min |
| Cylinder Compatability | Single-acting |
| Dimension B | 7.92 In | 201 Mm |
| Air Consumption | 12 Scfm | 340 L/min |
| Valve Function | Advance / Hold / Retract |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Weight | 22 lbs | 9,9 kgs |
| Maximum Flowat Rated Pressure | 10 in3/min |
| Maximum Flow At Rated Pressure liter | 0.16 |
| Type | Hydraulic Pump |
| Dimension L | 3.28 in | 112 mm |
| Dimension Min | 17.2 |
| Maximum Flow At Rated Pressure | 10 in³ |
| Dimension J | 5.75 In | 146 Mm |
| Country of Origin | United States |
| Usable Oil Capacity | 3770 cm³ |
| Dimension E | 4 In | 102 Mm |
| Reservoir Capacity | 3770 cm³ | 230 in³ |
| Dimension D | 9.04 In | 230 Mm |
| Sub Types | Air Pump |
| Shipping Weight | 22.2 lbs |
| Dimension M | 437 mm |
| Valve Operation | Manual |
| Maximum Flow Rate Rangesat Rated Pressure | 0 – 20 in³/min | 0 – 0,34 L/min |
| Pump Valve Type | 3-way, 3-position |
| Dimension C | 8.22 In | 209 Mm |
| Pump Power Source | Air |
| Dimension A | 15.6 In | 396 Mm |
| Output Flow Rate Load in³ Minute | 10 in |
| Dimension H | 5.08 In | 131 Mm |
| Maximum Operating Pressure Ranges Bar | 700 |
| Pump Control | Hand/Foot |
| Maximum Flow At Rated Pressure imperial | 10 in3/min |
| OPT SKU | ENP-PATG1105N |
|---|---|
| MPN | PATG1105N |
| UPC/GTIN | 662005118748 |
| Product Type | Air Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Power Method | Air/Pneumatic |
| Shipping Weight | 22.00 |
