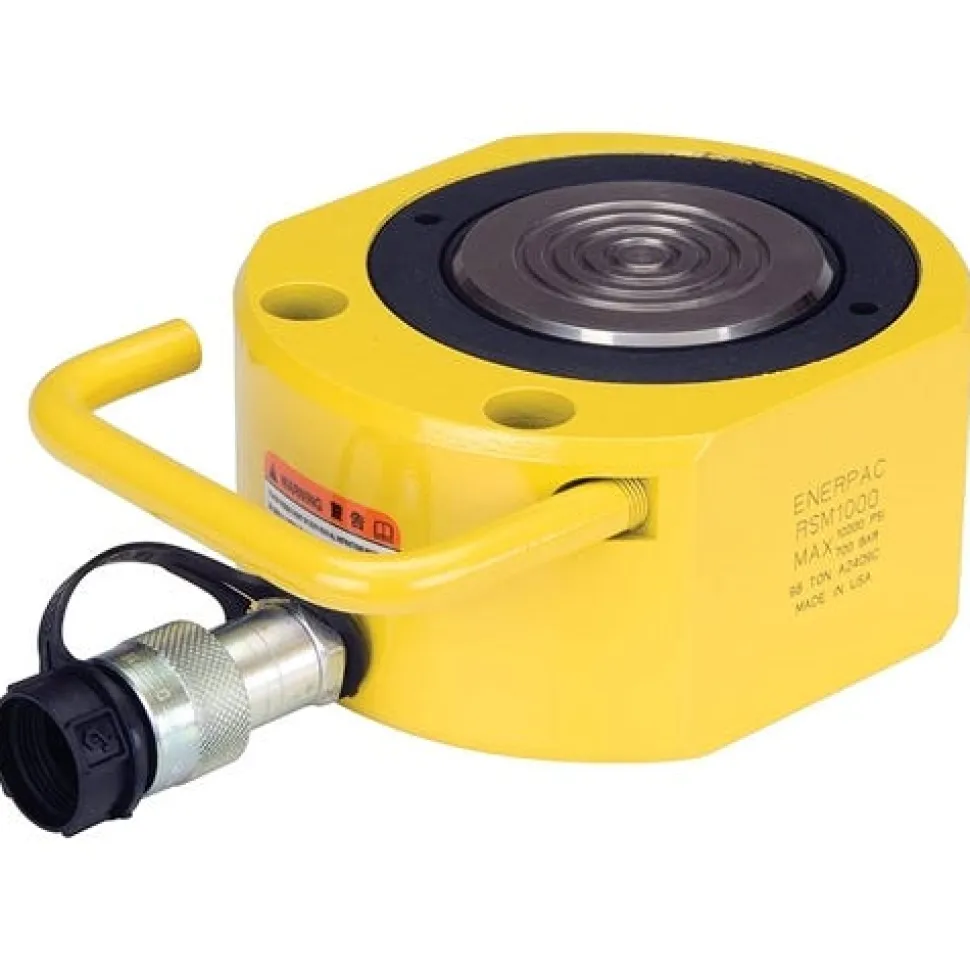

Enerpac 98.1 Ton Hydraulic .63″ Stroke Single-Acting Low Height Cylinder RSM1000
$122.99
Enerpac
98.1 Ton Hydraulic .63 Stroke Single-Acting Low Height Cylinder RSM1000
Enerpac low height cylinders provide the maximum power to height ratio. A compact; low height cylinder design is ideal for confined spaces where other cylinders will not fit.
FEATURES:
- Compact; flat design for use where other cylinders will not fit.
- Handles for easy carrying.
- Mounting holes permit easy fixturing.
- Baked enamel finish for increased corrosion resistance.
- CR400 coupler and dust cap included.
- Hard chrome plated high-quality steel plungers.
- Grooved plunger ends require no saddle.
- Single-acting spring return.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Capacity Class (tonnage) | 100 |
| Maximum Cylinder Capacity Advance (tons) | 98.1 |
| Stroke (in) | 0.63 |
| Collapsed Height A (in) | 3.38 |
| Extended Height B (in) | 4 |
| Return Type | Single-Acting; Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 19.63 |
| Oil Capacity Advance (in3) | 12.27 |
| Surface Treatment | Paint |
“
| Saddle Protrusionfrom Plunger K1 | 2 mm |
|---|---|
| Cylinder Effective Area Advance | 19.63 in² | 126,7 cm² |
| Outside Diameter D | 7.00 x 6.00 in | 178 x 153 mm |
| Plunger Type | Solid |
| Country of Origin | China |
| Plunger To Mounting Hole M | 74 mm |
| Surface Treatment | Paint |
| News Feed Product Group | Cylinders and Jacks |
| Plunger To Mounting Hole Min | 2.94 |
| Sub Types | Low Height Cylinder |
| Cylinder Class | 100 Imperial Tons |
| Base Mounting Hole Pitch U | 3 in | 76,2 mm |
| Base Mounting Hole Counter Bore Diameter | 0.812 in | 20,6 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Saddle Protrusion From Plunger K | 2 mm |
| Return Type | Single-Acting, Spring Return |
| Shipping Weight | 32.01 lbs |
| Stroke Ranges | 0 – 0.99 in | 0 – 23 mm |
| Plunger Diameter F | 3.63 in | 92,2 mm |
| Base Mounting Hole Counter Bore Depth | 0.56 in | 14,2 mm |
| Saddle Protrusionfrom Plunger K | 0.08 in |
| Plunger To Base L | 3 in | 76 mm |
| Product Line | Industrial Tools |
| Oil Capacity Advance | 12.27 in³ | 203 cm³ |
| Cylinder Bore Diameter E | 5 in | 127,0 mm |
| Extended Height B | 4 in | 101 mm |
| Base Mounting Hole Diameter V | 0.53 in | 13,5 mm |
| Collapsed Height A | 3.38 in | 85 mm |
| Upsell item | CUSP100 |
| Cylinder Material | Steel |
| Type | Hydraulic Cylinders |
| Collapsed Height A Ranges | 0 – 4.99 in | 0 – 127 mm |
| Baseto Advance Port H | 0.75 in | 19 mm |
| Weight | 32 lbs | 14,5 kgs |
| Maximum Cylinder Capacity Advance | 98.1 Imperial Tons | 887 kN |
| OPT SKU | ENP-RSM1000 |
|---|---|
| MPN | RSM1000 |
| UPC/GTIN | 662005302406 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 1″ |
| Tonnage | 100-Ton |
| Shipping Weight | 33.00 |
