Enerpac 5 Ton Hydraulic Cylinder & Hand Pump Set w/ 22 Cylinder Attachments MSFP10

Enerpac

5 Ton Hydraulic Cylinder & Hand Pump Set w/ 22 Cylinder Attachments MSFP10

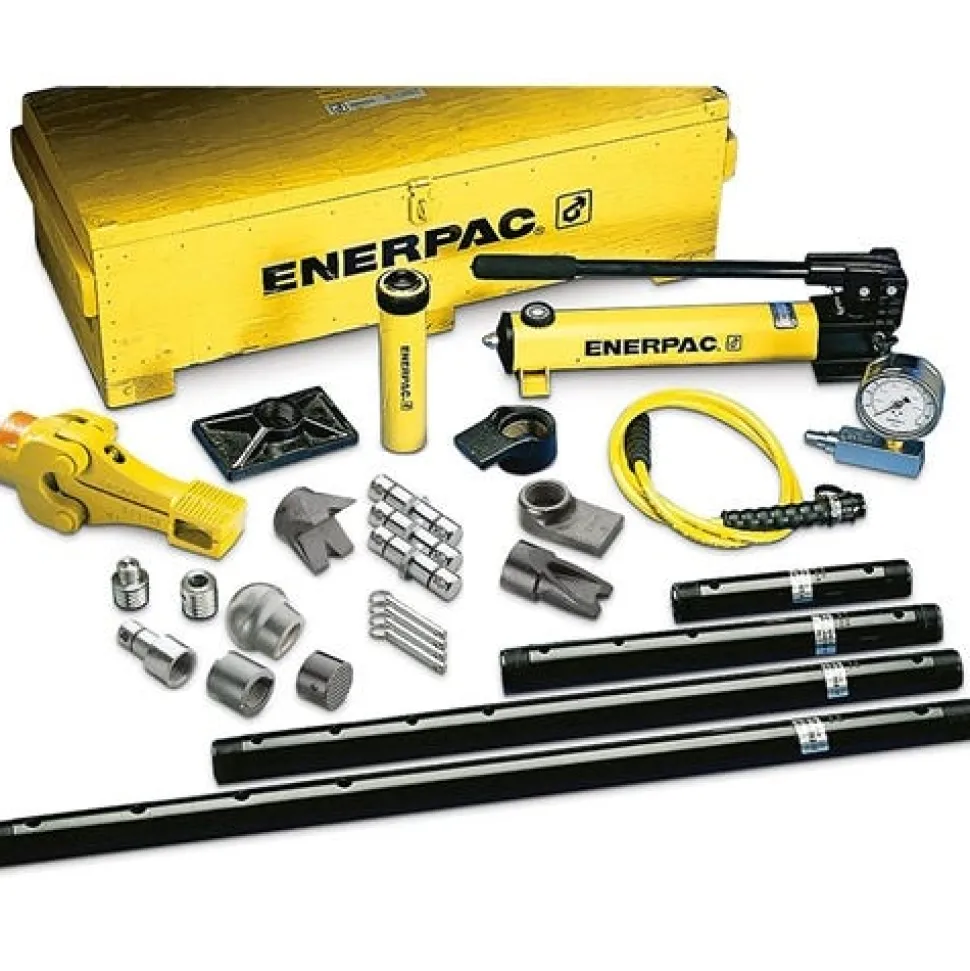

This Enerpac MSFP10 maintenance set is a complete assortment of accessories for hydraulic power tools used for pushing; pulling; lifting; pressing; or clamping. It includes an Enerpac pump; hose; cylinder; and gauge. It comes with 22 lock-on or threaded attachment components; and maintains a 5-ton capacity when using these attachments.

FEATURES:

• Using these sets allows you to quickly configure a unique tool to meet your most difficult jobs.
• Lock-on or threaded connectors.
• Complete set for almost every maintenance application.
• When cylinders are used with maintenance set attach ments or components; the maximum system pressure must be limited to half the rated pressure (5;000 psi).
• If no attachments are being used; capacity is double these values. Maximum operating pressure is 10;000 psi.
• Only use attachments provided with set. Non-Enerpac attachments and longer extension tubes will reduce column strength; potentially creating unsafe conditions.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	5;000
Stroke (in)	6.13
Collapsed Height (in)	9.75
Number of Attachment Components	22

INCLUDES:

• A10 5 Ton RC Threaded Connector Cylinder Attachment
• A128 5 Ton RC Rubber Flex-Head Cylinder Attachment
• A129 5 Ton RC Wedge Head Cylinder Attachment
• A13 5 Ton RC Threaded Adaptor Cylinder Attachment
• A14 5 Ton RC Flat Base Cylinder Attachment
• A15 5 Ton RC 90 Degree V-Base Cylinder Attachment
• A16 5 Ton RC Lock Pin Cylinder Attachment
• A18 5 Ton RC Serrated Saddle Cylinder Attachment
• A20 5 Ton RC Collar Toe Cylinder Attachment
• A21 5 Ton RC Base Cylinder Attachment
• A6 5 Ton Threader Plunger Toe Cylinder Attachment
• CW166 Wood Storage Box
• G2535L Hydraulic Pressure Gauge
• GA3 Guage Adaptor
• HC7206 6′ Thermo-Plastic High Pressure Hydraulic Hose
• MZ1050 5 Ton RC Lock-on Connector Cylinder Attachment
• MZ1052 5 Ton RC Female Lock-on Adaptor Cylinder Attachment
• P392 Lightweight Hydraulic Hand Pump
• RC106 11.2 Ton Hydraulic 6.13 Single Acting General Purpose Cylinder
• WR5 1 Ton Hydraulic Wedgie & Spread Cylinder

“
